Overdrive Clutch Hub and Sun Gear Installation

Overdrive Clutch Hub and Sun Gear Installation

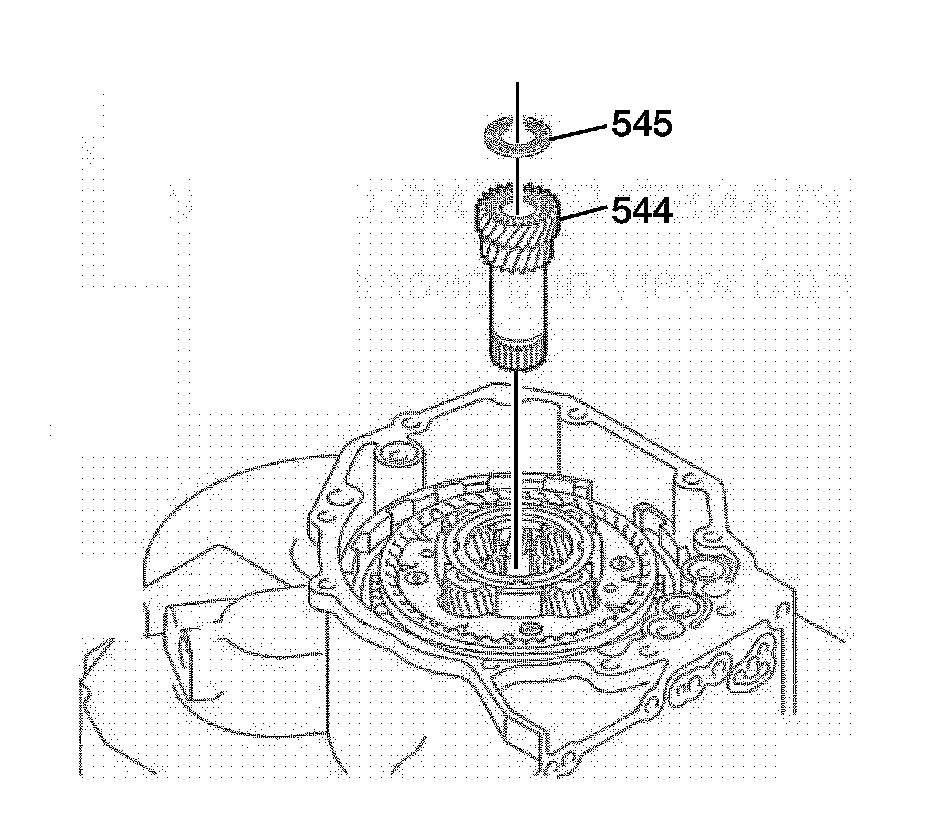

1. Place the sun gear thrust bearing assembly (545) with grease on the sun gear (544).
2. Install the sun gear (544).

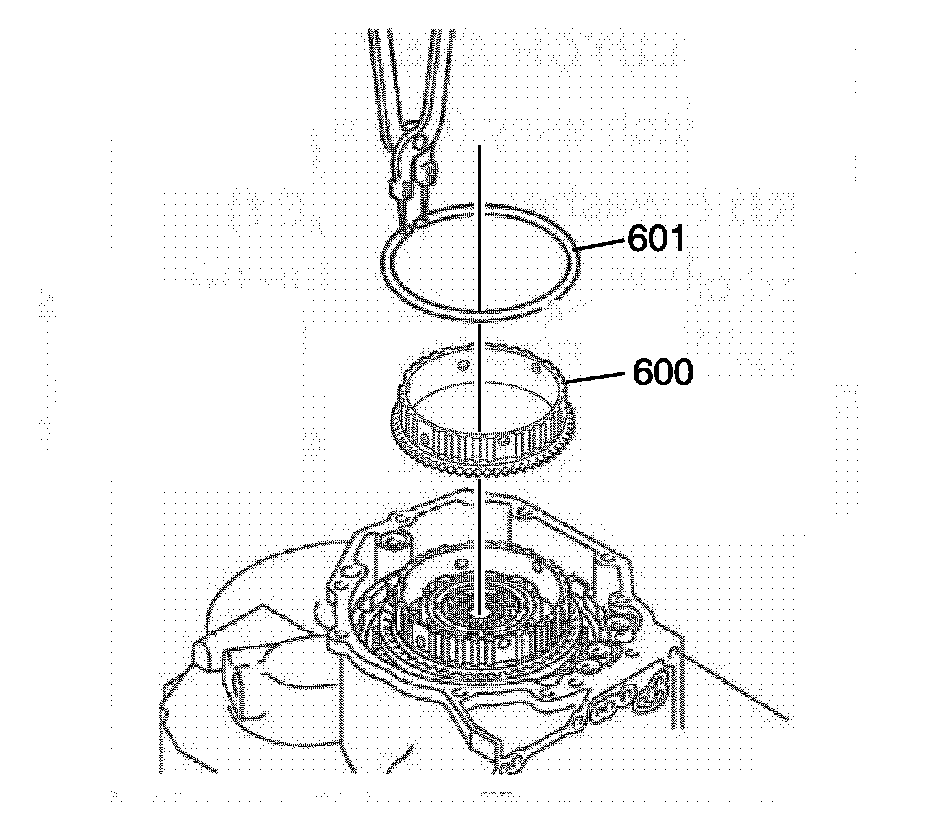

3. Install the overdrive clutch hub (600).
4. Using snap ring pliers, install the overdrive clutch hub retaining ring (601).
