Output Gear Assembly Installation



Output Gear Assembly Installation

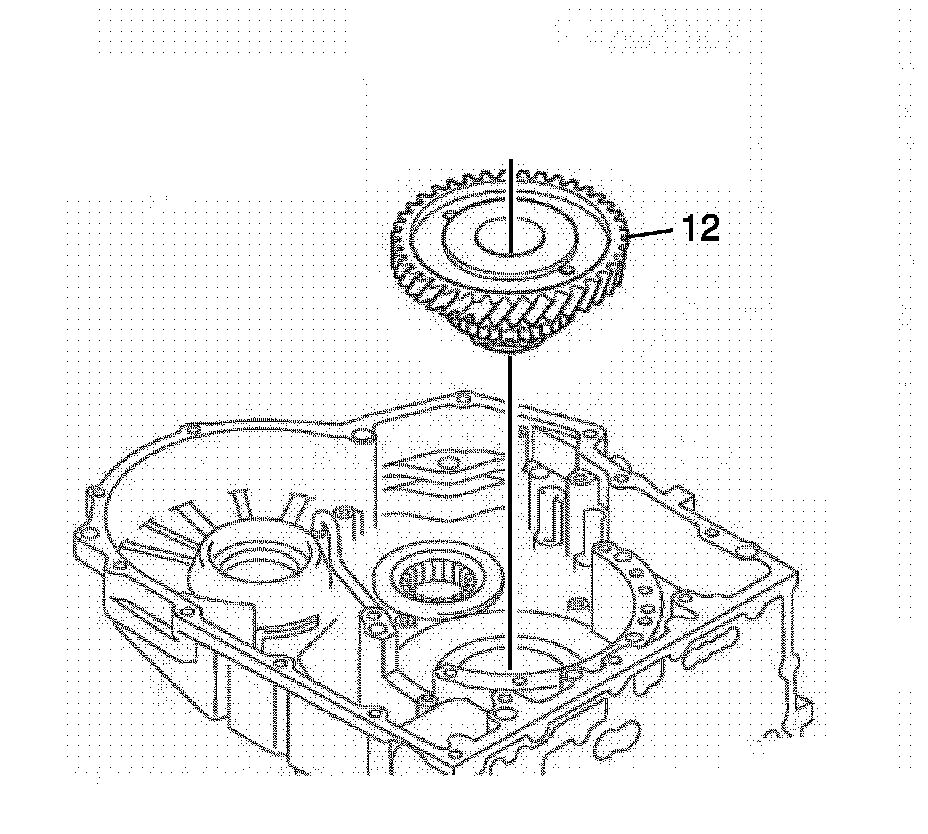

1. Install the output gear assembly (12) into the transmission case assembly.





Important: Do not spread the ring ends more than is necessary.

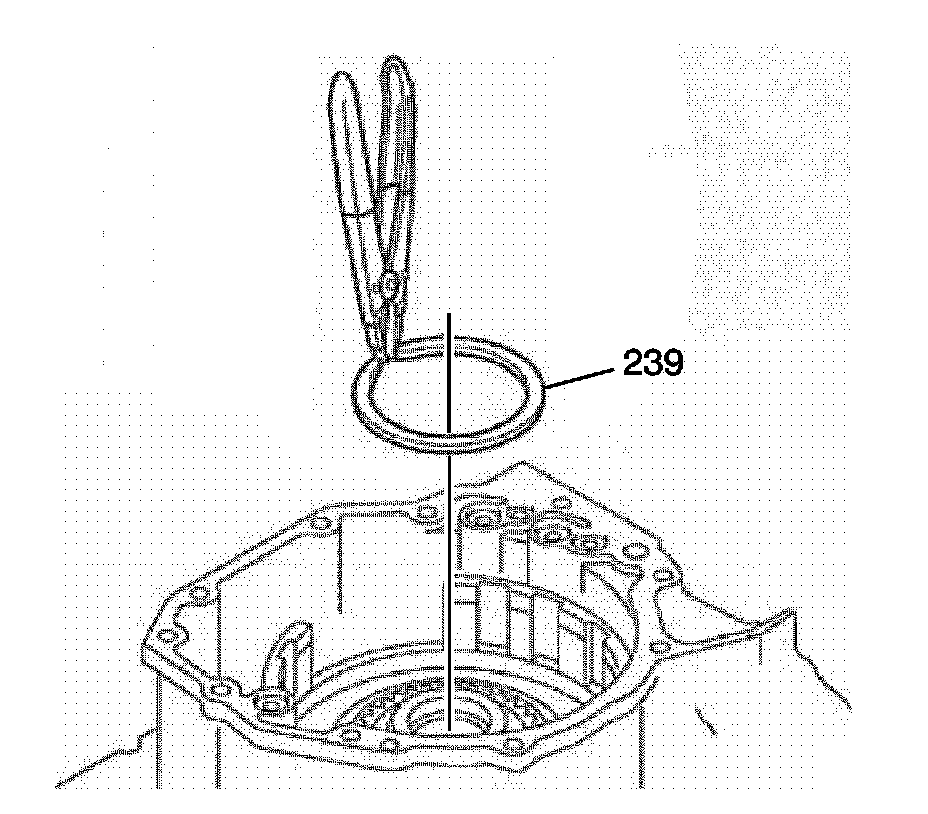

2. Using snap ring pliers, install the output gear retaining ring (239).
