Lube Apply Tube Installation

Lube Apply Tube Installation






Important: Be careful not to bend or damage the tube.

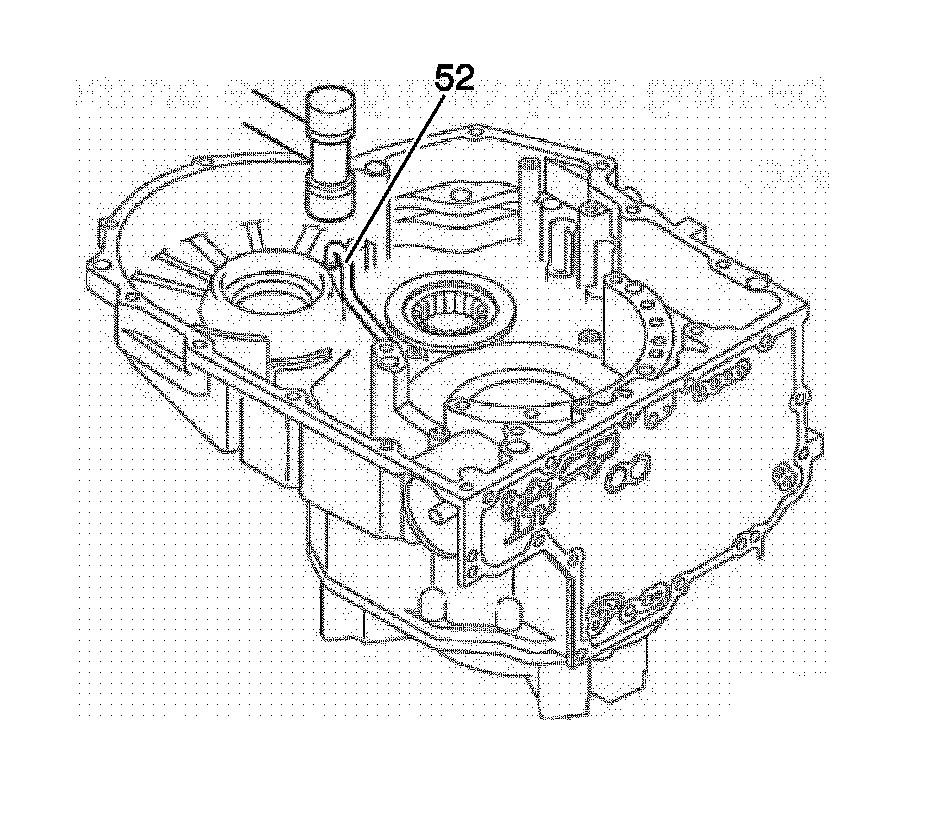

1. Using a plactic hammer, tap the apply tube (52) in the case.





Notice: Refer to Fastener Notice (Fastener Notice) .

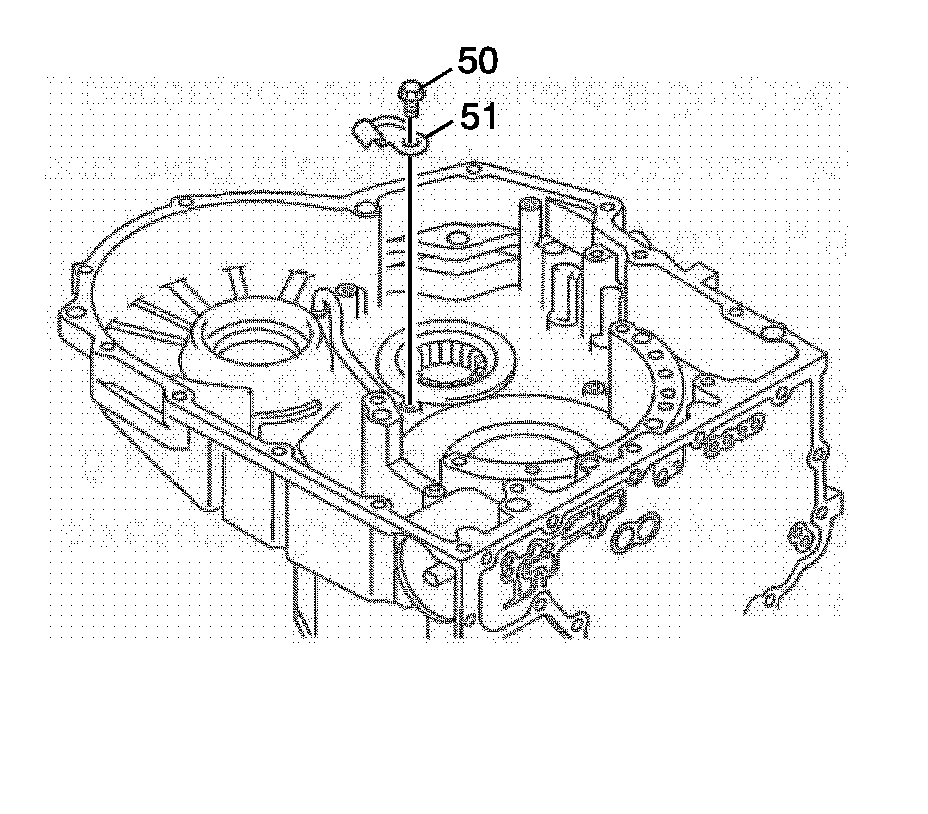

2. Install the apply tube retainer (51) and 1 apply tube retainer bolt (50).

Tighten bolt to 5.4 N.m (48 lb in).
