Front Differential Bearing Race and Differential Bearing Shim Installation

Front Differential Bearing Race and Differential Bearing Shim Installation


Special Tools
* DT 46415 Driver
* EN 46342 Driver Handle

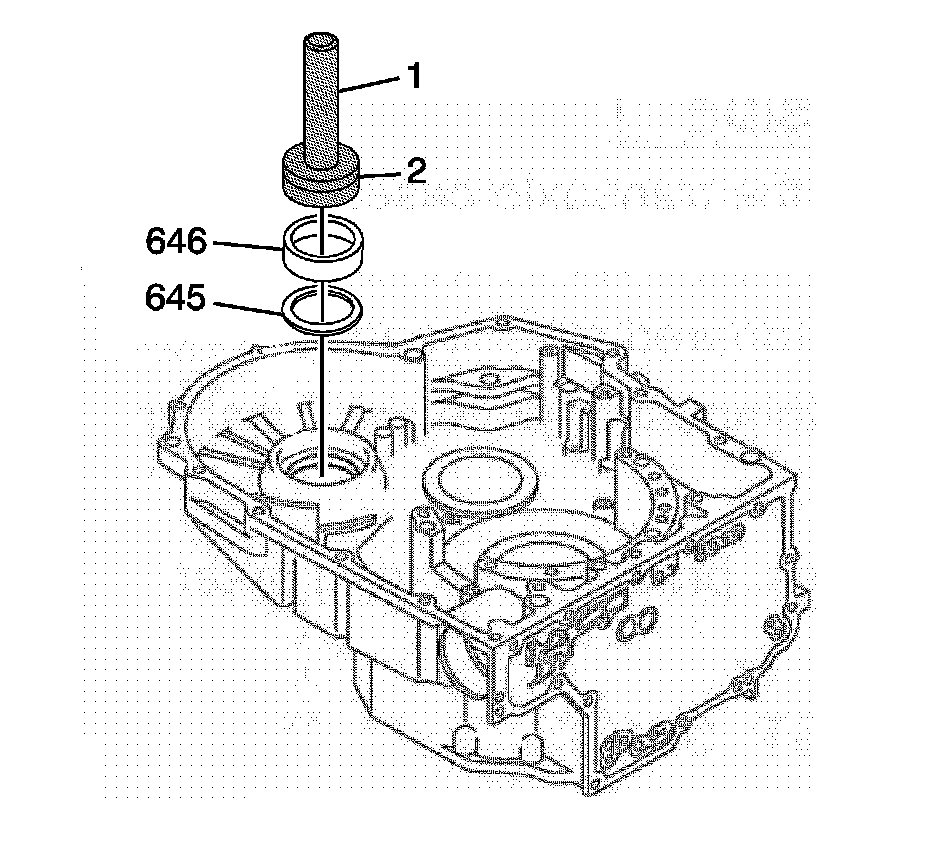

1. Install the front differential carrier bearing shim (645).
2. Using DT 46415 (2) and EN 46342 (1) install the front differential bearing race (646).
