Forward Clutch Assembly Disassemble

Forward Clutch Assembly Disassemble


Special Tools
* J 23327 Clutch Spring Compressor
* J 45124 Removal Bridge

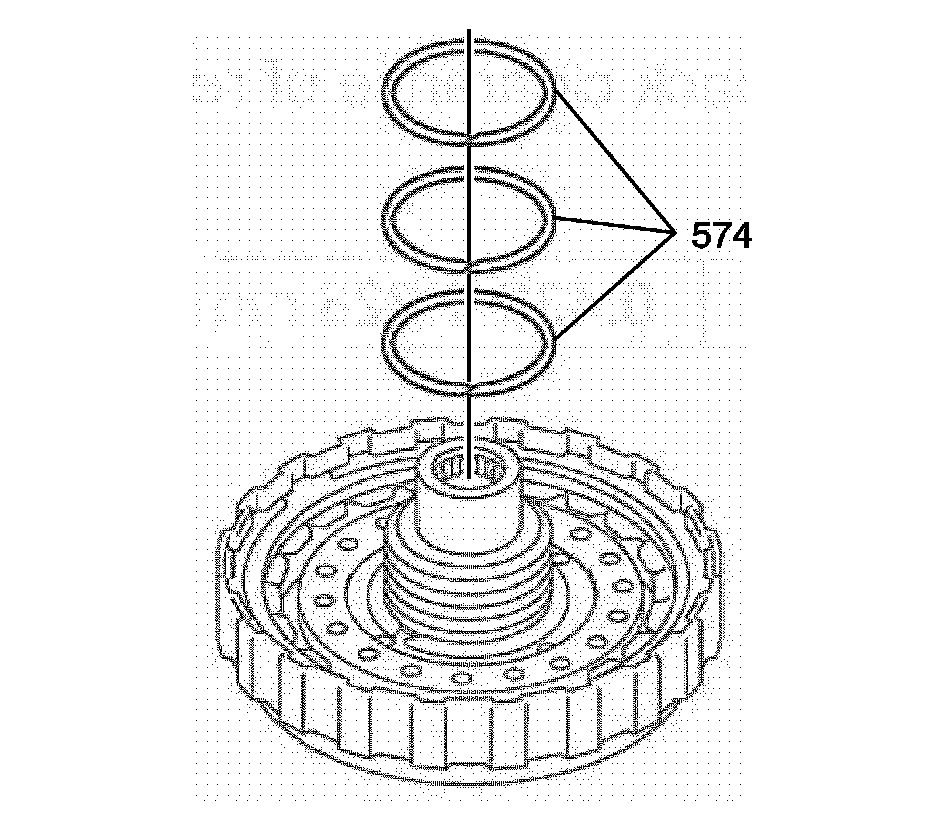

1. Remove the 3 forward clutch housing seals-slotted (574).

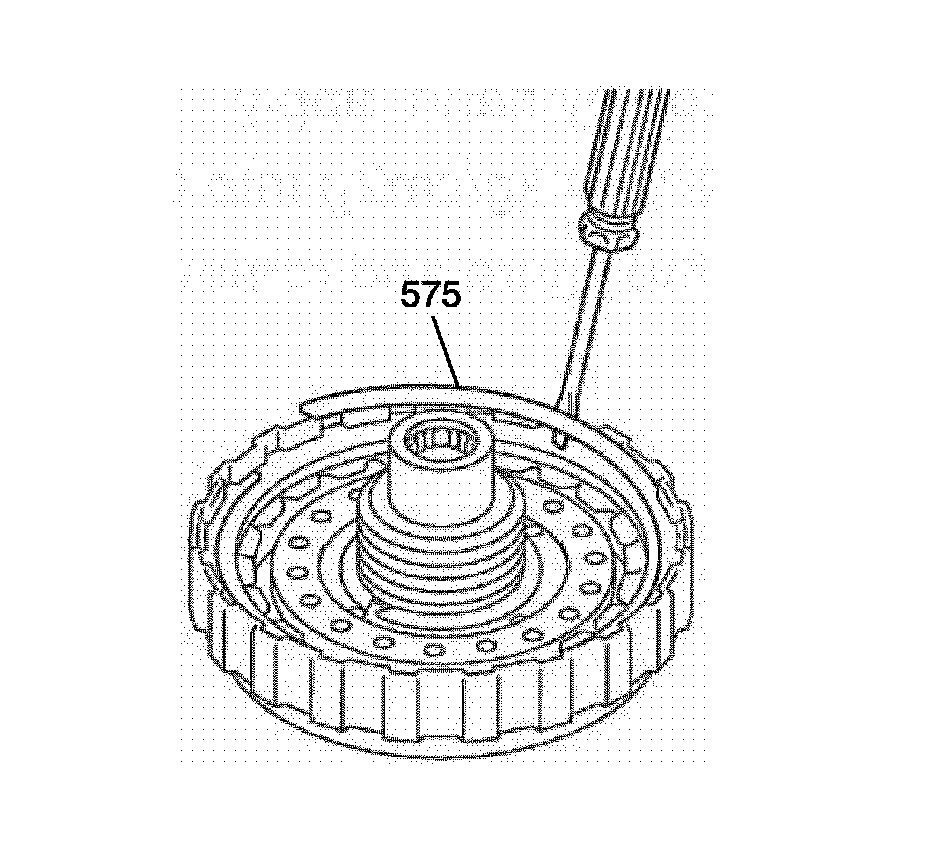

2. Remove the forward clutch backing plate retaining ring (575) with a screwdriver.

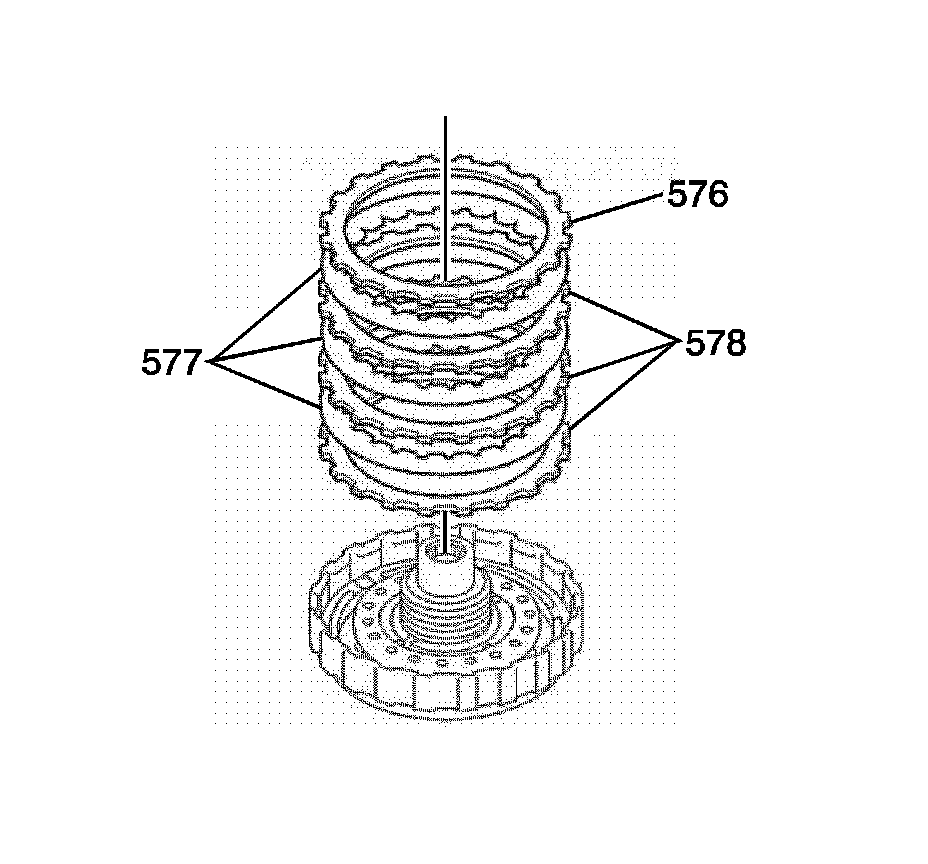

3. Remove the forward clutch backing plate (576), forward clutch plate assembly-fiber discs (577) and steel plates (578).

Important: Prepare NEW clutch discs by soaking them at least 2 hours in ATF.


4. Inspect the sliding surface of discs and plates are not worn or burnt. If necessary, replace them.

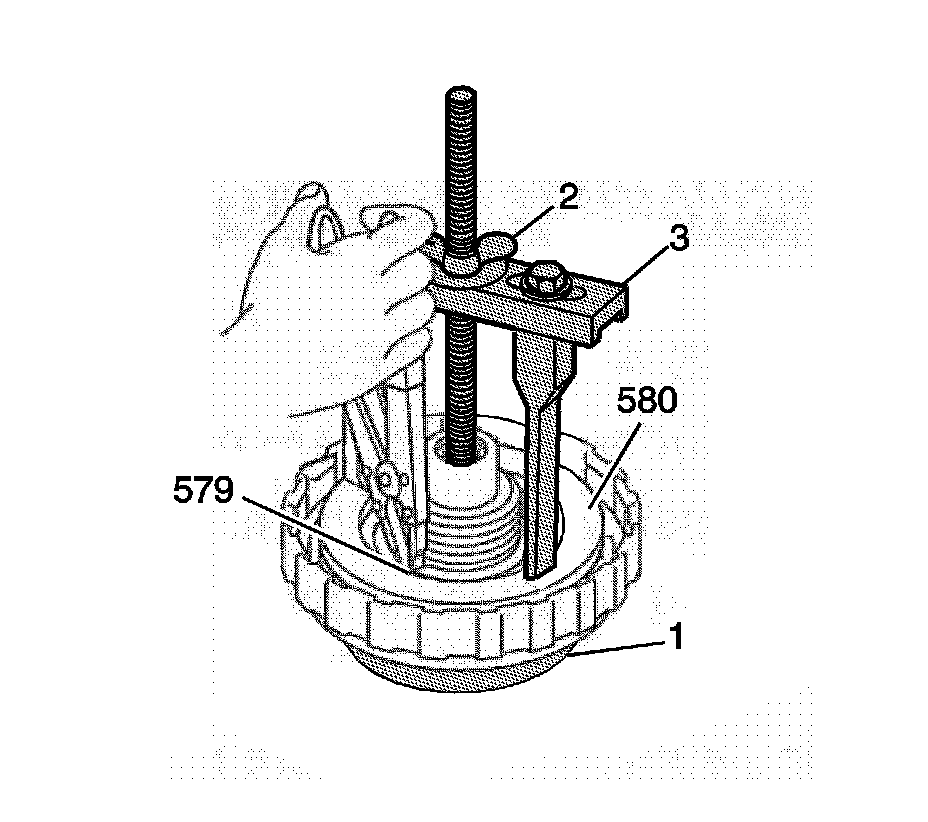

5. Using the bridge and legs of the J 45124 (3) with the forcing screw of the J 23327 (2) and J 21420-2 (1) plate, which is part of J 23327 , compress the forward clutch piston return spring assembly (580) until the forward clutch piston return spring retaining ring (579) is accesible.
6. Remove the forward clutch piston spring retaining ring (579).

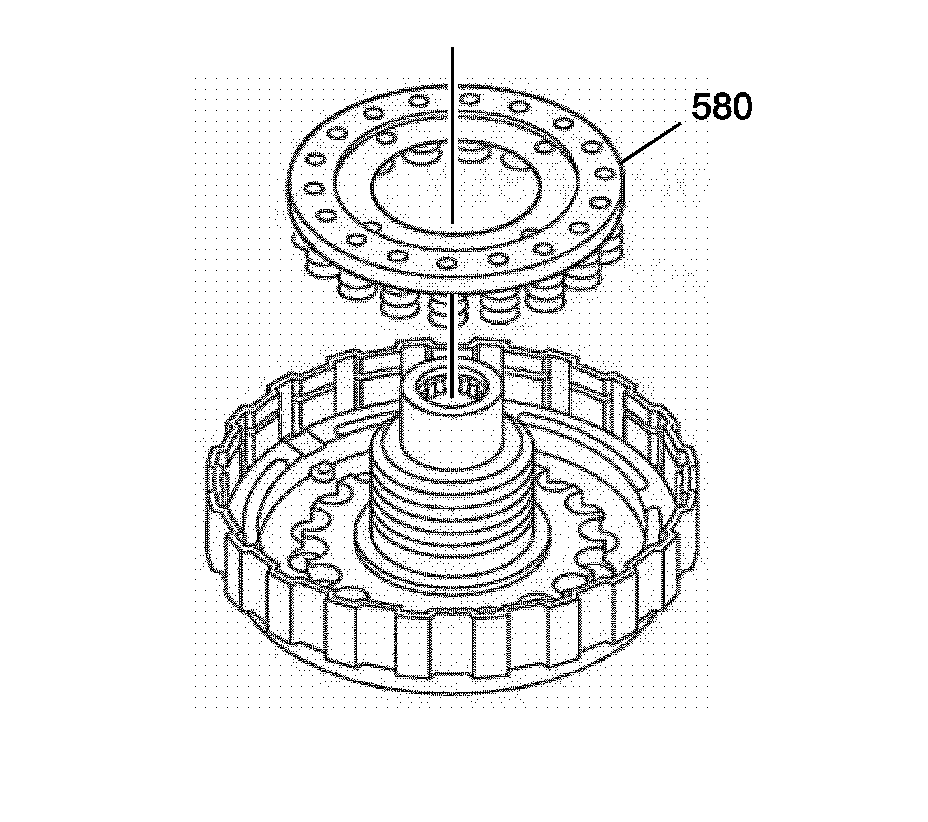

7. Remove the forward clutch piston return spring assembly (580).
8. Inspect the springs for any damage.





Important: Be careful not to damage the seal rings in the rear cover.

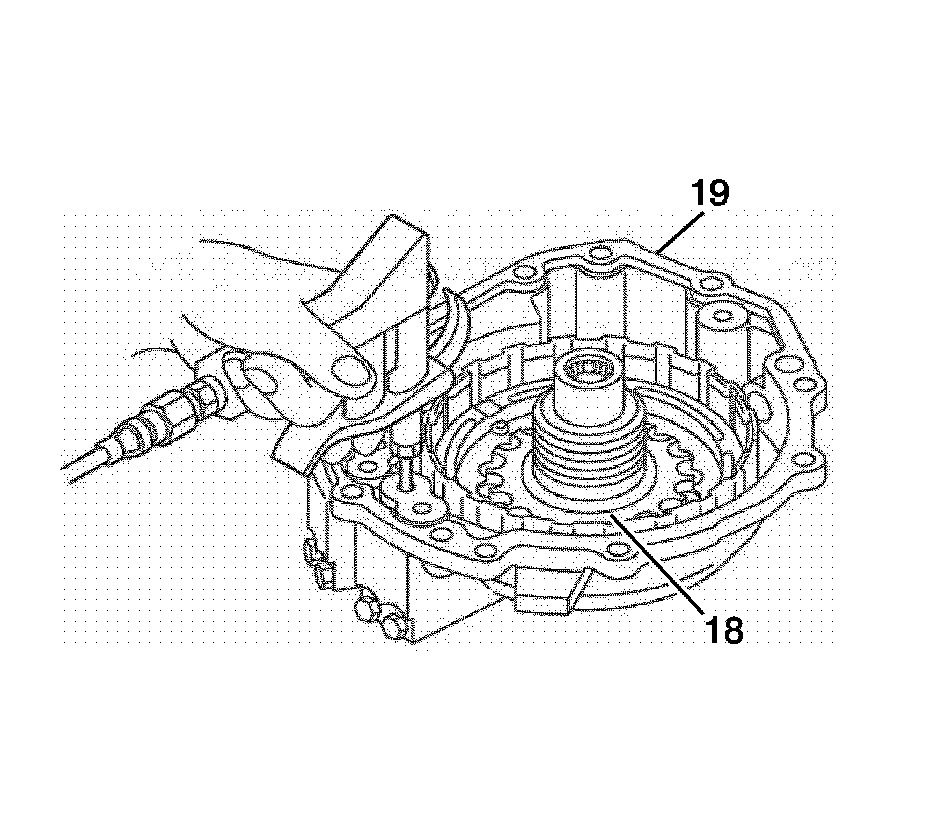

9. Install the forward clutch assembly (18) into the transmission case cover (19).
10. While pushing the forward clutch piston by hand, apply compressed air 392 KPa (56 psi) into the fluid passage as shown in the figure and remove the forward clutch piston (583).

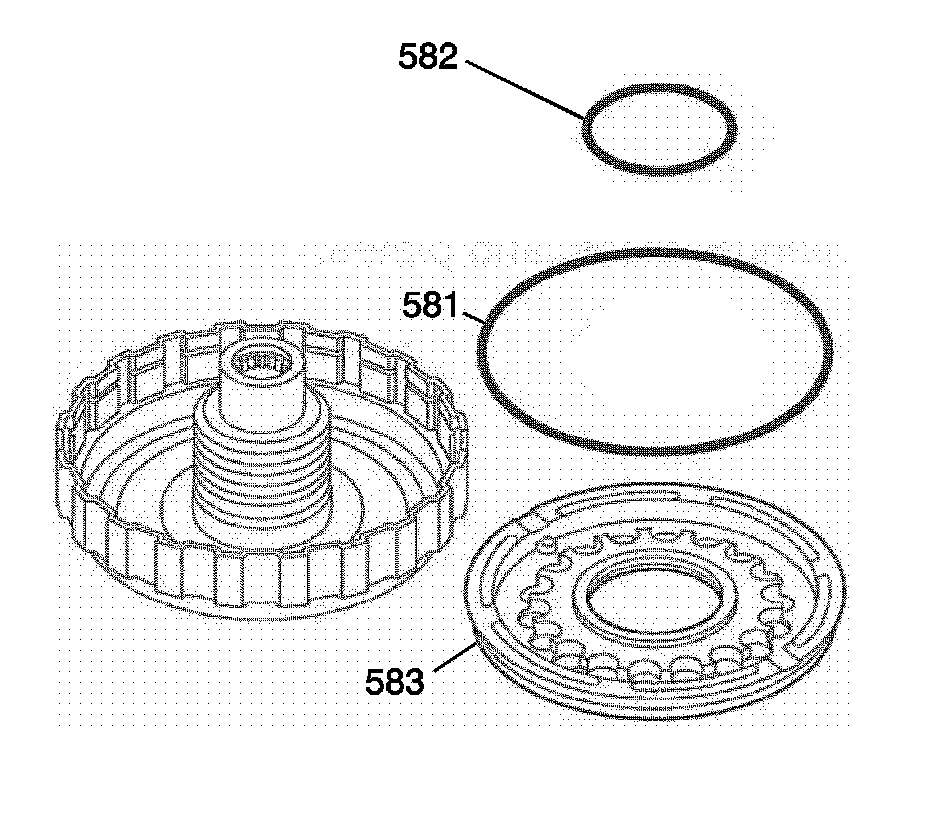

11. Remove the forward clutch piston inner and outer seals (582, 581) from the forward clutch piston.
