2-4 Band Installation



2-4 Band Installation

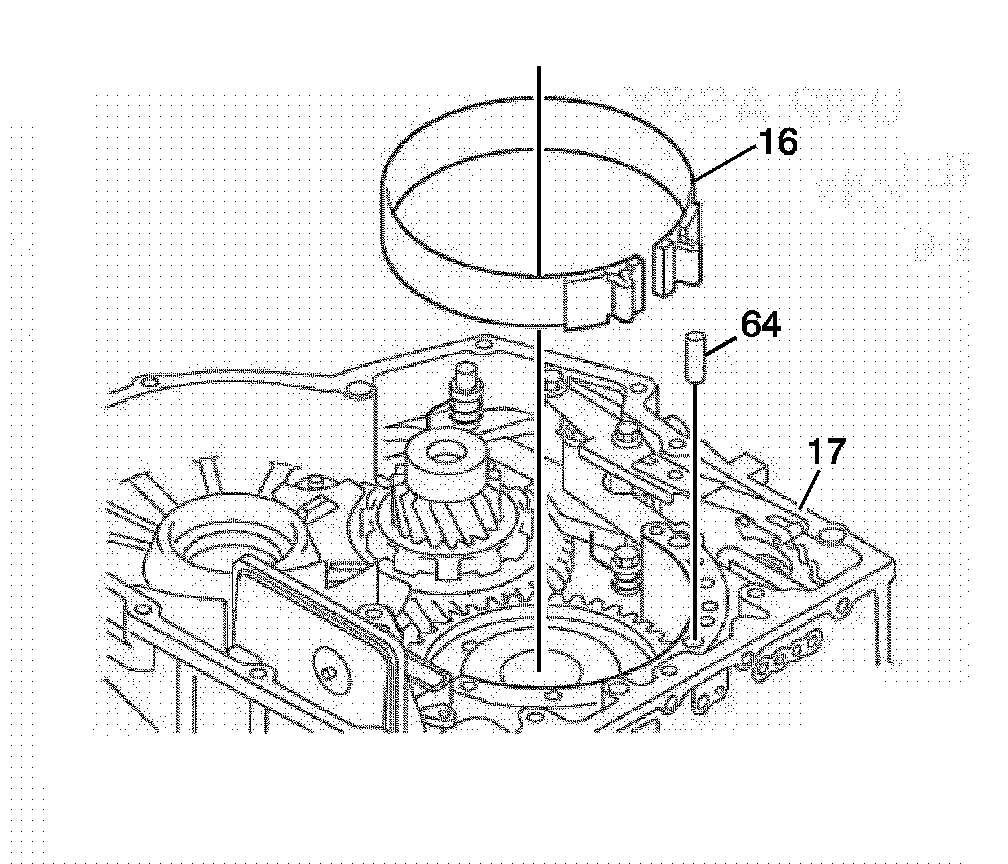

1. Install the 2nd and 4th gear band anchor pin (64).
2. Install the 2nd and 4th gear band assembly (16) into the transmission case assembly (17).
