Power Window Switch: Diagrams



Component Connector End Views

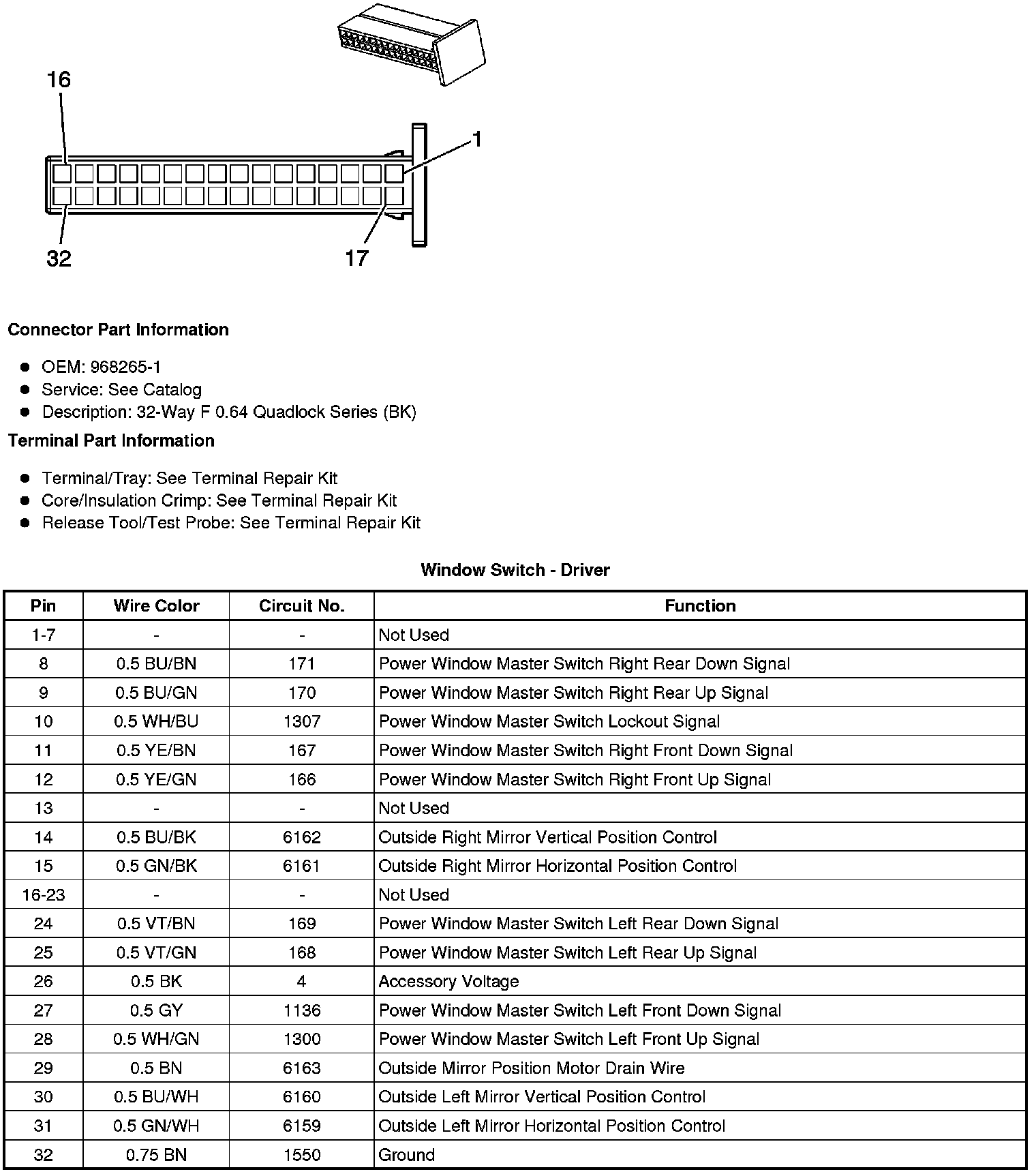

Window Switch - Driver

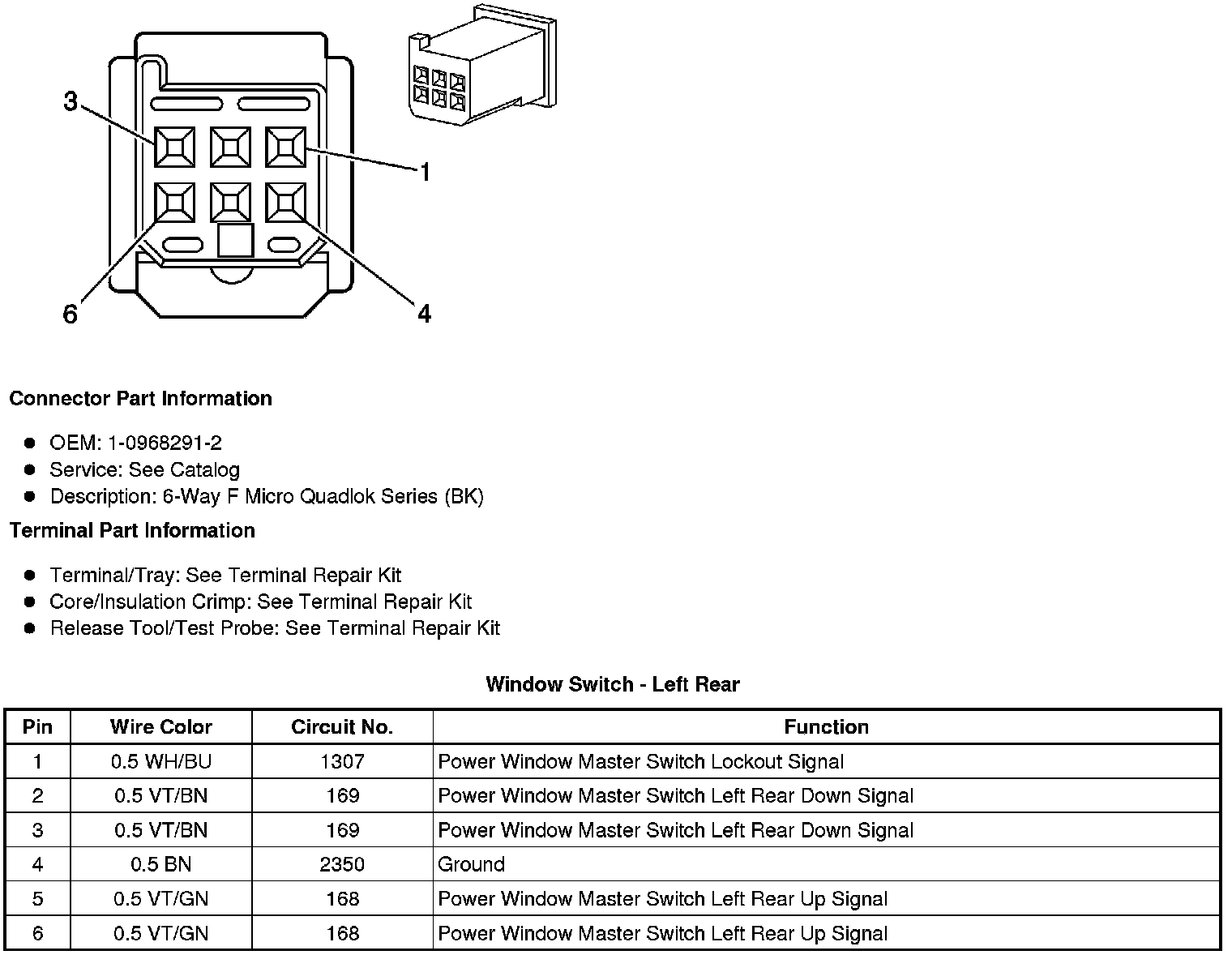

Window Switch - Left Rear

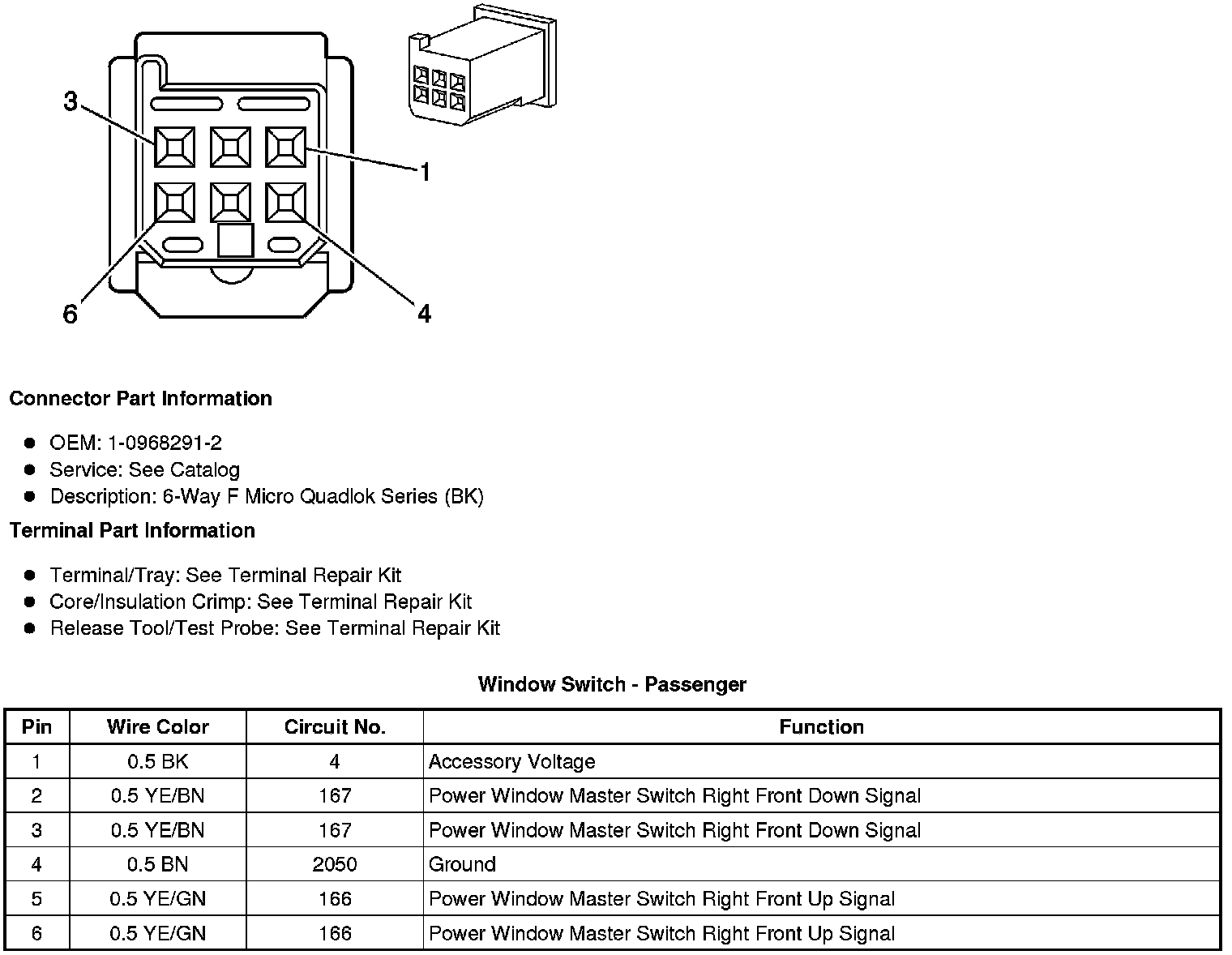

Window Switch - Passenger






Window Switch - Right Rear
