Brake Light Switch: Diagrams



Component Connector End Views

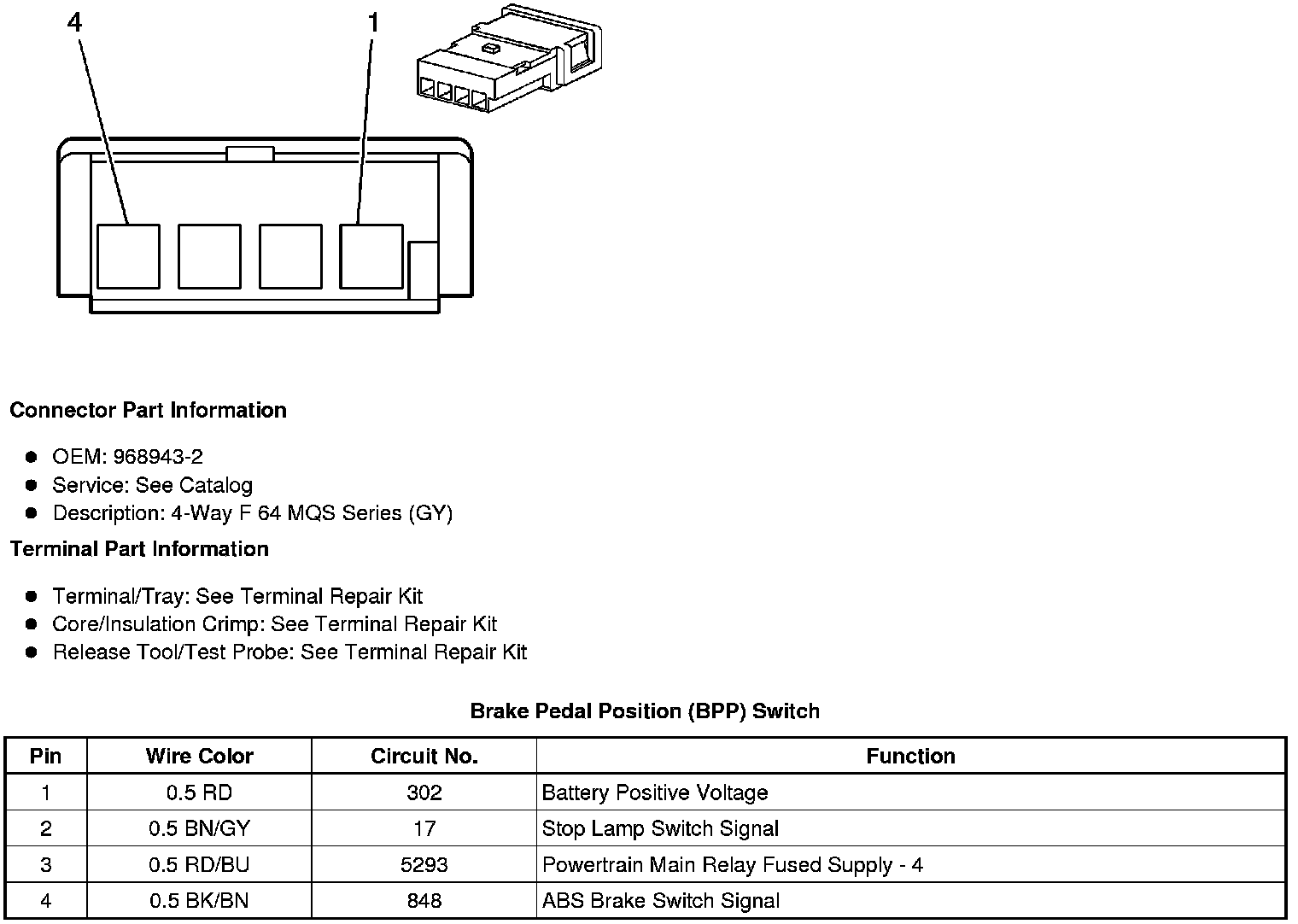

Brake Pedal Position (BPP) Switch







Component Connector End Views

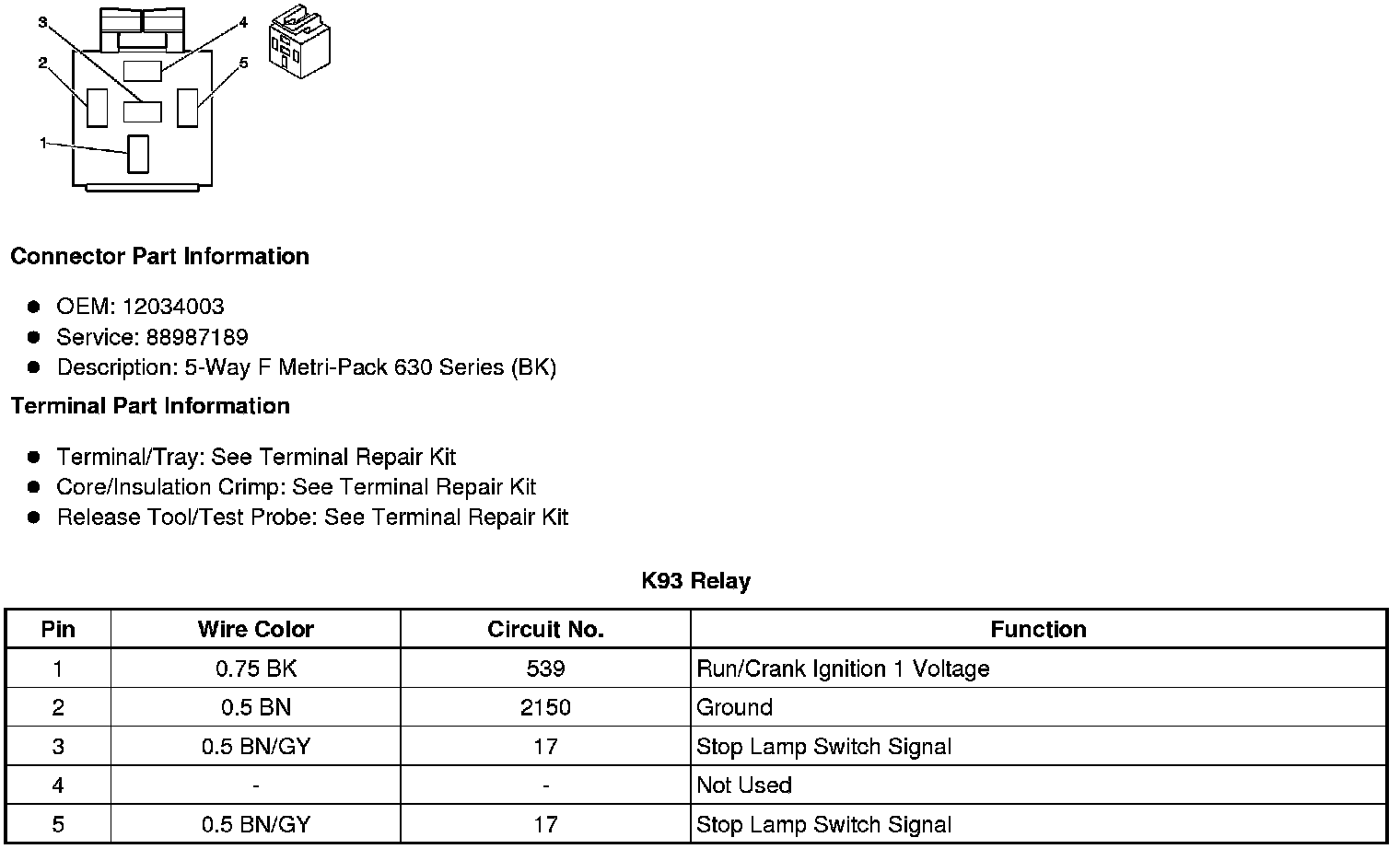

K93 Relay
