Variable Induction Control Valve: Diagrams



Component Connector End Views

Intake Manifold Runner Control (IMRC) Solenoid Valve

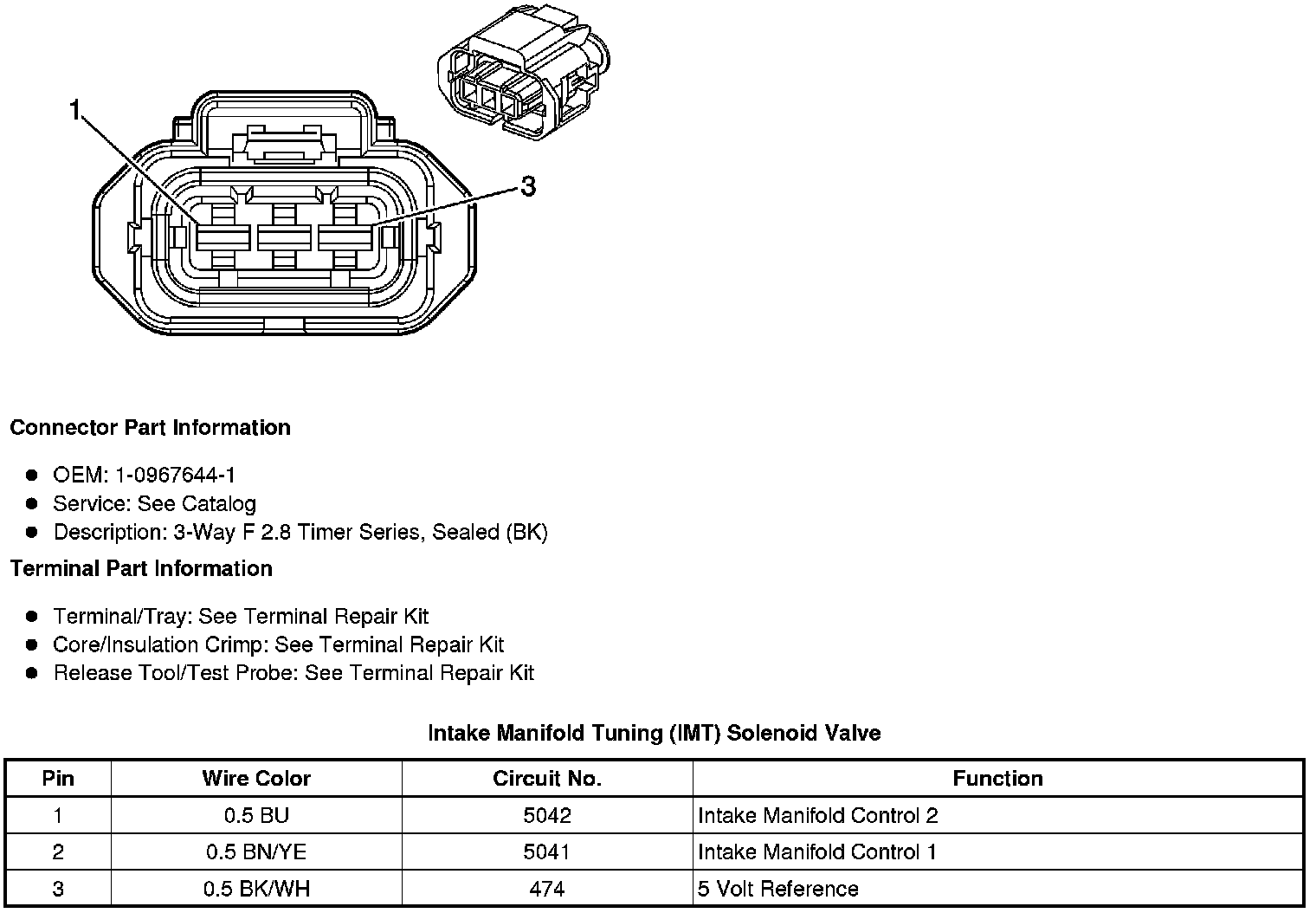

Intake Manifold Tuning (IMT) Solenoid Valve
