Fuel Rail: Service and Repair

Fuel Injection Fuel Rail Wiring Harness Replacement

Removal Procedure

Important: Replace or repair wiring harnesses observing the safety regulations of electrics/electronics.



Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution) .
1. Disconnect the battery.

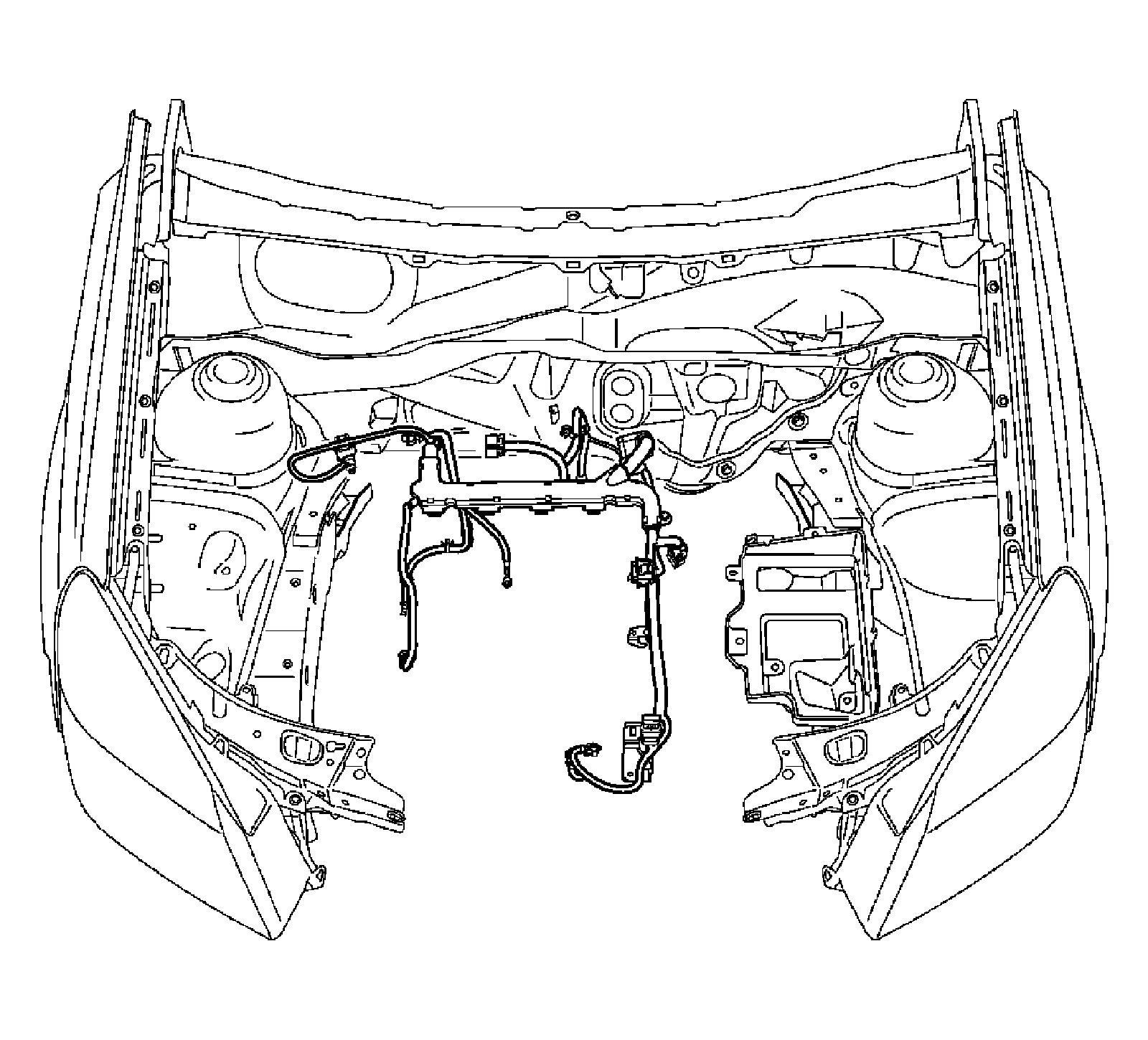

2. Remove the wiring harness for fuel injection.



Installation Procedure

1. Install the fuel injection wiring harness.
2. Connect the battery.
3. For programming procedures, refer to Control Module References (Programming and Relearning) .
