Connector Views



Component Connector End Views

Fuel Injector 1






Fuel Injector 2






Fuel Injector 3

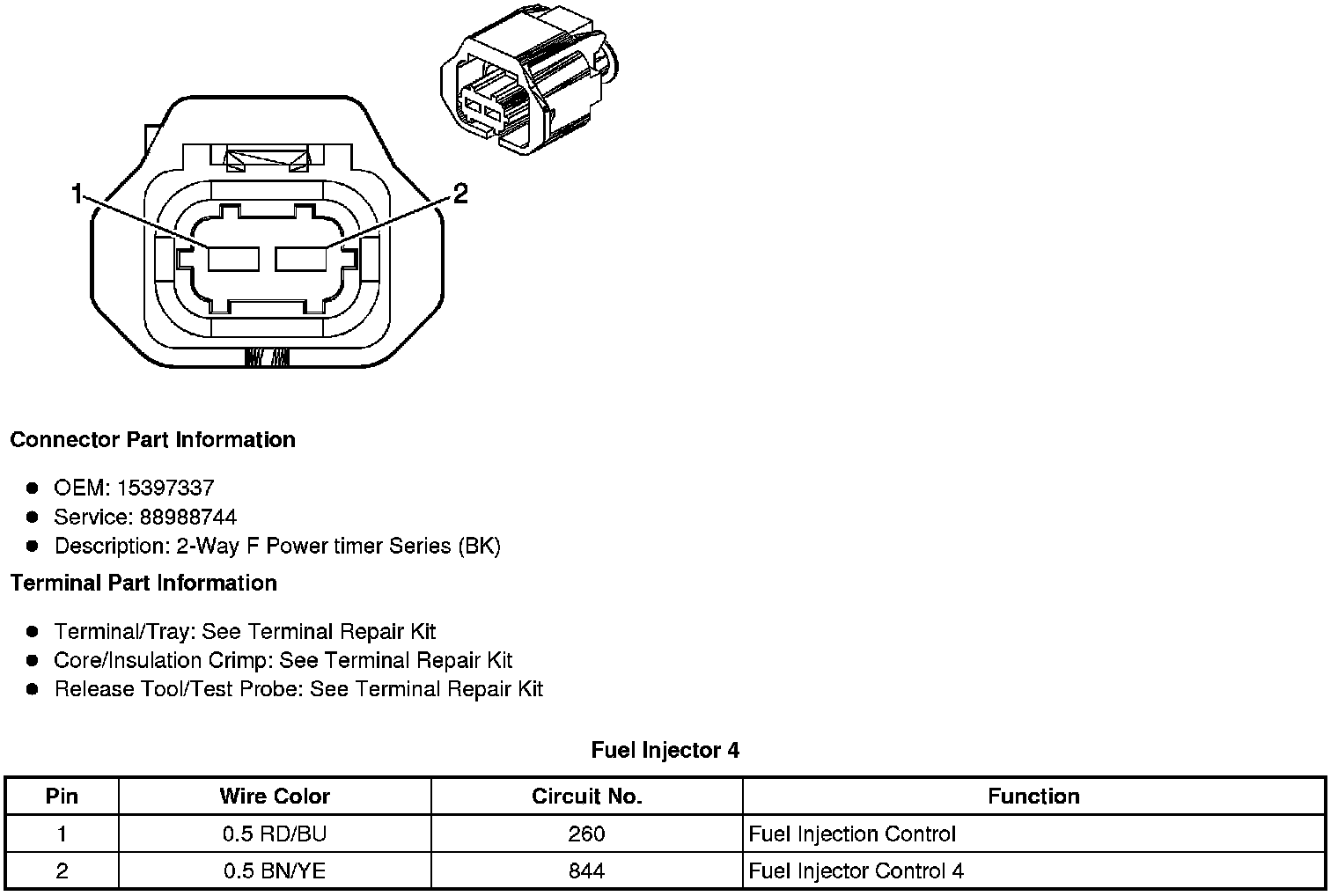

Fuel Injector 4
