Marker Lamp: Diagrams



Component Connector End Views

Side Marker Lamp - Left Front

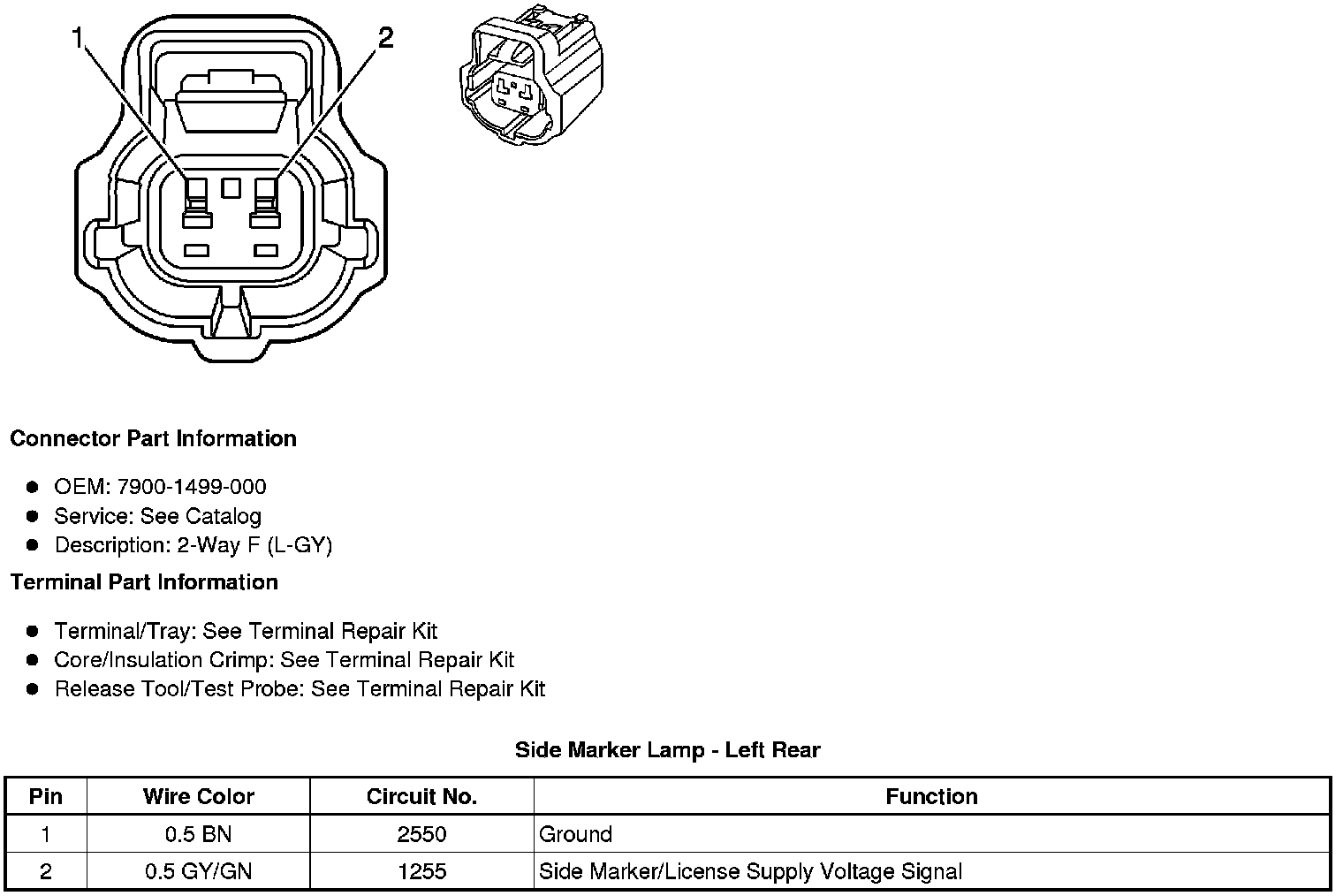

Side Marker Lamp - Left Rear

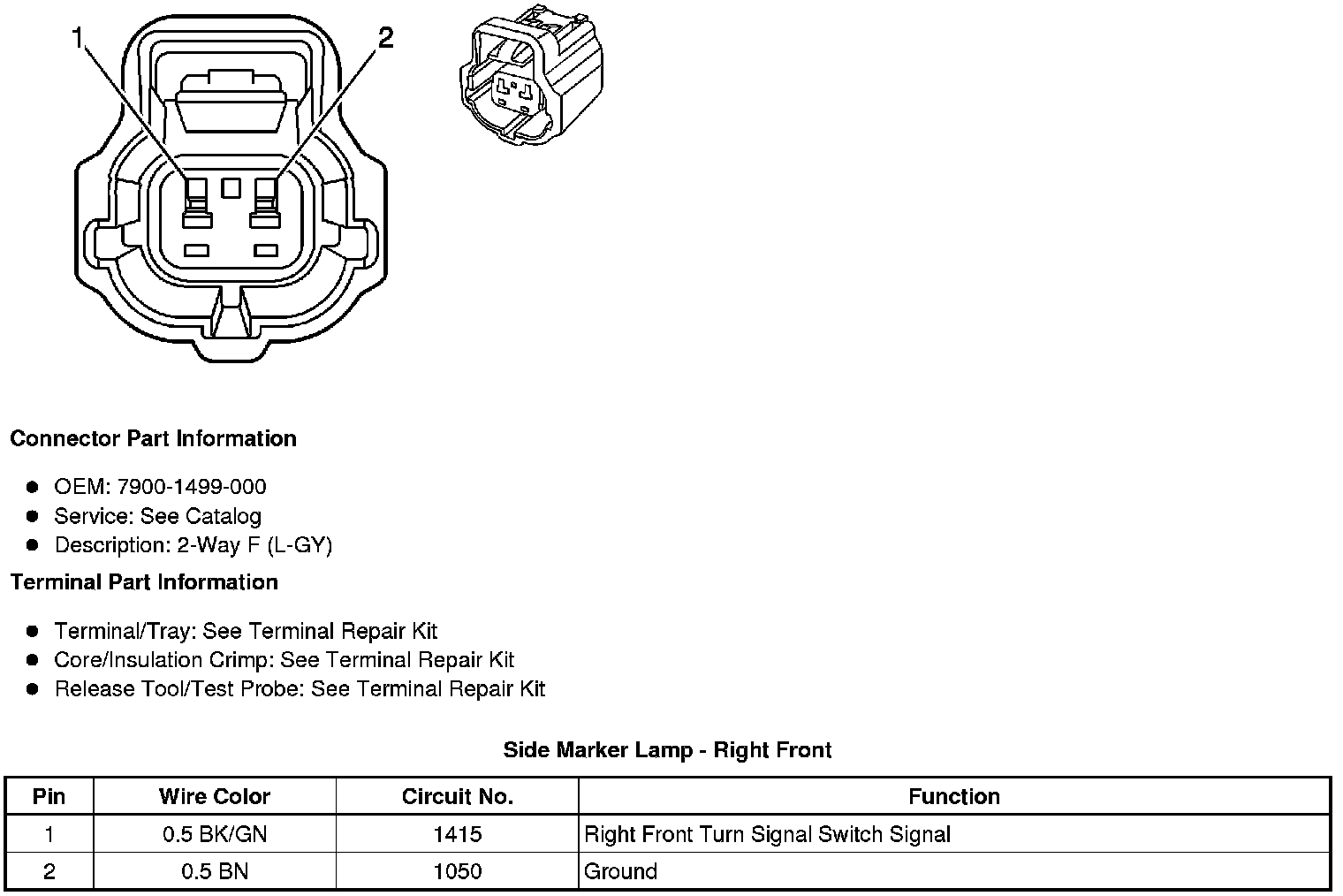

Side Marker Lamp - Right Front






Side Marker Lamp - Right Rear
