59. Engine Coolant Thermostat Installation

Engine Coolant Thermostat Installation





1. Install the coolant flange.

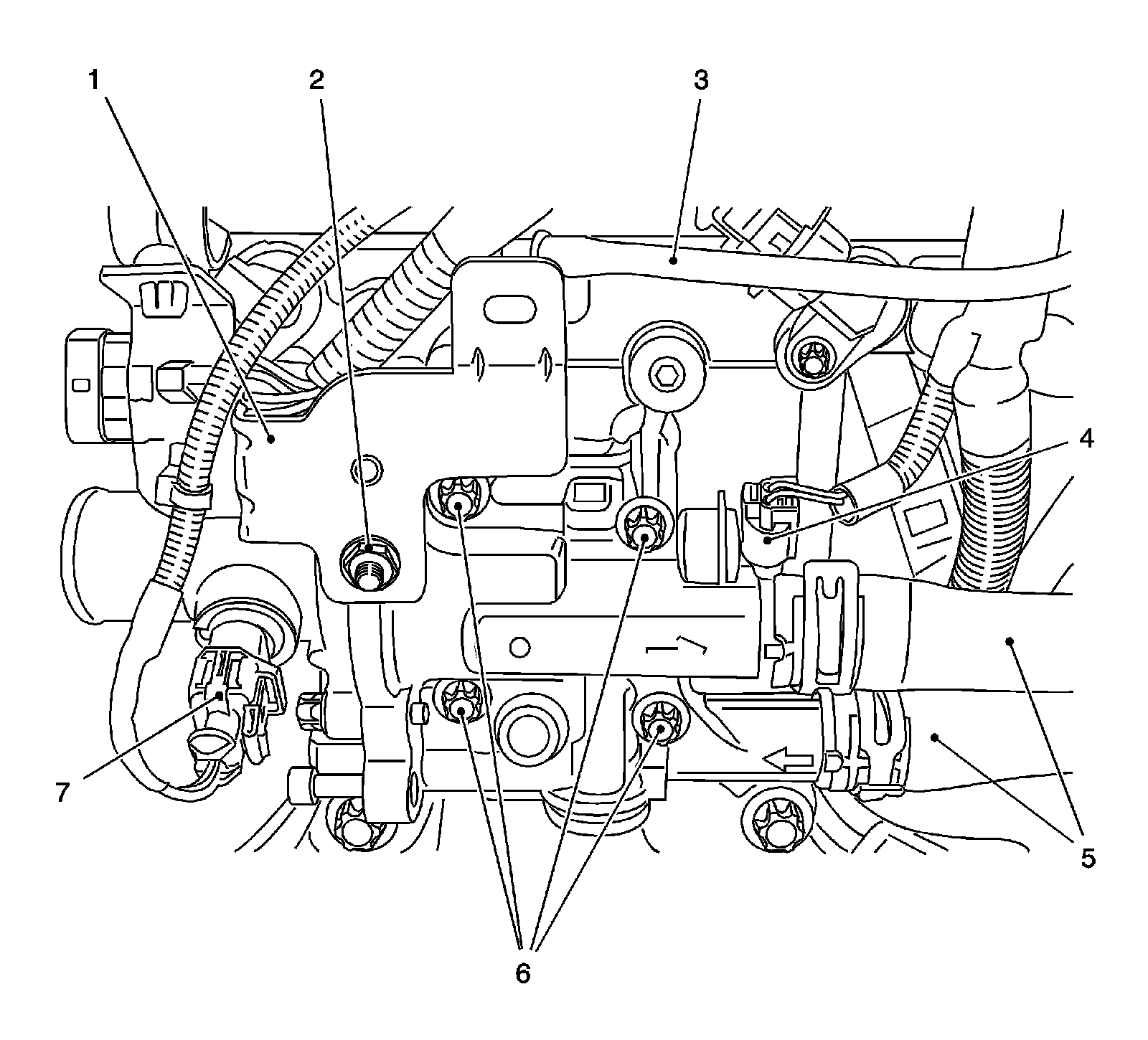

2. Install the 4 coolant flange bolts (6).




3. Install the thermostat.

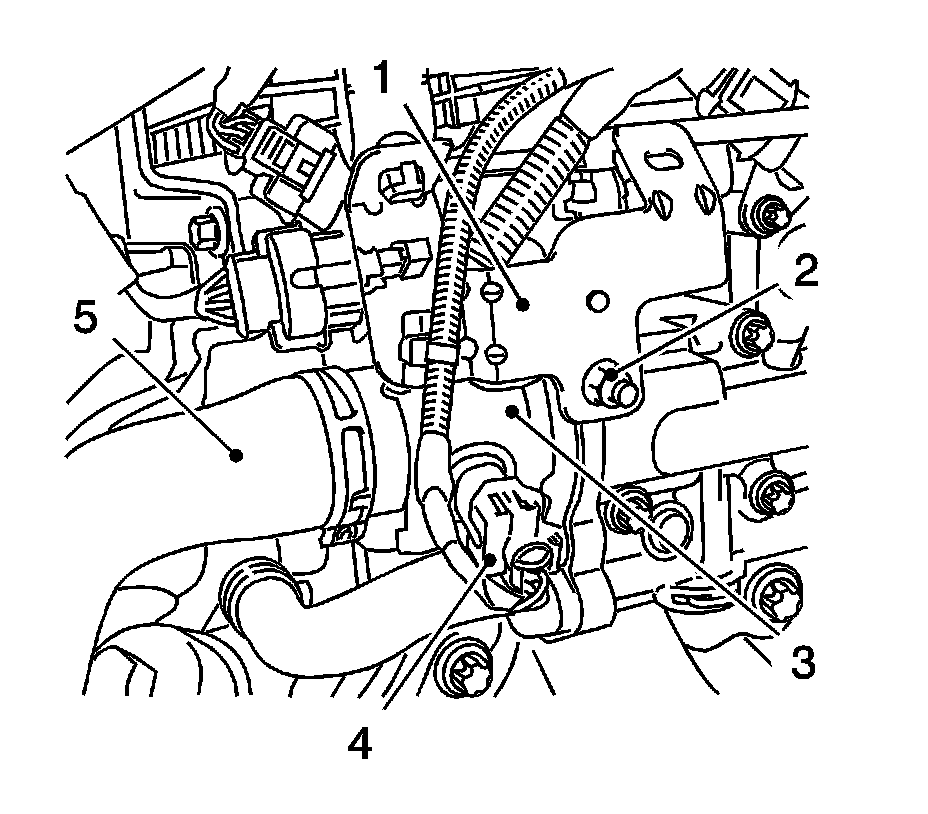

4. Install the thermostat housing (3).
5. Install the 4 thermostat housing bolts.
6. Install the thermostat wiring harness plug (4).
7. Install the wiring harness bracket (1) to the thermostat housing.
8. Install the nut (2).
