4. Engine Flywheel Removal



Engine Flywheel Removal

Special Tools

L0009466 Flywheel Holder

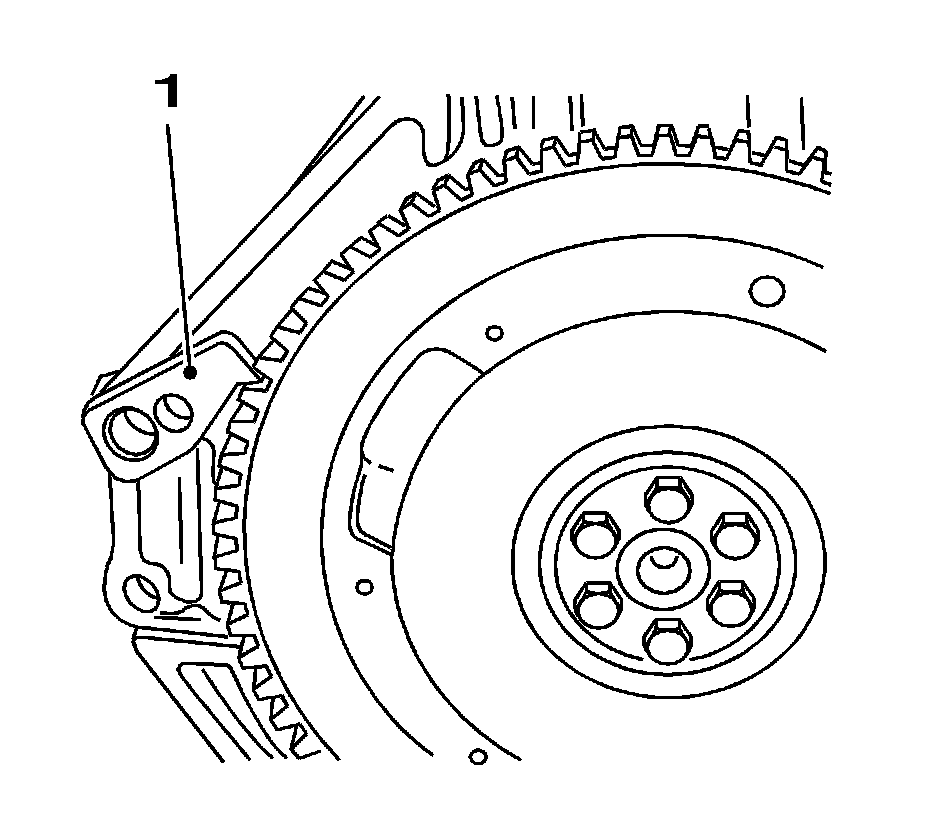

1. Using the L0009466 (1), lock the flywheel via the starter ring gear.
2. Remove the 6 bolts.
