Engine Rear Mount Replacement

Engine Rear Mount Replacement

Removal Procedure

1. Raise the vehicle by its full height.




2. Remove the engine rear mount.

* Remove the 3 screwed connections (1, 2).
* Remove the engine rear mount (3).




Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice) .

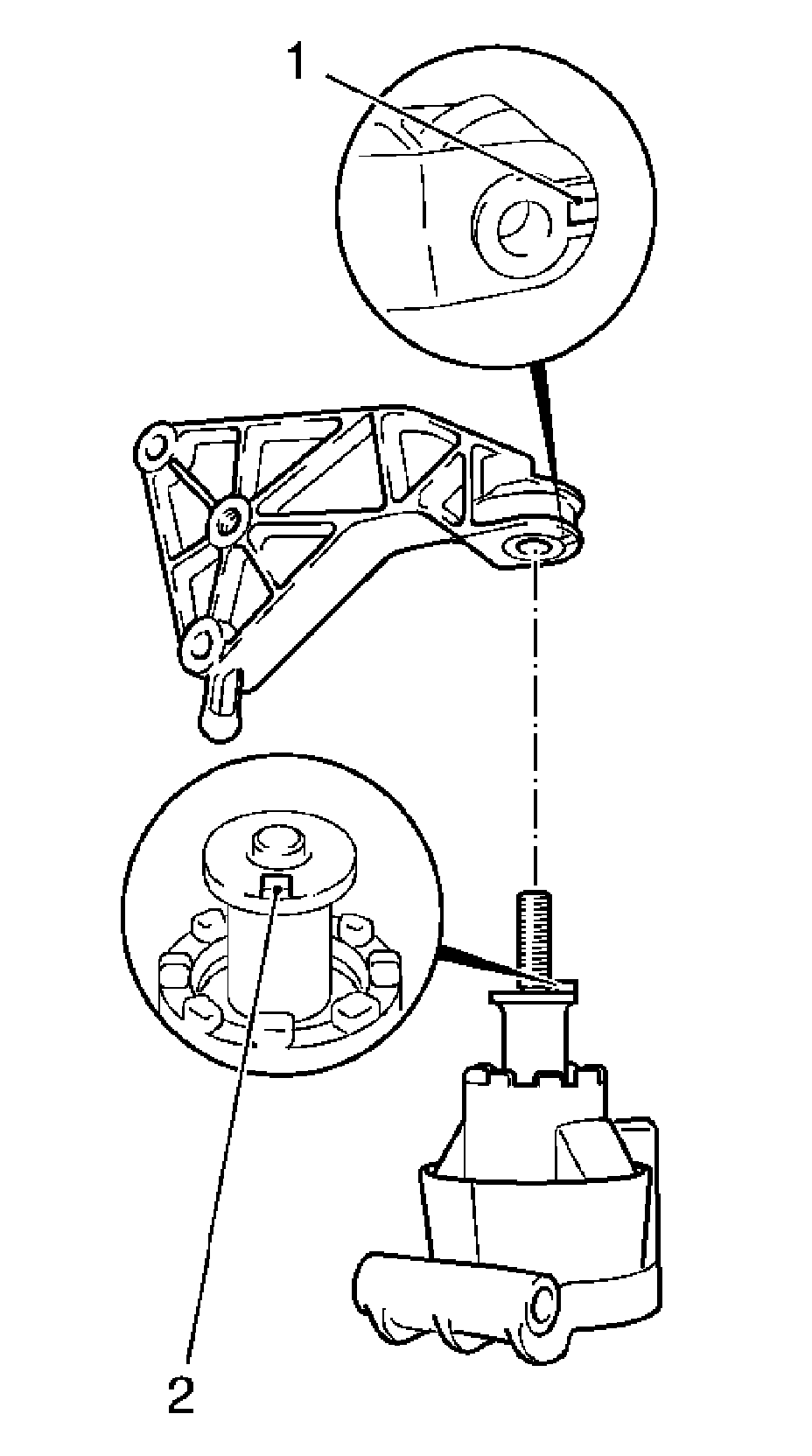

Important: Ensure that the groove (3) engages in the recess (2).


1. Install the engine rear mount to the bracket with a new nut.

Tighten the screwed joint to 55 N.m (40 lb ft).

2. Install the engine rear mount to the front frame with new nuts.

Tighten the 2 screwed joints to 55 N.m (40 lb ft).

3. Lower the vehicle by its full height.
