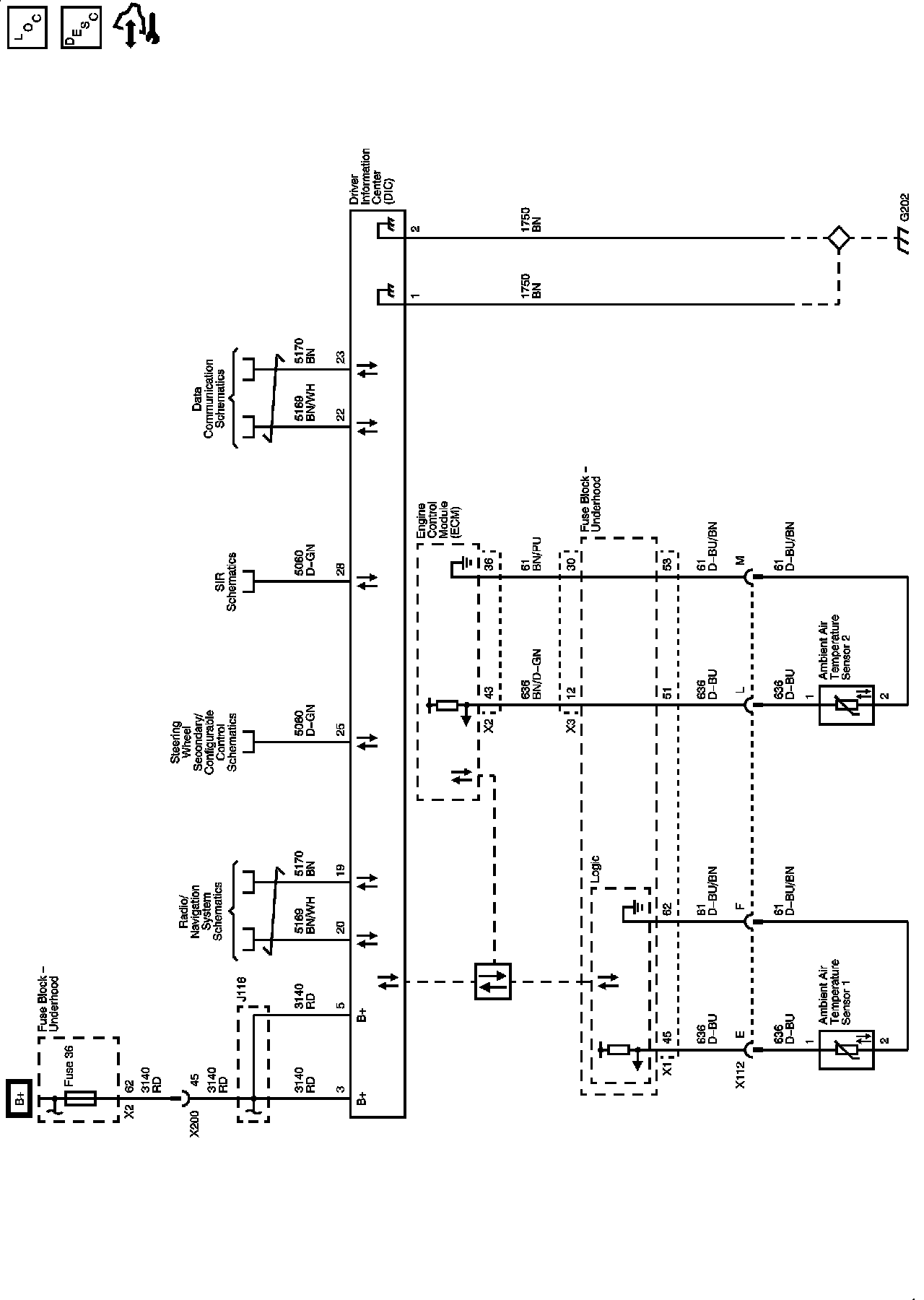

Driver Information System Schematics



Driver Information System Schematics

Driver Information Center (DIC)
