Auxiliary Cabin Heater Control Module

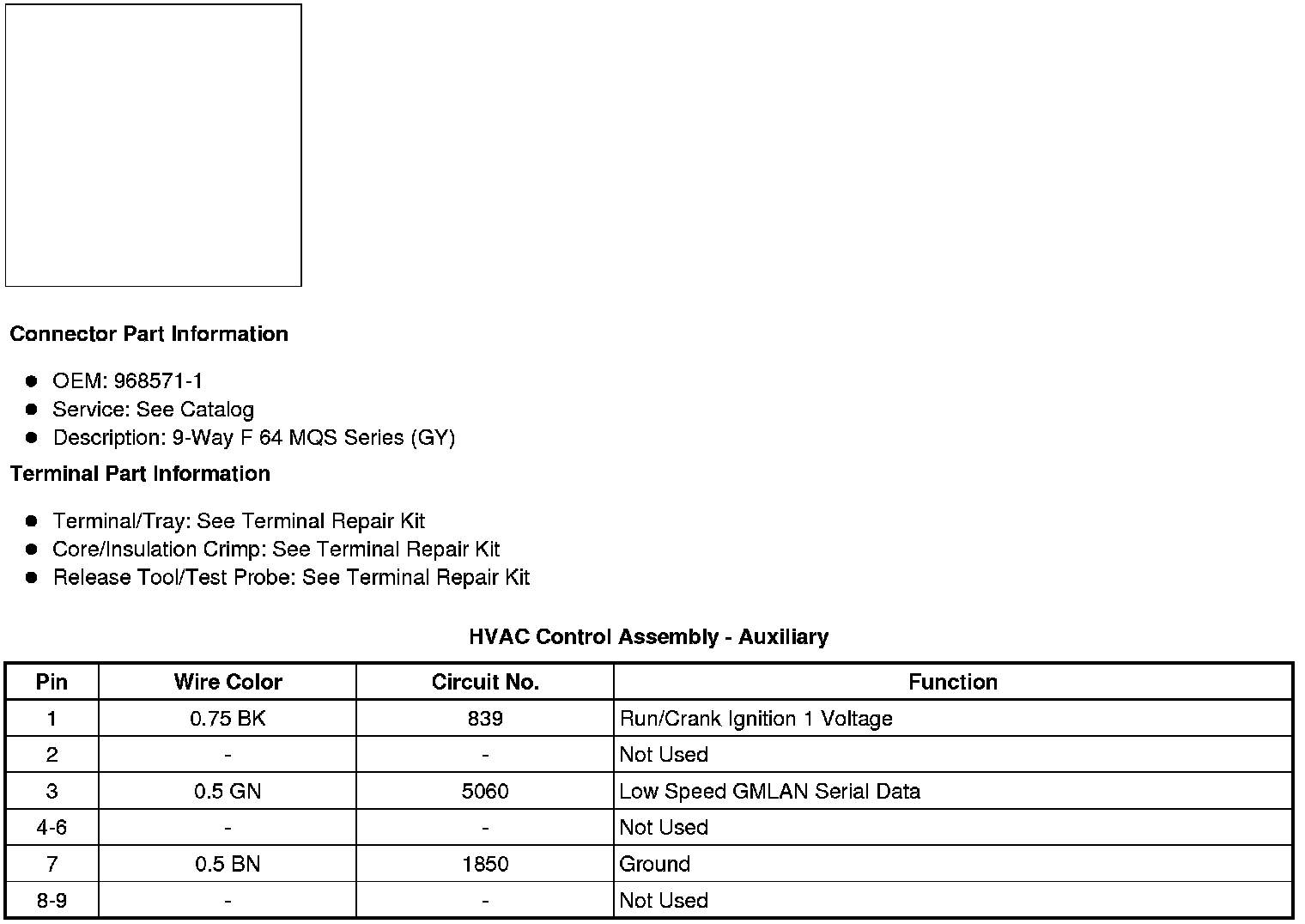

Component Connector End Views

HVAC Control Assembly - Auxiliary
