Front Side Door Upper Auxiliary Weatherstrip Replacement

Front Side Door Upper Auxiliary Weatherstrip Replacement

Removal Procedure

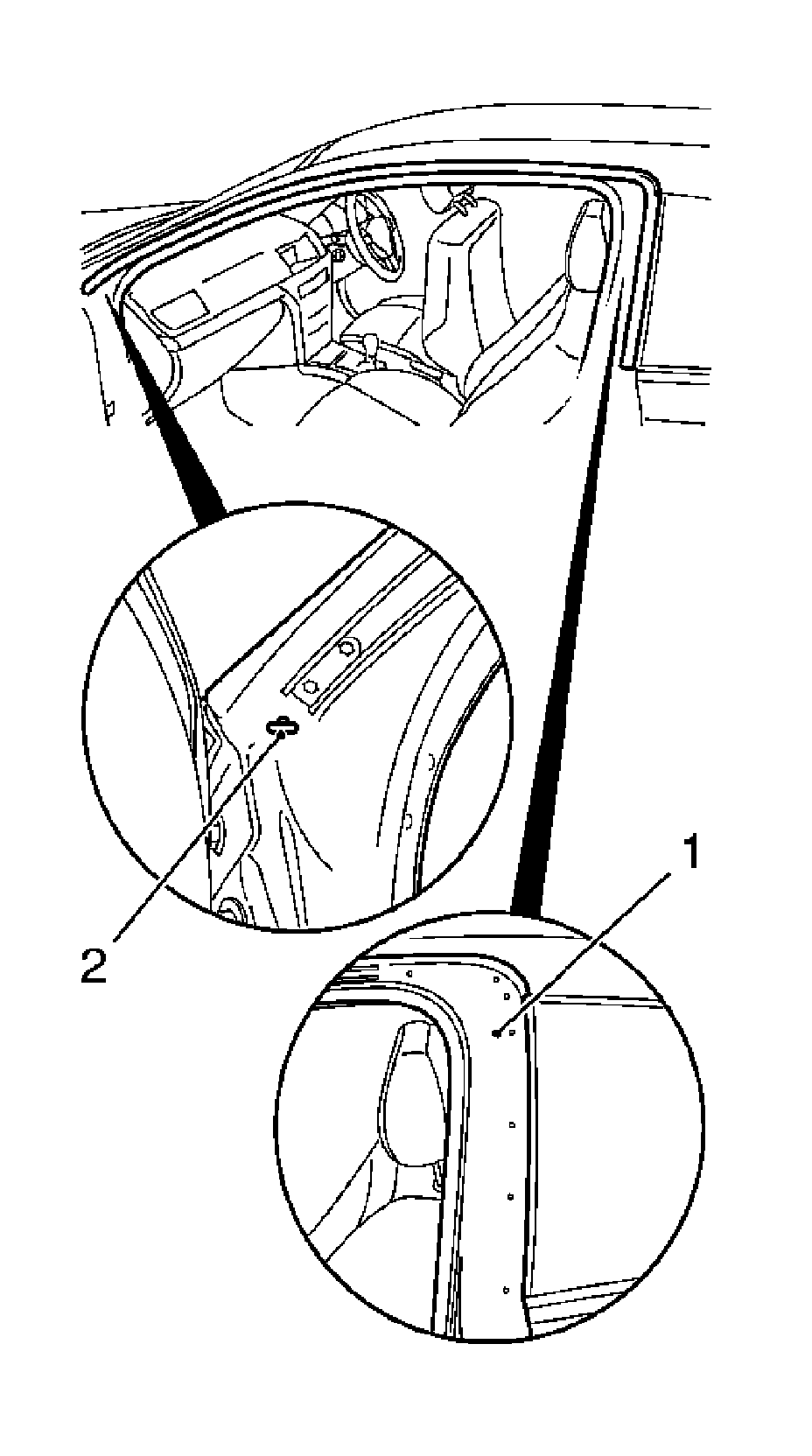

1. Remove the front side door upper auxiliary weatherstrip.
2. Release the clip (1) from the front A-pillar.
3. Release the 7 clips (2) from the outer center pillar.



Installation Procedure

Important: Ensure the correct seating of the weatherstrip in the guide.



Install the front side door upper auxiliary weatherstrip.

1. Install the 7 clips to outer center pillar.
2. Install the front A-pillar.
