Connector Views



Component Connector End Views

Outside Rearview Mirror - Driver

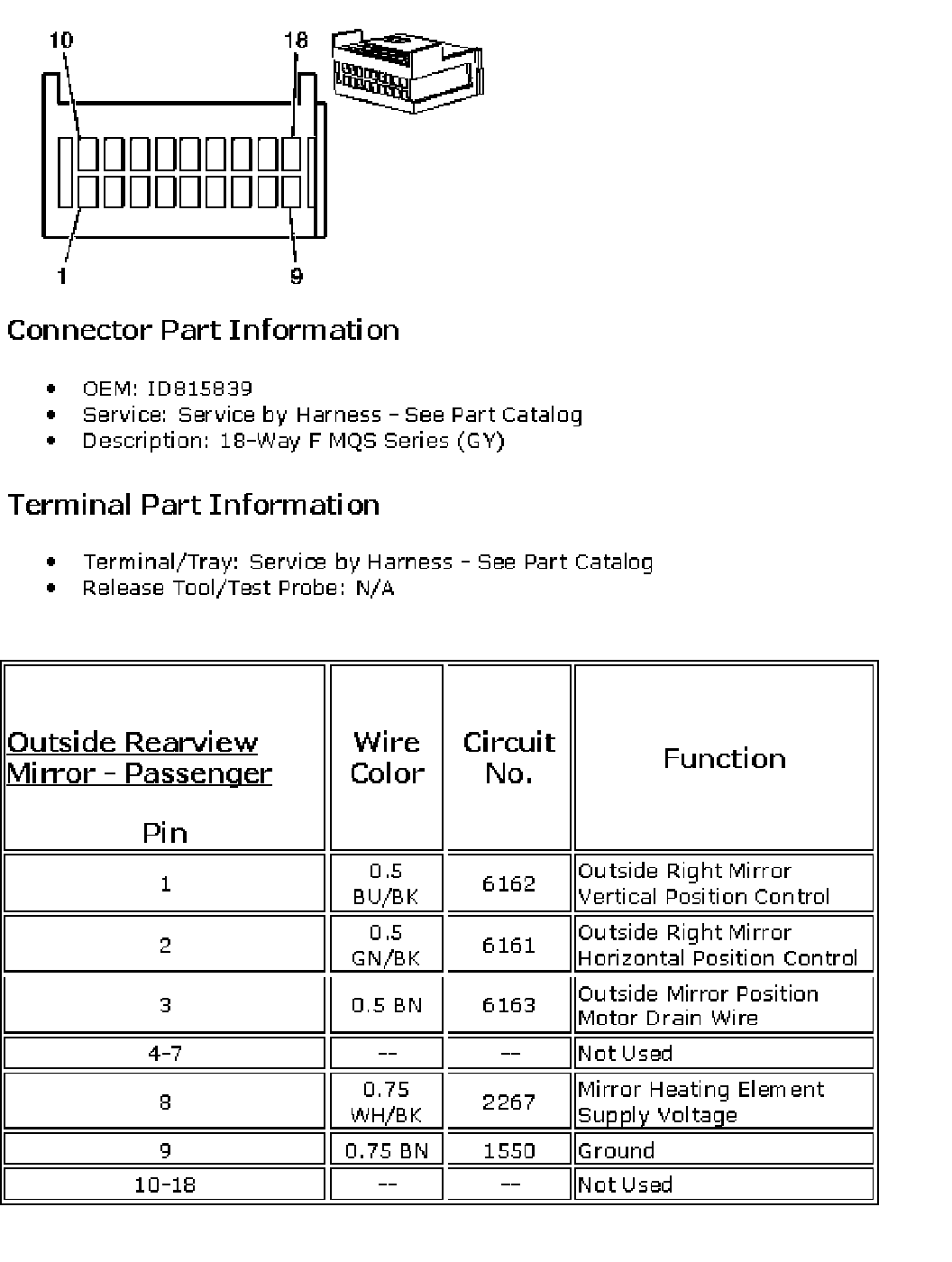

Outside Rearview Mirror - Passenger







Component Connector End Views

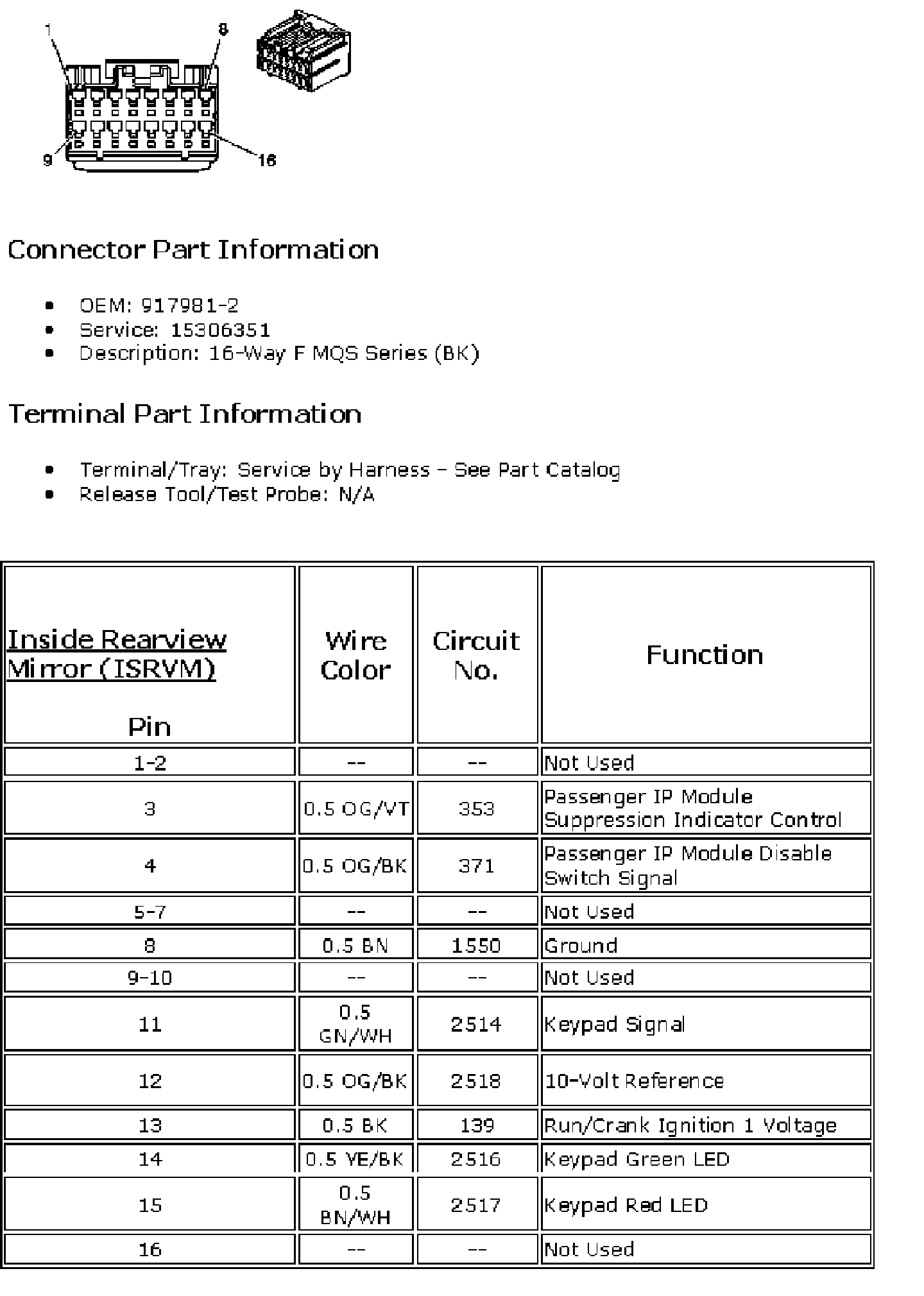

Inside Rearview Mirror (ISRVM)
