Door Locks: Diagrams



Component Connector End Views

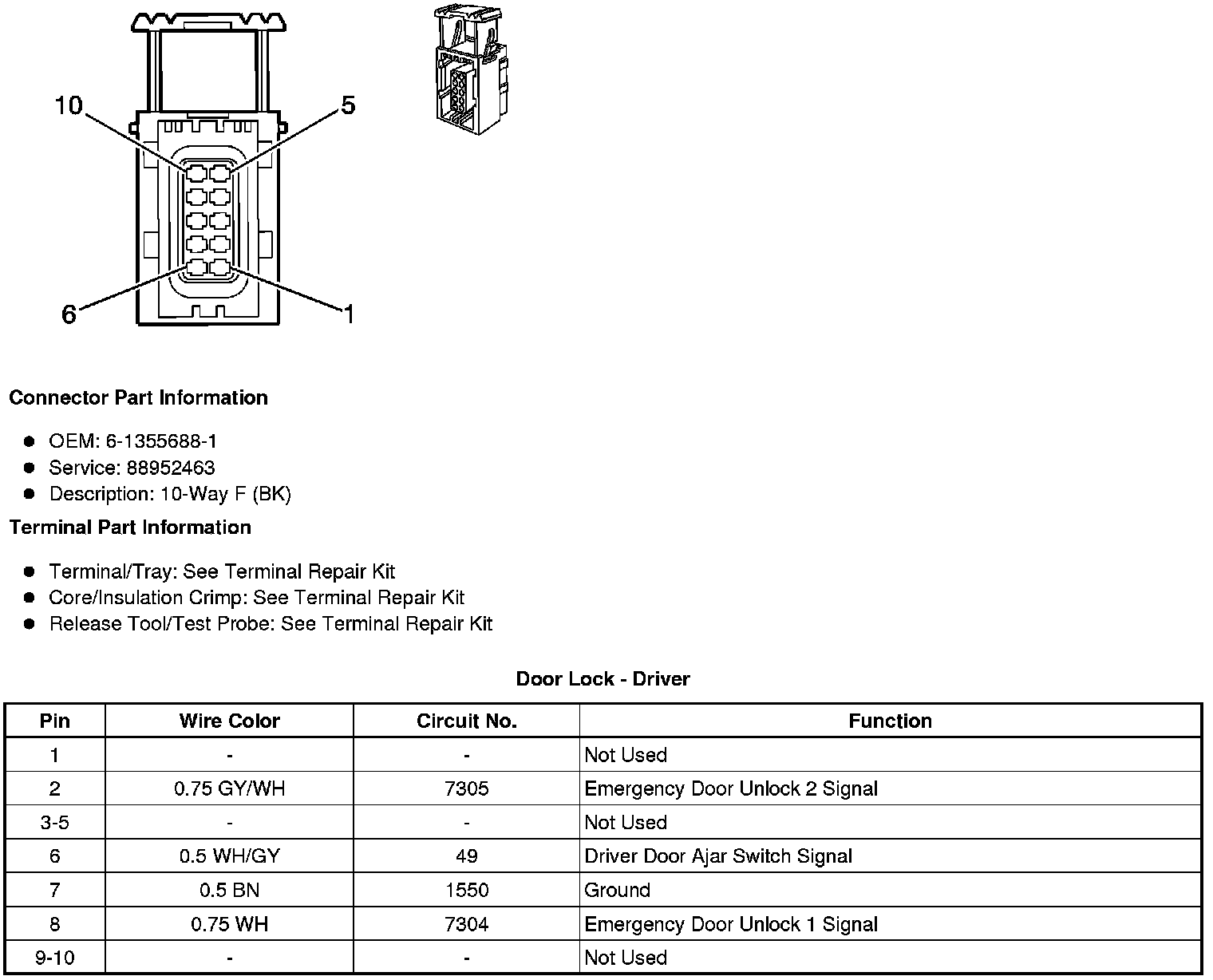

Door Lock - Driver






Door Lock - Left Rear

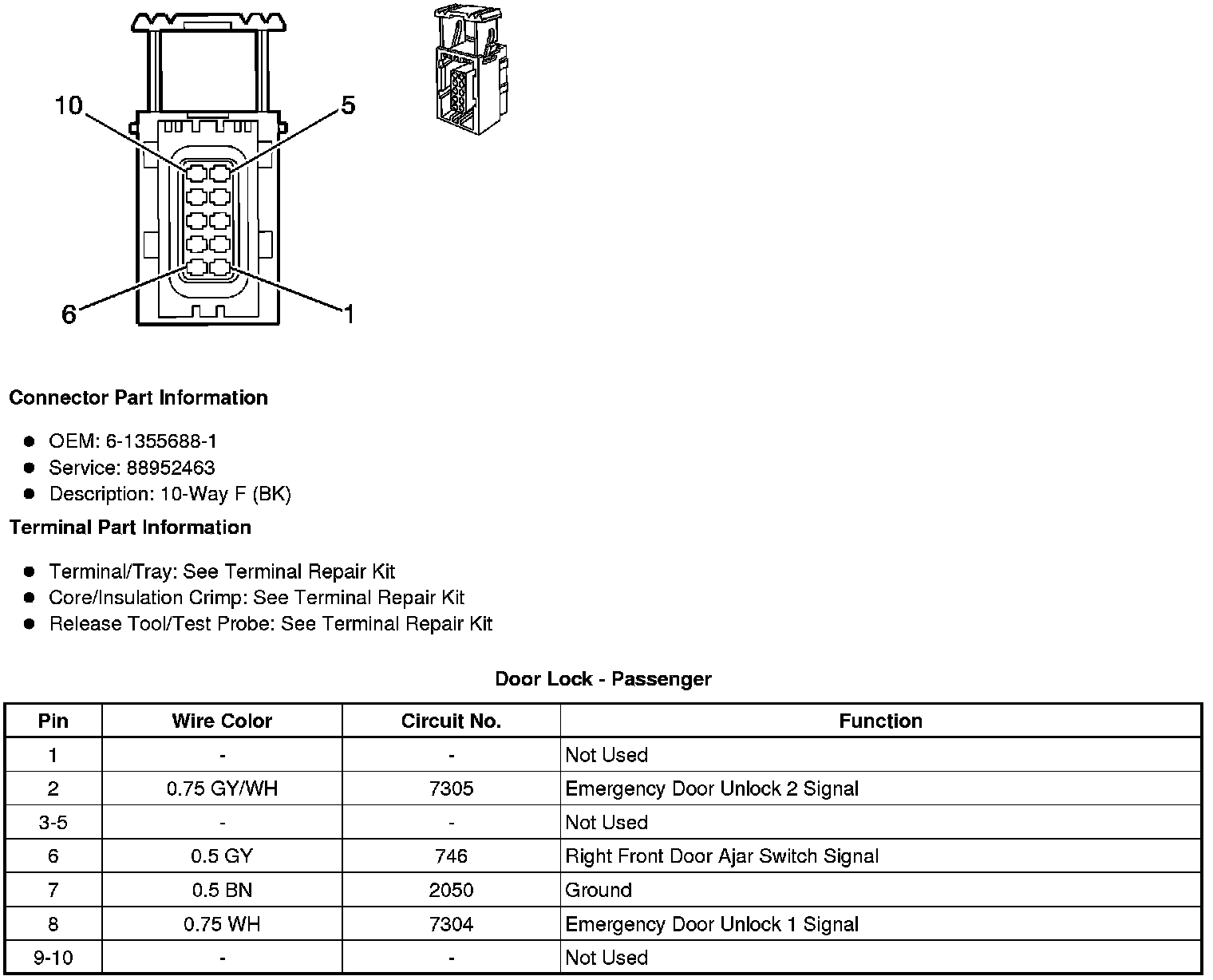

Door Lock - Passenger

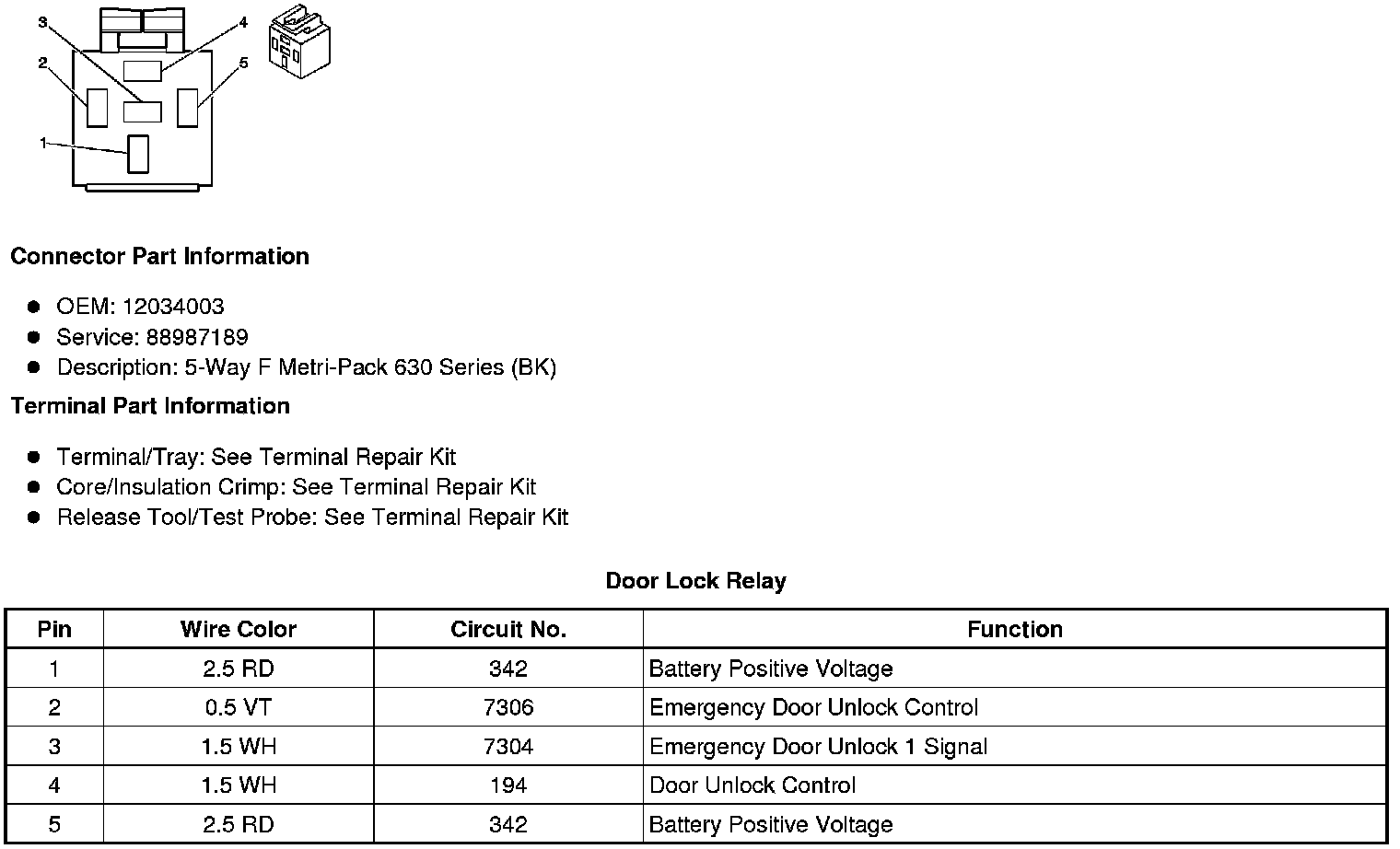

Door Lock Relay

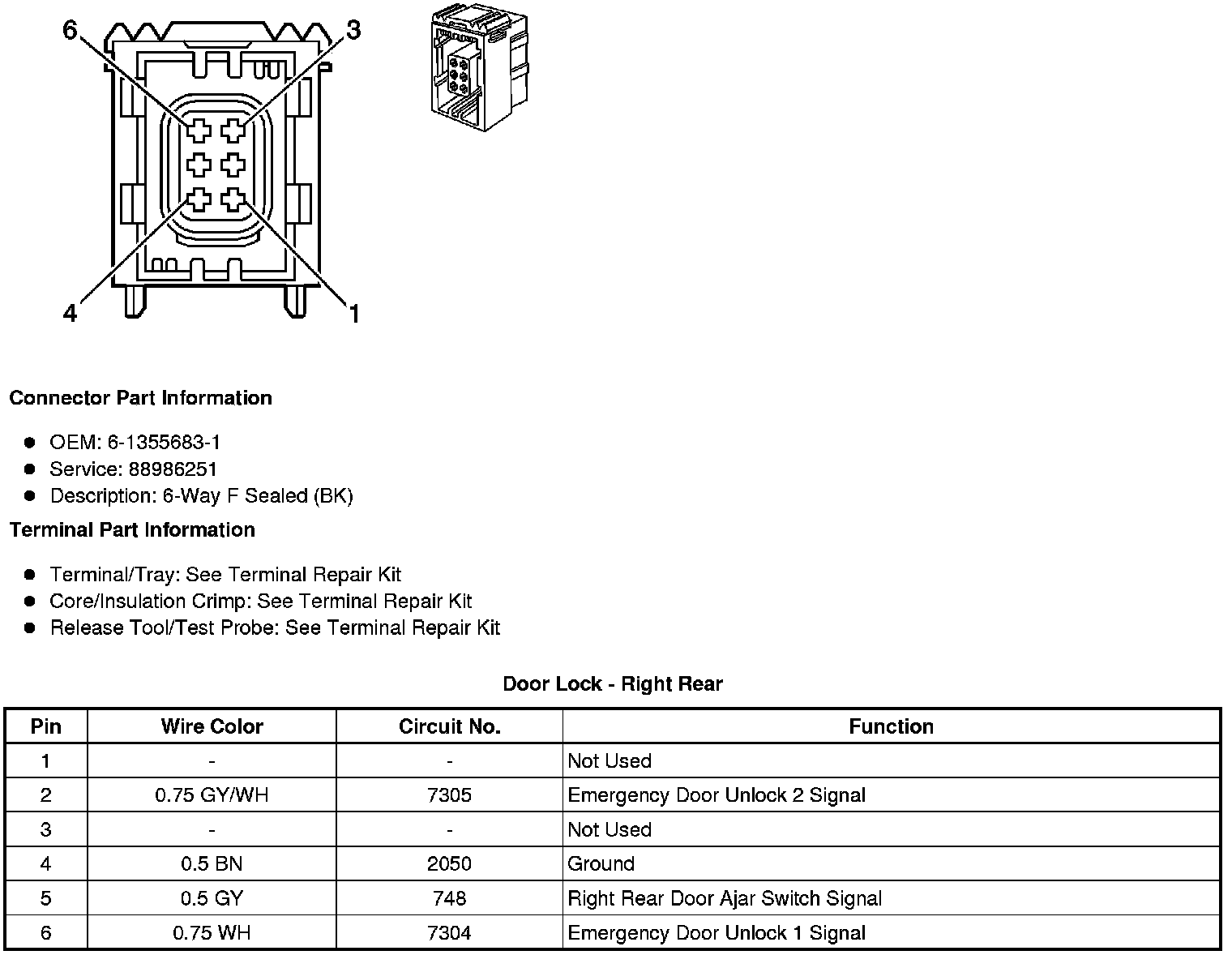

Door Lock - Right Rear

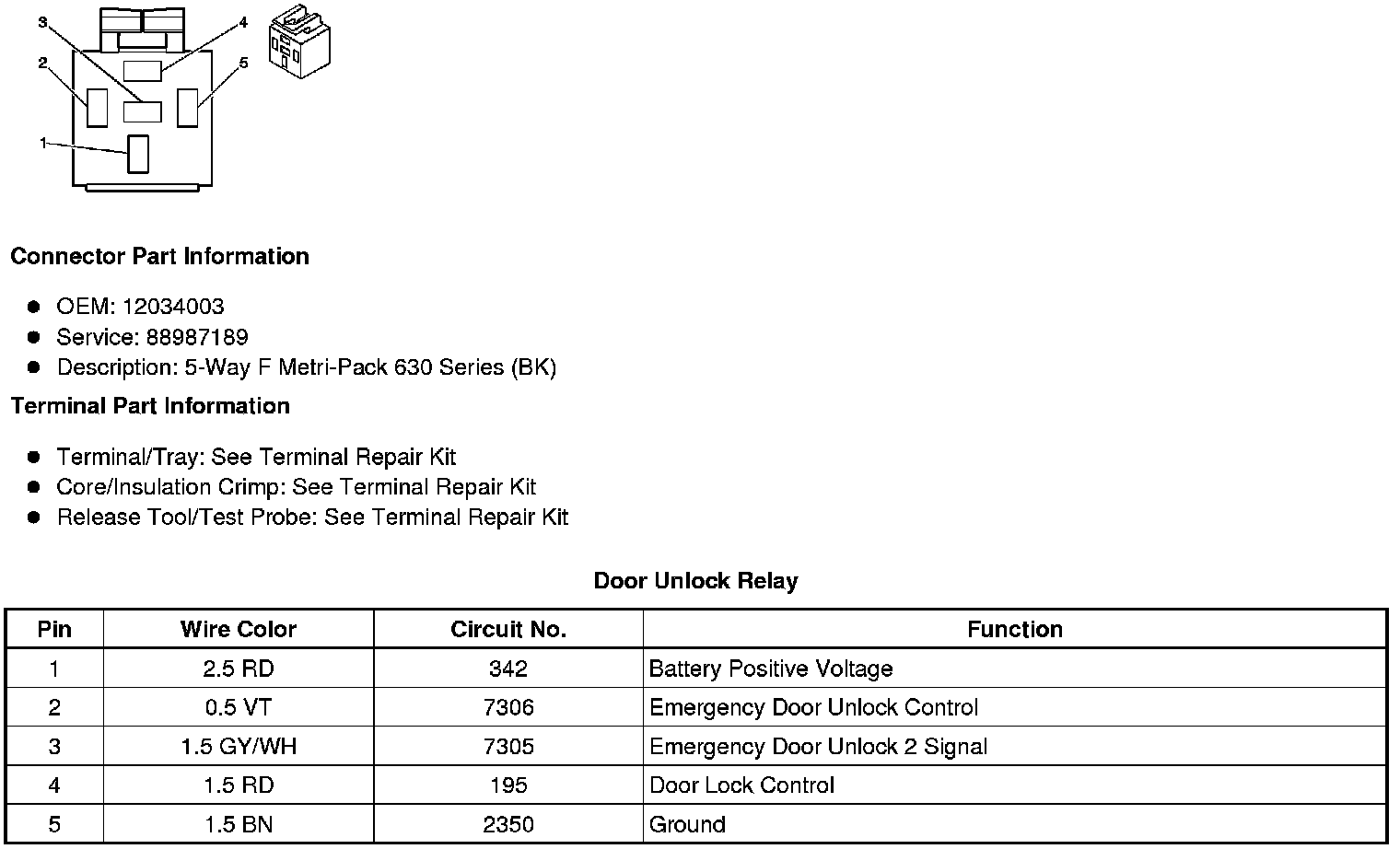

Door Unlock Relay
