Rear Compartment Floor Stowage Compartment Tray Replacement - Right Side

Rear Compartment Floor Stowage Compartment Tray Replacement - Right Side

Removal Procedure





1. Remove the rear compartment carpet (1).




2. Remove the trailer hitch ball head.

* Loosen the fastening belt (1).
* Remove the ball head (2).

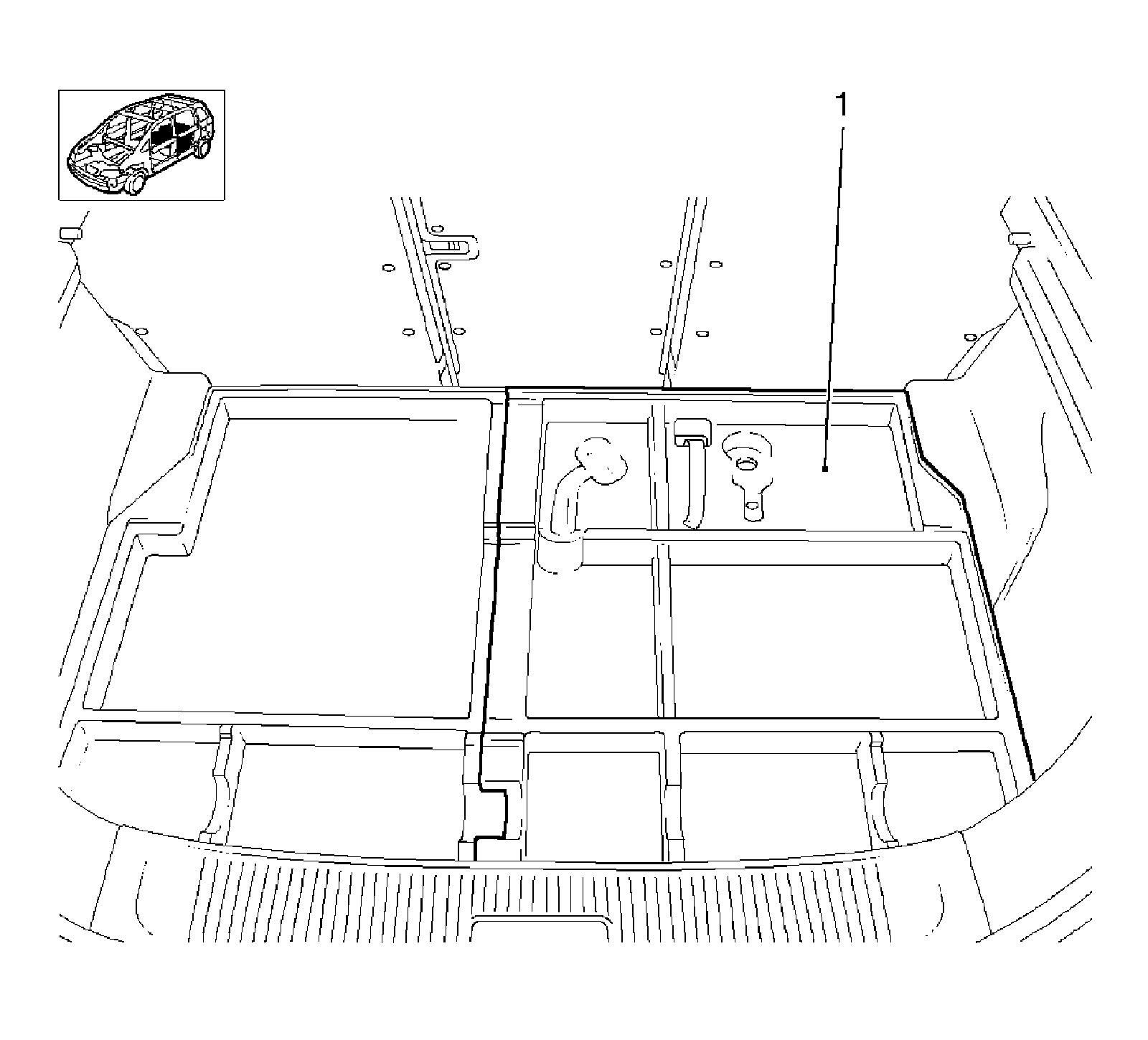

3. Remove the rear compartment storage tray (1)-right side.



Installation Procedure

1. Install the rear compartment storage tray-right side.
Insert the storage tray.
2. Install the trailer hitch ball head.

* Thread the belt through the eye.
* Insert the ball.
* Tighten the belt.

3. Install the rear compartment carpet.
