Liftgate Garnish Molding Replacement (Sedan)

Liftgate Garnish Molding Replacement (Sedan)

Removal Procedure

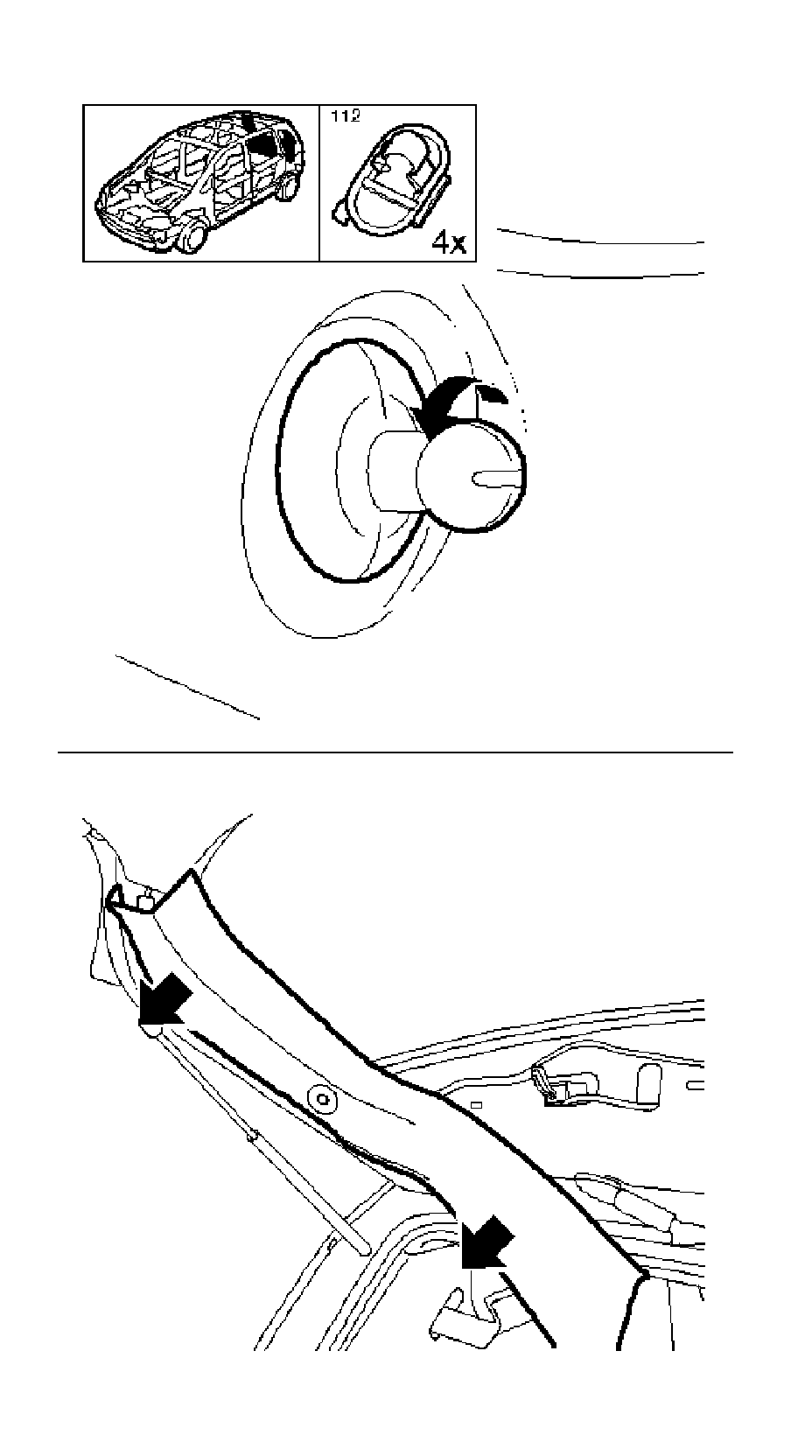

1. Remove the upper liftgate garnish molding-left side.

* Remove the luggage shade bracket.
* Release the 4 clips.

2. Remove the upper liftgate garnish molding-right side.

* Remove the luggage shade bracket.
* Release the 4 clips.




Installation Procedure

1. Install the upper liftgate garnish molding-right side.

* Install the 4 clips.
* Tighten the luggage shade bracket.

2. Install the upper liftgate garnish molding-left side.

* Install the 4 clips.
* Tighten the luggage shade bracket.
