Instrument Panel Wiring Harness Replacement

Instrument Panel Wiring Harness Replacement

Removal Procedure

Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution) .
1. Disconnect the battery.
2. Remove the instrument panel (I/P) trim panel. Refer to Instrument Panel Trim Panel Replacement (Service and Repair) .
3. Remove the front floor console. Refer to Front Floor Console Replacement (Service and Repair) .

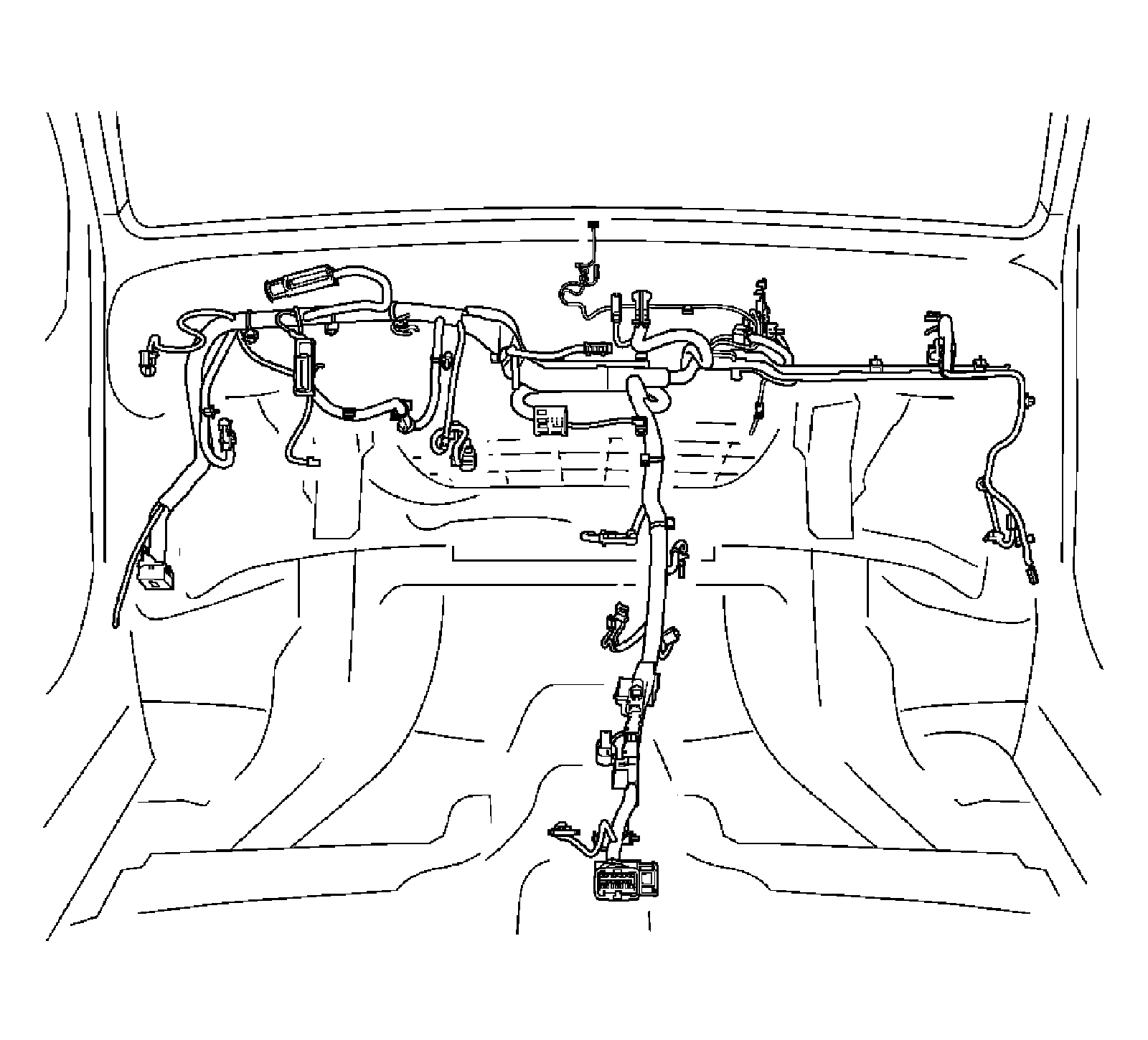

4. Remove the I/P padding wiring harness (LAD).




5. Remove the I/P padding wiring harness (RHD).



Installation Procedure

1. Install the I/P padding wiring harness.
2. Install the I/P trim panel. Refer to Instrument Panel Trim Panel Replacement (Service and Repair) .
3. Install the front floor console. Refer to Front Floor Console Replacement (Service and Repair) .
4. Connect the battery.
5. For reprogramming procedures, refer to Control Module References (Programming and Relearning) .
