Instrument Panel Trim Panel Replacement - Right Side

Instrument Panel Trim Panel Replacement - Right Side

Removal Procedure





1. Remove the radio.

1. Disconnect with dismantling strap, arrow.
2. Disconnect the wiring harness plug (2).
3. Disconnect the antenna (1).





2. Remove the heating/air conditioning control module.

1. Loosen the 2 top clips (1).
2. Loosen the 2 bottom clips.
3. Release the 2 wiring harness plugs and disconnect (2).





3. Remove the right instrument panel (I/P) trim panel.

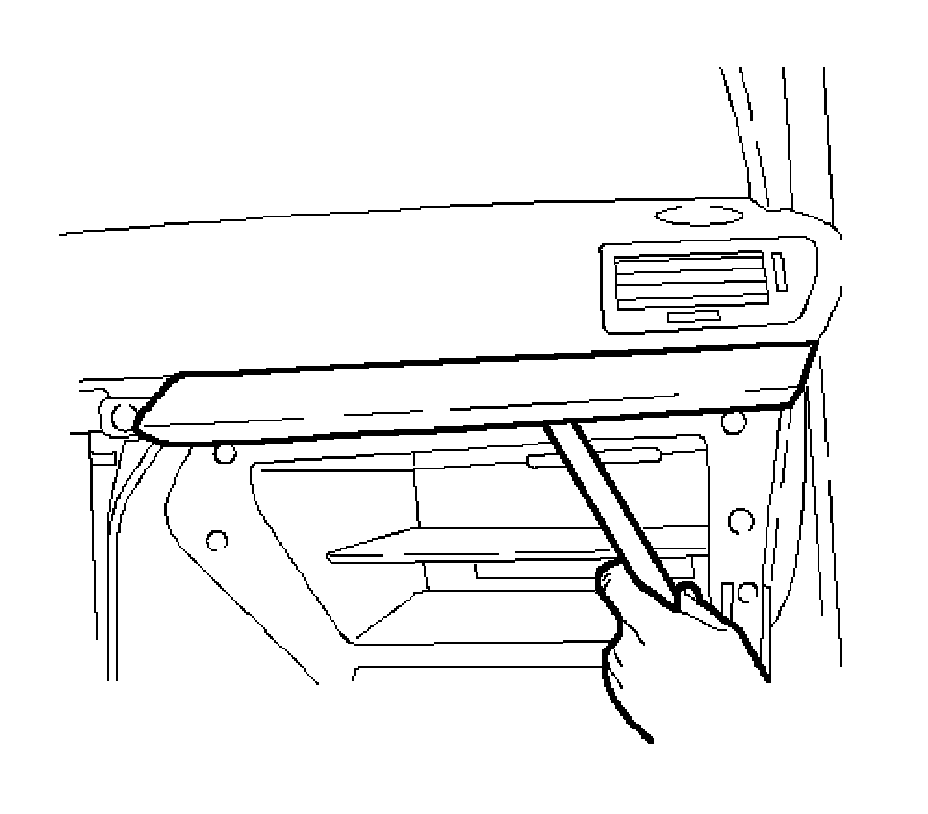

1. Release with a plastic wedge.
2. Remove the 4 clips.




Installation Procedure

1. Install the right instrument panel padding panel.
Install the 4 clips.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the center trim panel.
Connect and latch the wiring harness plug.

Tighten the 2 bolts to 2.5 N.m (22 lb in).

3. Install the heating/air conditioning control module.

1. Connect and lock the 2 wiring harness plugs.
2. Install the 4 clips.

4. Install the radio.

1. Connect in the antenna.
2. Connect the wiring harness plug.
3. Slide the radio in until it clicks in.
