Instrument Panel Ashtray Replacement



Instrument Panel Ashtray Replacement

Removal Procedure

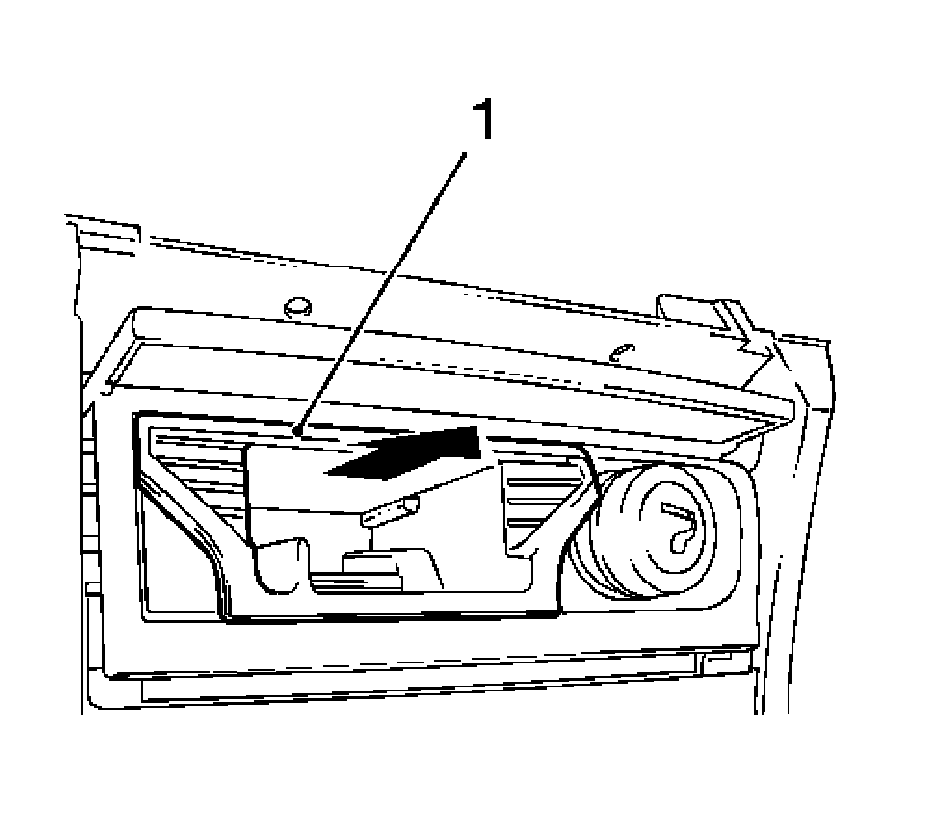

Remove the ashtray insert (1) upwards.


Installation Procedure

Important: Pay attention to the installation position.



Install the ashtray insert.
