Front Bumper Fascia Grille Replacement - Lower

Front Bumper Lower Fascia Grille Replacement

Removal Procedure

1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Front Bumper Fascia Replacement) .

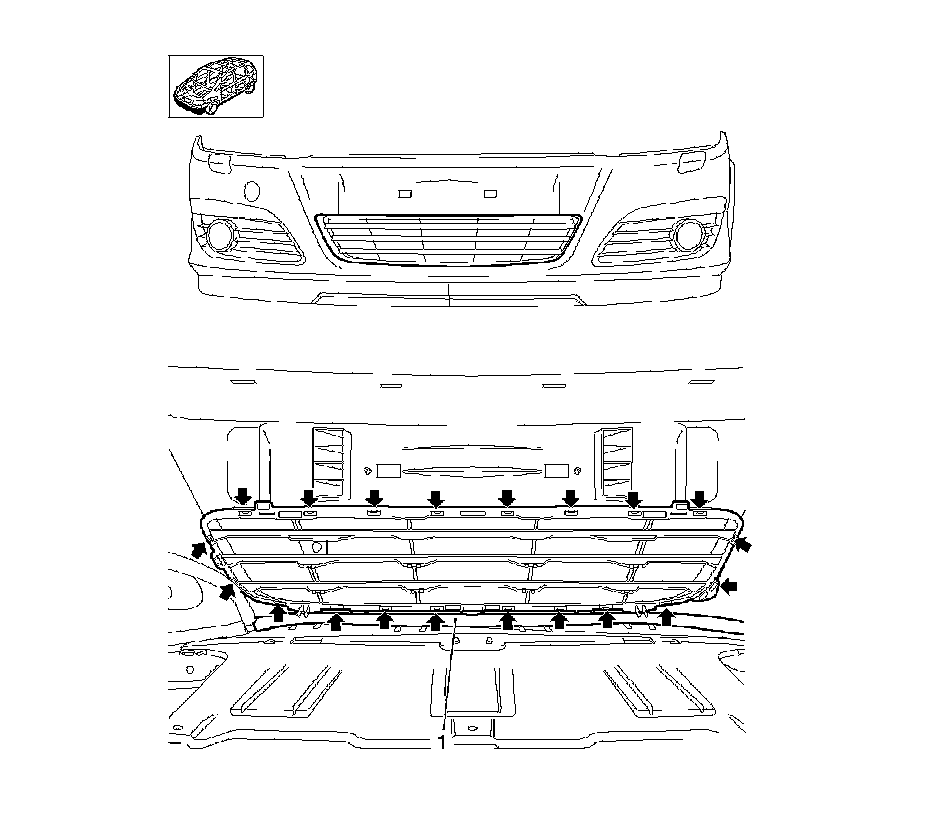

2. For vehicles with high-pressure headlamp washer hose, remove the high-pressure headlamp washer hose (1) from the front panelling grille guide.
3. Remove the front lower fascia grille.
Remove the 20 retainers (arrows).



Installation Procedure

1. Install the front lower fascia grille.
Insert and lock the 20 retainers.
2. For vehicles with high-pressure headlamp washers, install the high-pressure headlamp washer hose in the front panelling grille guide.
3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Front Bumper Fascia Replacement) .
