Liftgate Wiring Harness Replacement (L48)

Liftgate Wiring Harness Replacement (L48)

Removal Procedure

Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution) .

Important: Replace or repair the wiring harnesses observing the safety regulations of electrics/electronics.


1. Disconnect the battery.
2. Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Sedan) (Service and Repair)Liftgate Trim Panel Replacement (Coupe) (Service and Repair) .
3. Remove the liftgate wiring harness.

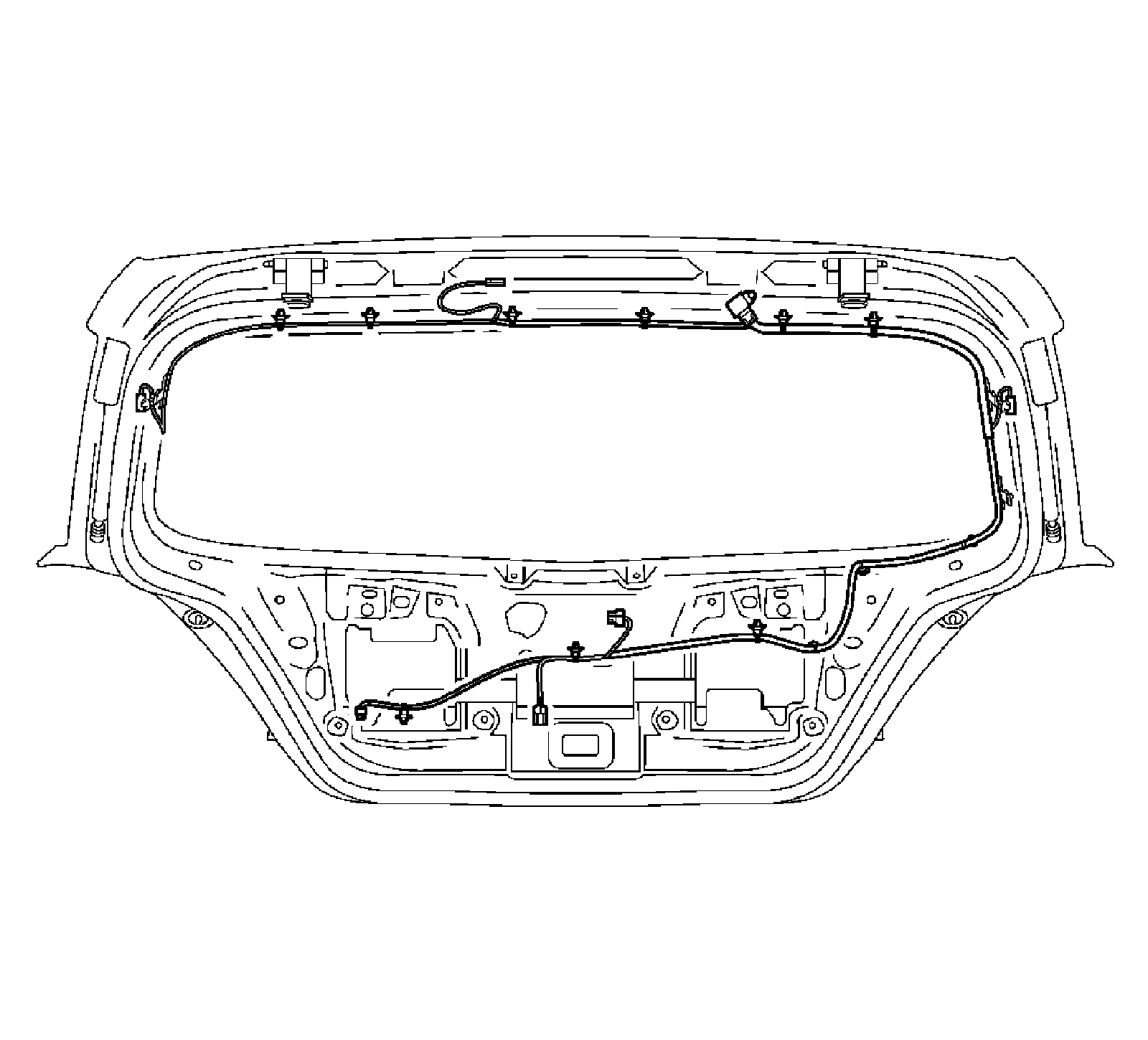

4. Overview of liftgate wiring harness



Installation Procedure

1. Install the liftgate wiring harness.
2. Install the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Sedan) (Service and Repair)Liftgate Trim Panel Replacement (Coupe) (Service and Repair) .
3. Connect the battery.
4. For reprogramming procedures, refer to Control Module References (Programming and Relearning) .
