Rear Side Door Wiring Harness Replacement

Rear Side Door Wiring Harness Replacement

Removal Procedure

Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution) .

Important: Replace or repair the wiring harnesses observing the safety regulations of electrics/electronics.


1. Disconnect the battery.
2. Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair) .
3. Remove the vapor deflection barrier.

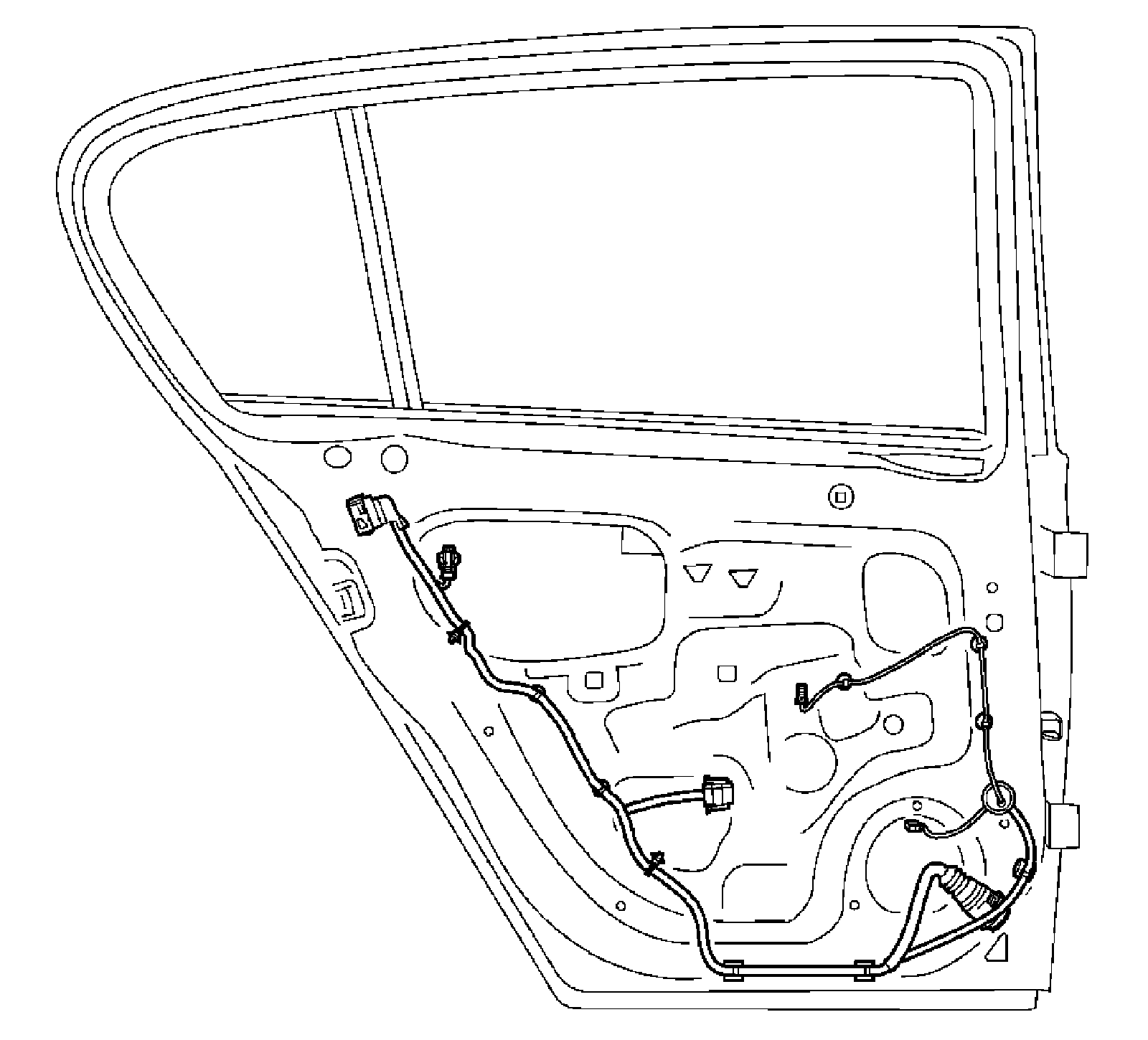

4. Remove the rear door wiring harness.



Installation Procedure

1. Install the rear door wiring harness.
2. Install the water vapor barrier.
3. Install the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair) .
4. Connect the battery.
5. For reprogramming procedures, refer to Control Module References (Programming and Relearning) .
