Radio Rear Quarter Trim Panel Speaker Replacement

Radio Rear Quarter Trim Panel Speaker Replacement

Removal Procedure

1. Remove the front of the rear quarter lower trim panel. Refer to Rear Quarter Lower Trim Panel Replacement (Sedan) (Service and Repair)Rear Quarter Lower Trim Panel Replacement (Coupe) (Service and Repair) .

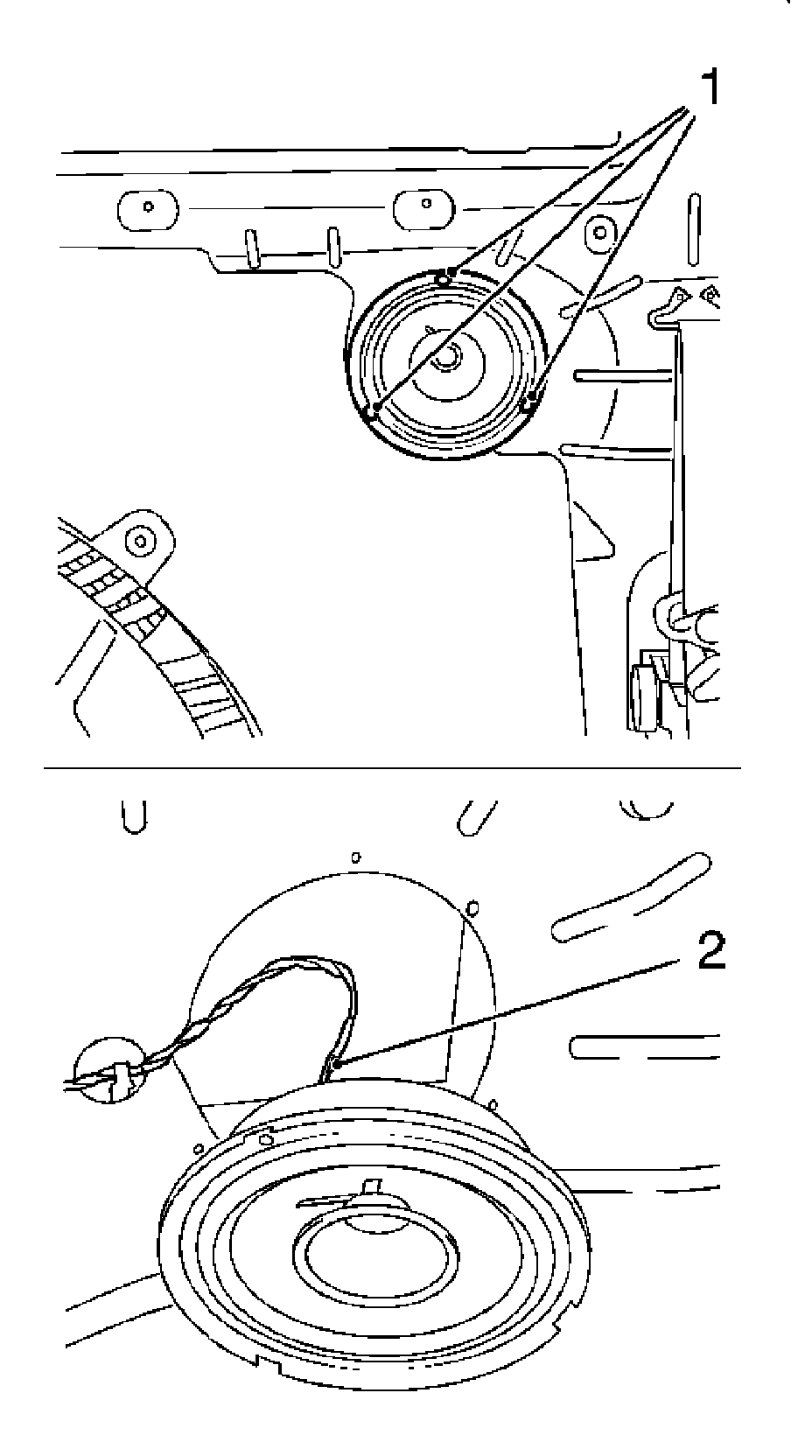

2. Remove the rear quarter speaker.

* Remove the 3 bolts (1).
* Disconnect the wiring harness plug (2).




Installation Procedure


Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the rear quarter speaker.
Connect the wiring harness plug.

Tighten the 3 bolts to 2.5 N.m (22 lb in).

2. Install the front inner paneling of the rear quarter panel. Refer to Rear Quarter Lower Trim Panel Replacement (Sedan) (Service and Repair)Rear Quarter Lower Trim Panel Replacement (Coupe) (Service and Repair) .
