Radio Front Side Door Upper Speaker Replacement

Radio Front Side Door Upper Speaker Replacement

Removal Procedure

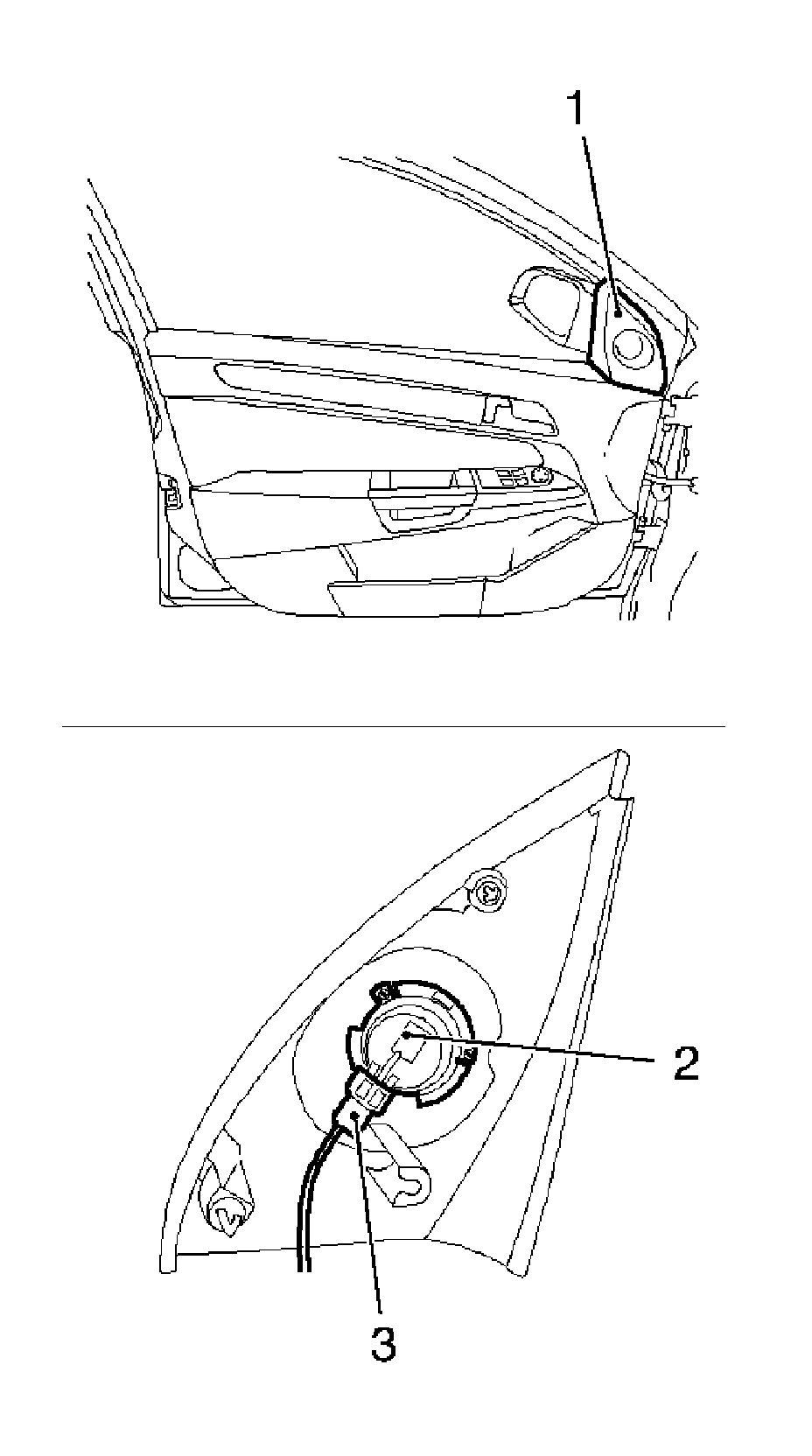

1. Remove the upper extension trim panel (1).

* Release the 3 clips.
* Remove the foam.
* Disconnect the wiring harness plug (3).

2. Release the front door upper speaker (2).



Installation Procedure

1. Install the front door upper speaker.
2. Install the upper extension trim panel.

* Connect the wiring harness plug.
* Replace the foam.
