Antenna, Navigation: Service and Repair

Global Positioning System (GPS) Antenna Replacement

Removal Procedure

1. Remove the info display. Refer to Driver Information Display Replacement (Service and Repair) .
2. Remove the info display panel.

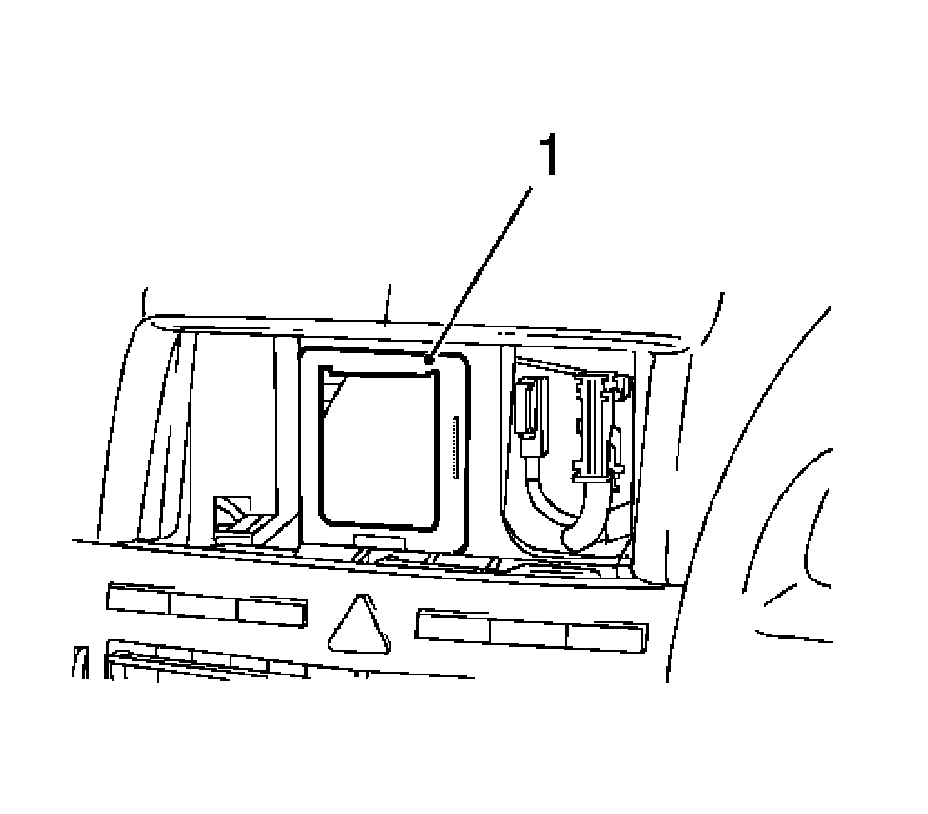

3. Remove the GPS antenna (1) for the navigation system.

* Release the 2 clips.
* Release the wiring harness plug and disconnect.




Installation Procedure

1. Install the GPS antenna for navigation system.

* Connect and lock the wiring harness plug.
* Clip in the 2 clips.

2. Install the info display panel.
Clip in the 2 clips.
3. Install the info display. Refer to Driver Information Display Replacement (Service and Repair) .
