Transmission Housing Oil Seal Replacement - Rear

Transmission Housing Oil Seal Replacement - Rear

Tools Required

J 45868 RWD Output Shaft Seal Installer

Removal Procedure

1. Remove the rear propeller shaft.

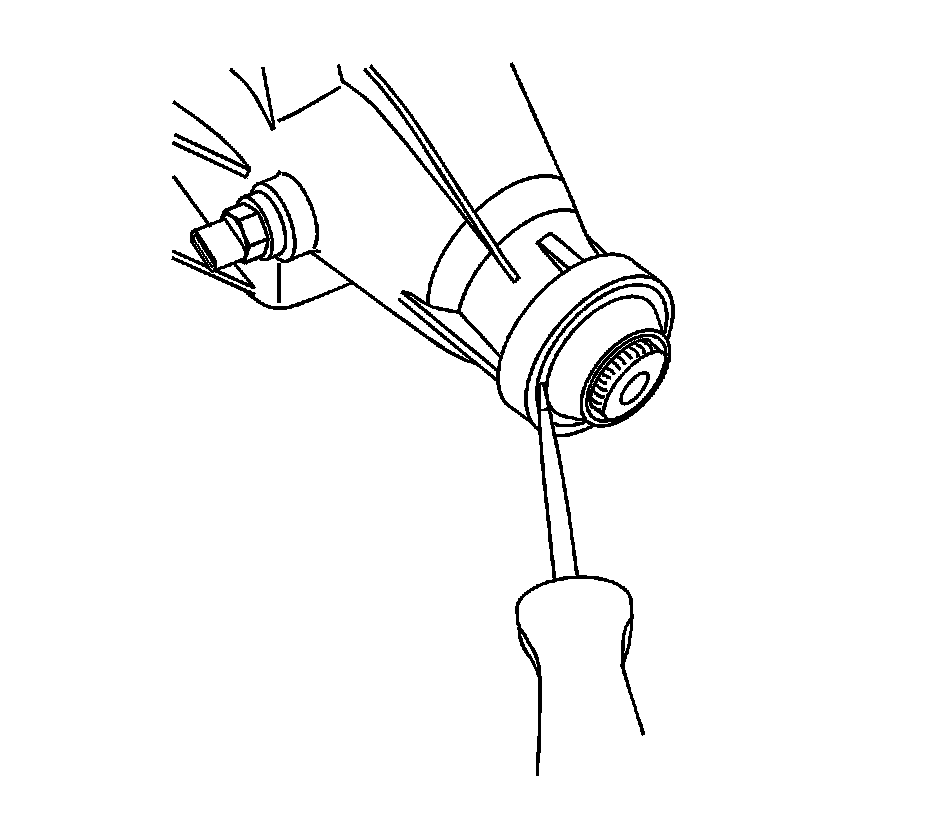

2. Using a suitable tool, pry the rear transmission housing oil seal from the transmission housing.

Installation Procedure

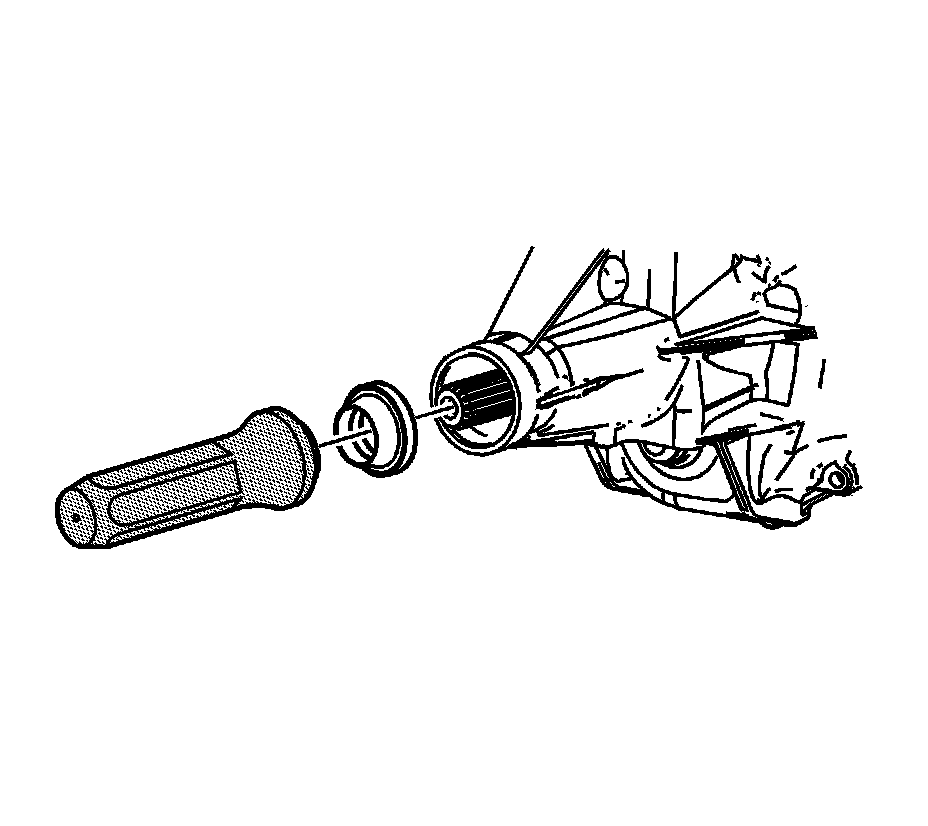

1. Using the J 45868 and a hammer, install the NEW rear transmission housing oil seal.
2. Check the transmission fluid level. Add if necessary. Refer to Transmission Fluid Replacement.
3. Install the rear propeller shaft.
