Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Testing and Inspection >> Component Tests and General Diagnostics >> Limited Slip Differential Diagnosis

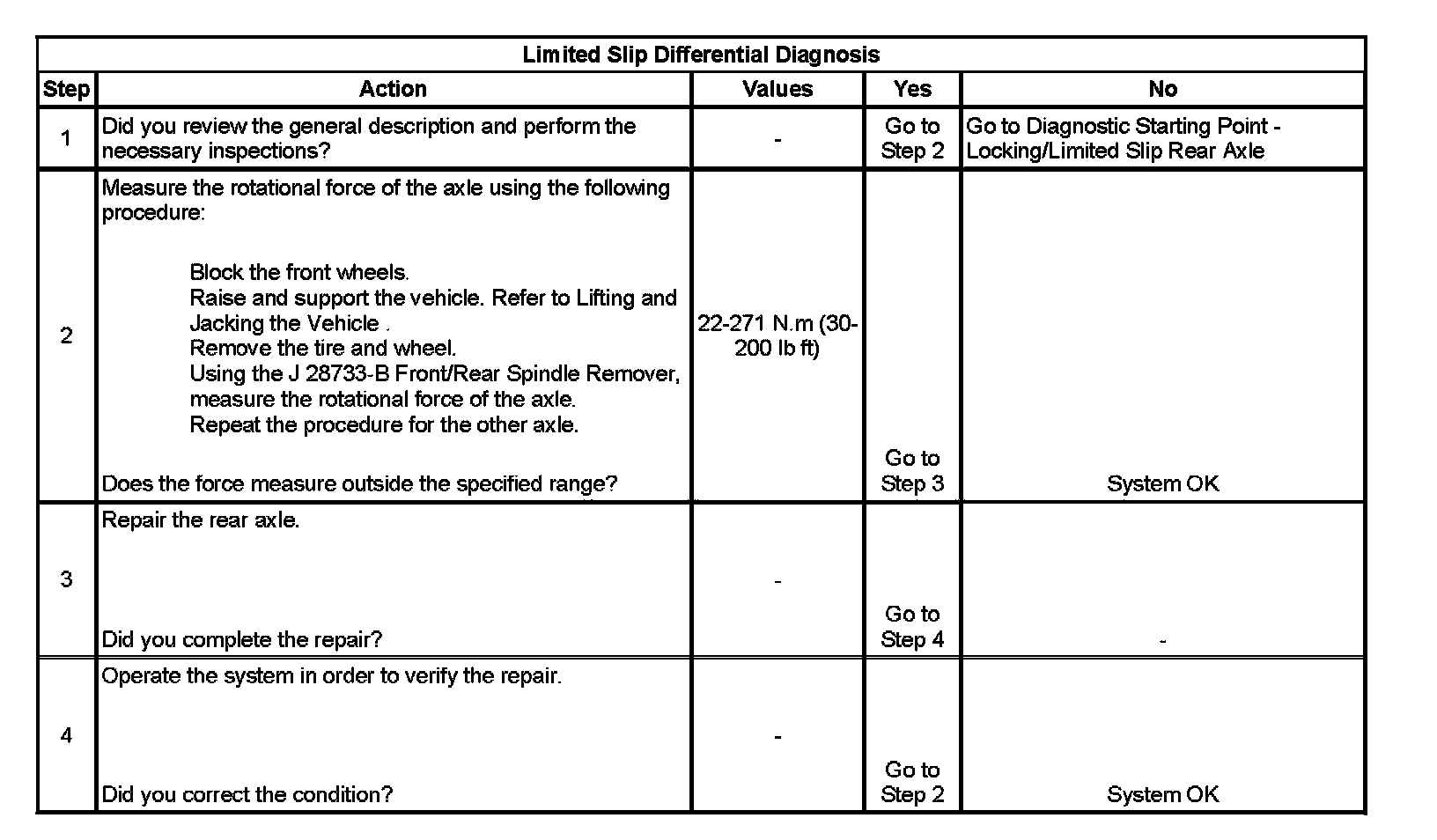

Limited Slip Differential Diagnosis



Limited Slip Differential Diagnosis

Step 1 - Step 4:
