Transmission Pressure Test Port: Service and Repair

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front closeout panel.

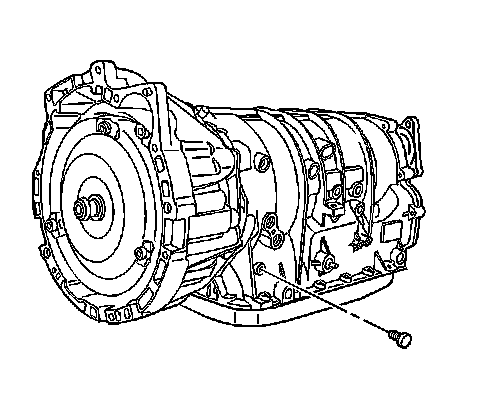

3. Remove and discard the oil pressure test plug.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install a NEW oil pressure test plug.

Tighten the oil pressure test plug to 11 N.m (97 lb in).

2. Check the transmission fluid level (fill if necessary). Refer to Transmission Fluid Checking.
3. Install the front closeout panel.
4. Lower the vehicle.
