Torque Converter Seal Removal



Torque Converter Seal Removal

Tools Required

J 45000 Seal Remover

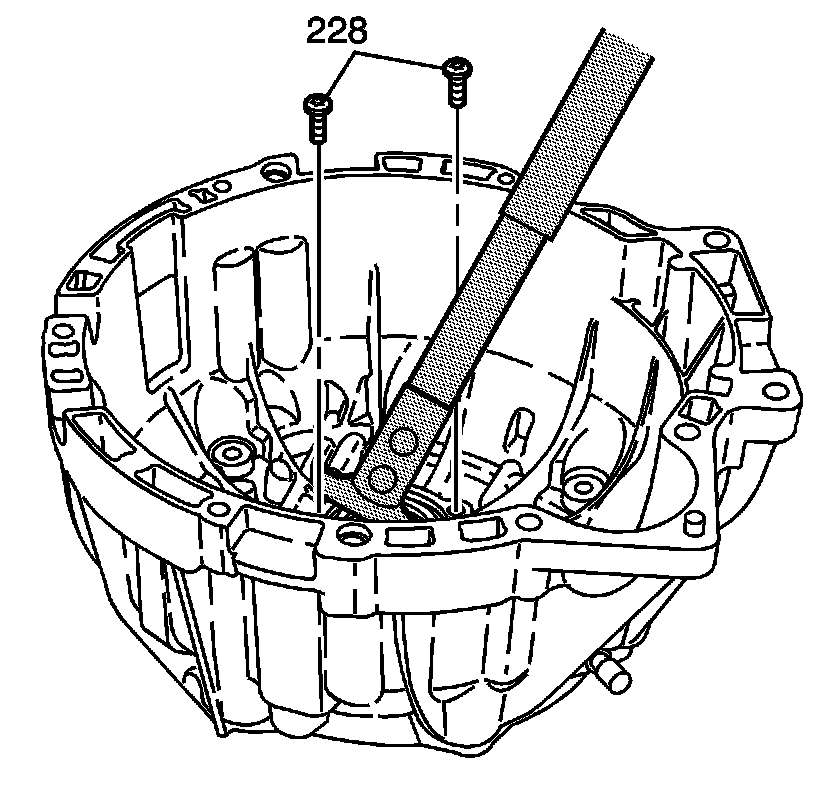

1. Remove the two bolts (228).
2. Remove the torque converter seal using J 45000.
