Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Steering Fluid Leaks

Power Steering Fluid Leaks



Power Steering Fluid Leaks

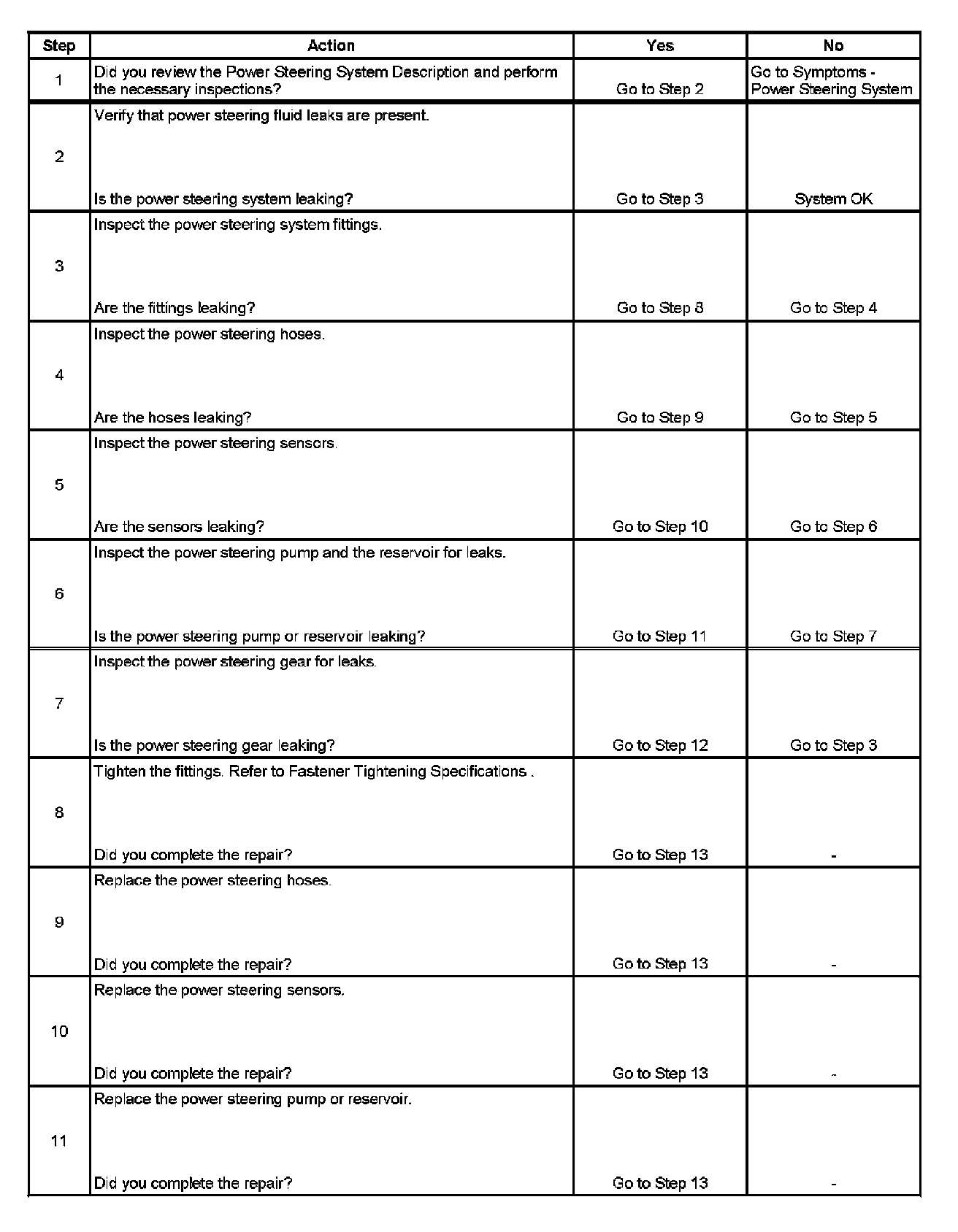

Step 1 - Step11:

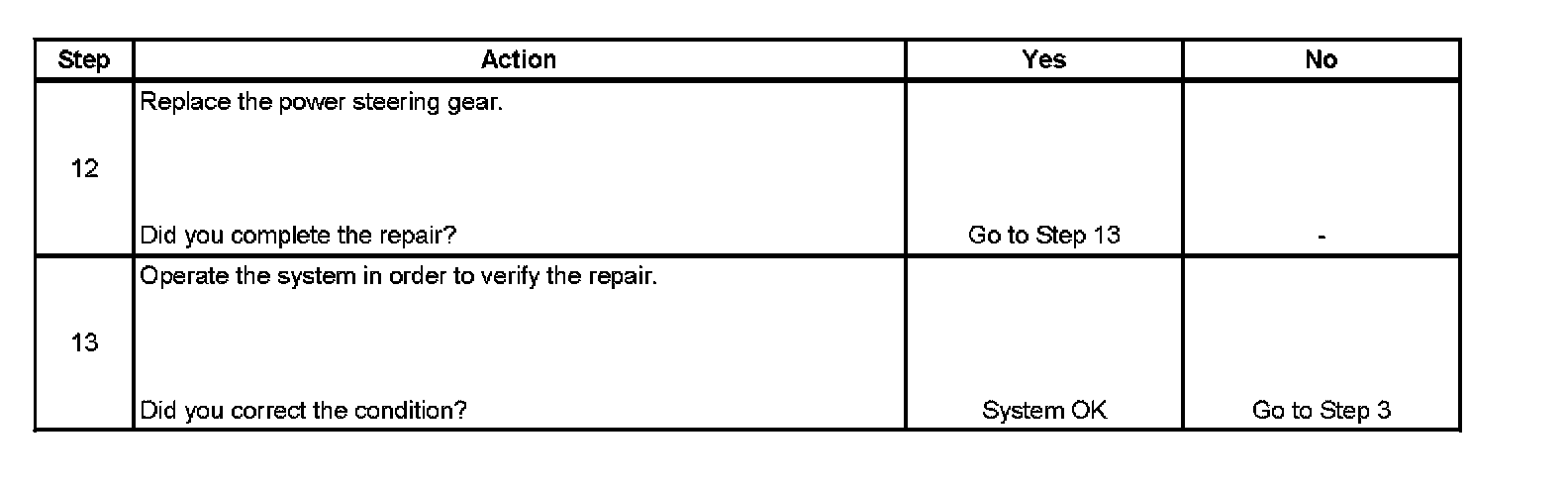

Step 12 - Step 13:
