Timing Cover





Front Cover to Block Bolt 25 N.m (18 lb ft)

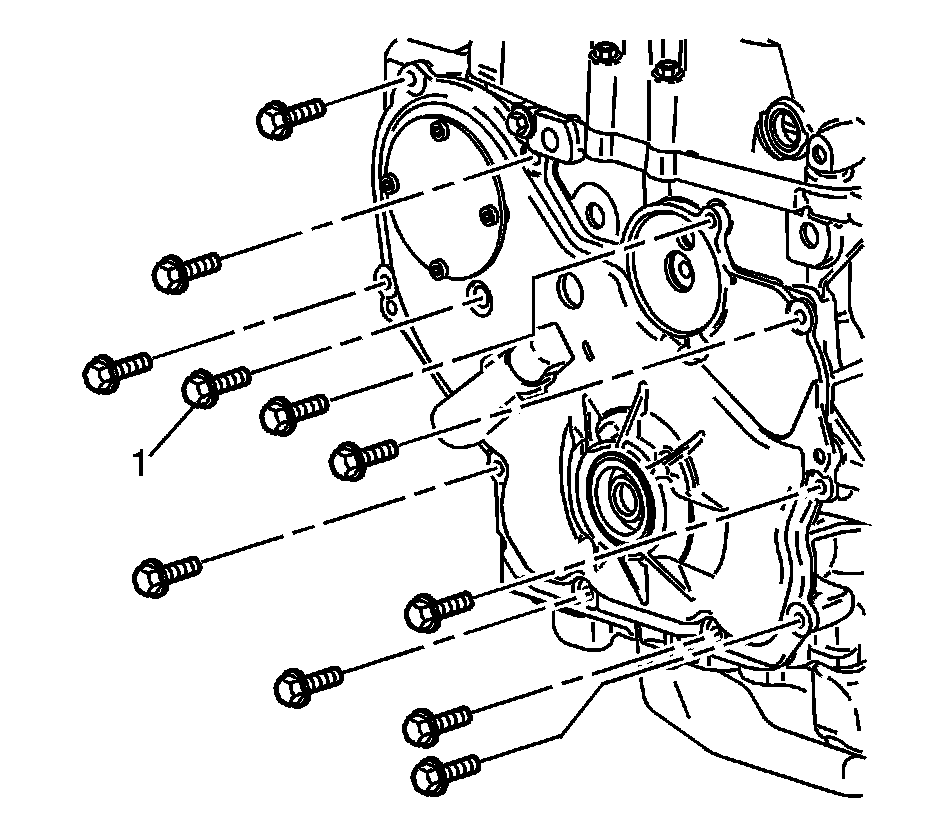

The center bolt (1) should be tightened last.
