Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Transmission Internal Mode Switch Logic

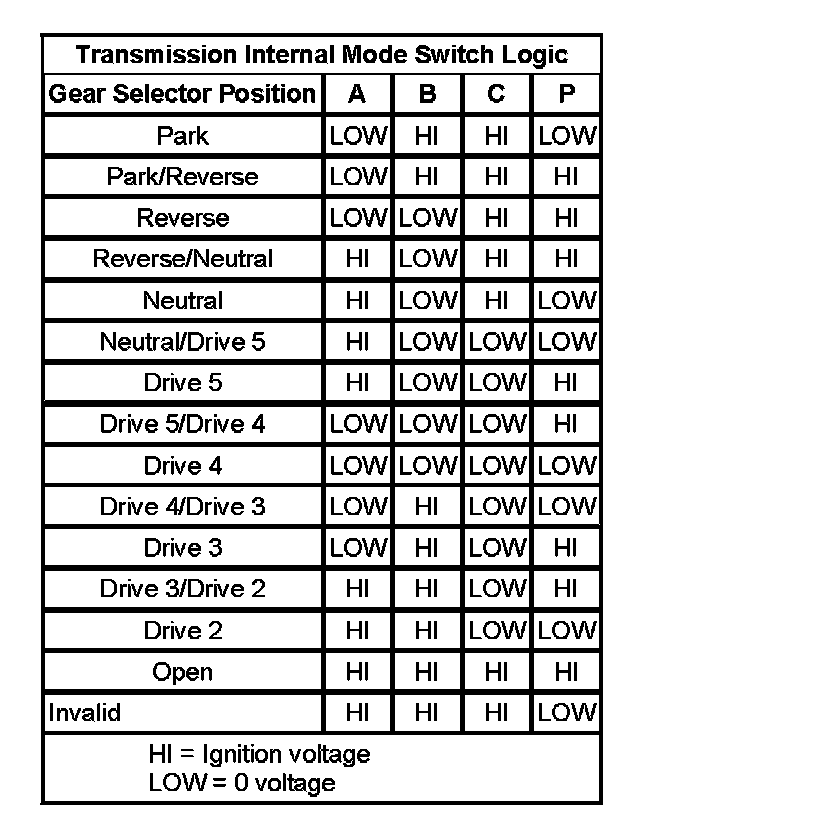

Transmission Internal Mode Switch Logic



Transmission Internal Mode Switch Logic

Transmission Internal Mode Switch Logic:
