Impact Sensor: Locations

SIR Component Views

Front Engine Compartment

Front Engine Compartment:

1 - Front Fascia
2 - Inflatable Restraint Front End Sensor - Right
3 - Electronic Brake Control Module (EBCM)
4 - Forward Lamp Harness
5 - Inflatable Restraint Front End Sensor - Left

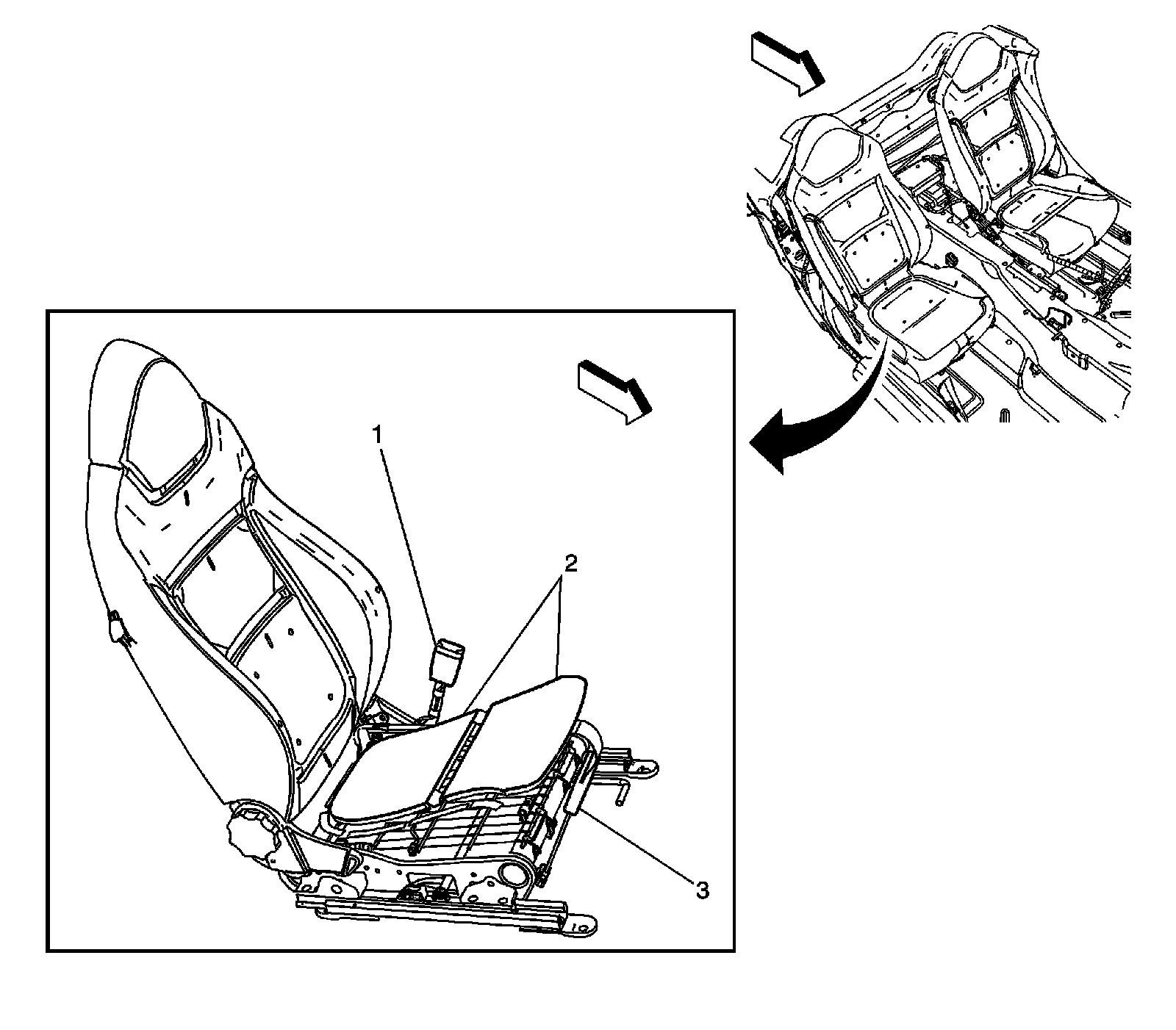

Under the Passenger Seat




1 - Seat Belt Switch - Passenger
2 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
3 - Inflatable Restraint Passenger Presence System (PPS) Module
