Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt Tensioner >> Diagrams

Seat Belt Tensioner: Diagrams

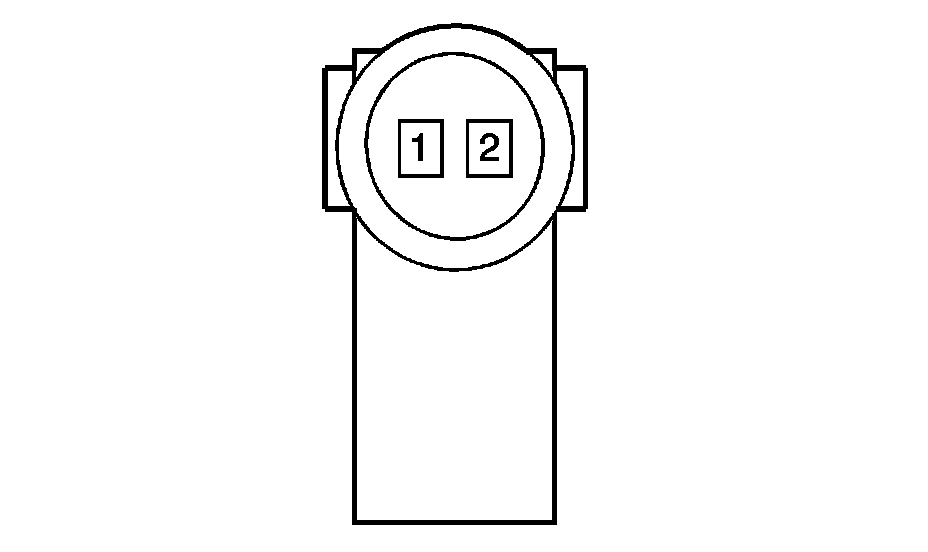

SIR Connector End Views

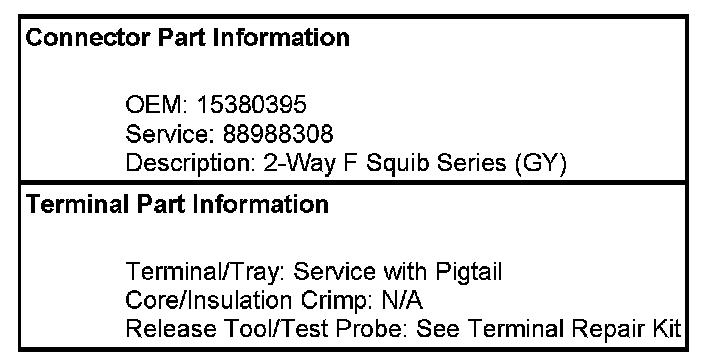

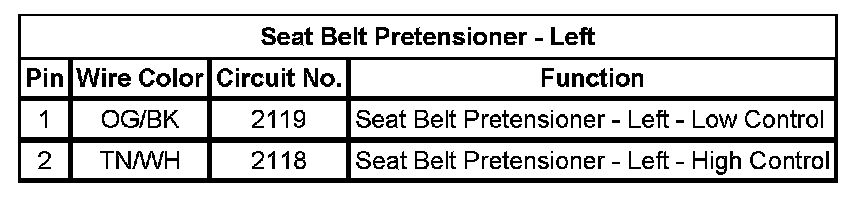

Seat Belt Pretensioner - Left

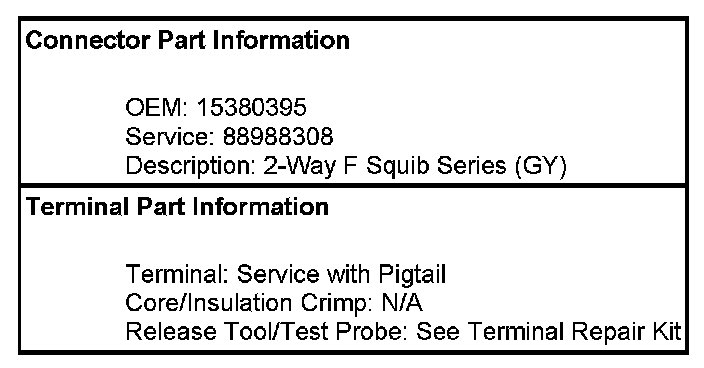

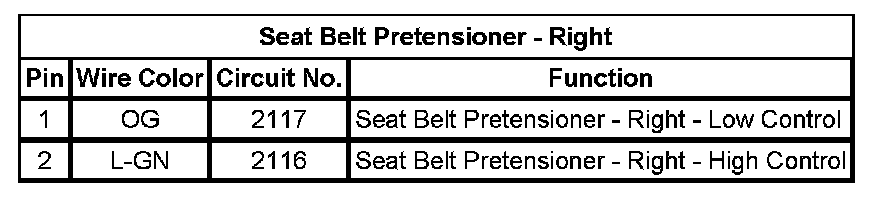

Seat Belt Pretensioner - Right
