Electronic Brake Control Module: Diagrams



Electronic Brake Controls Module (EBCM) (LNF)

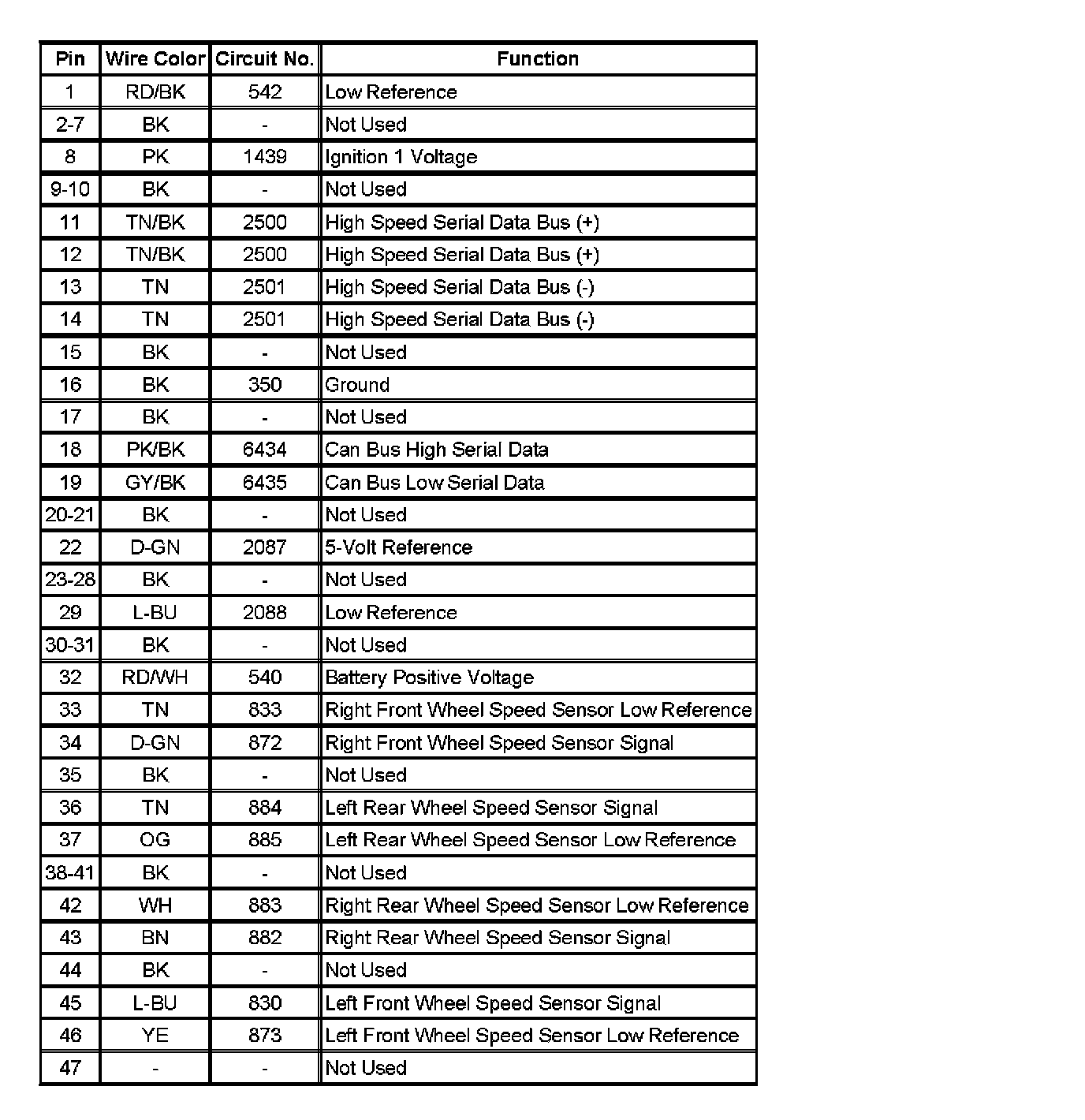

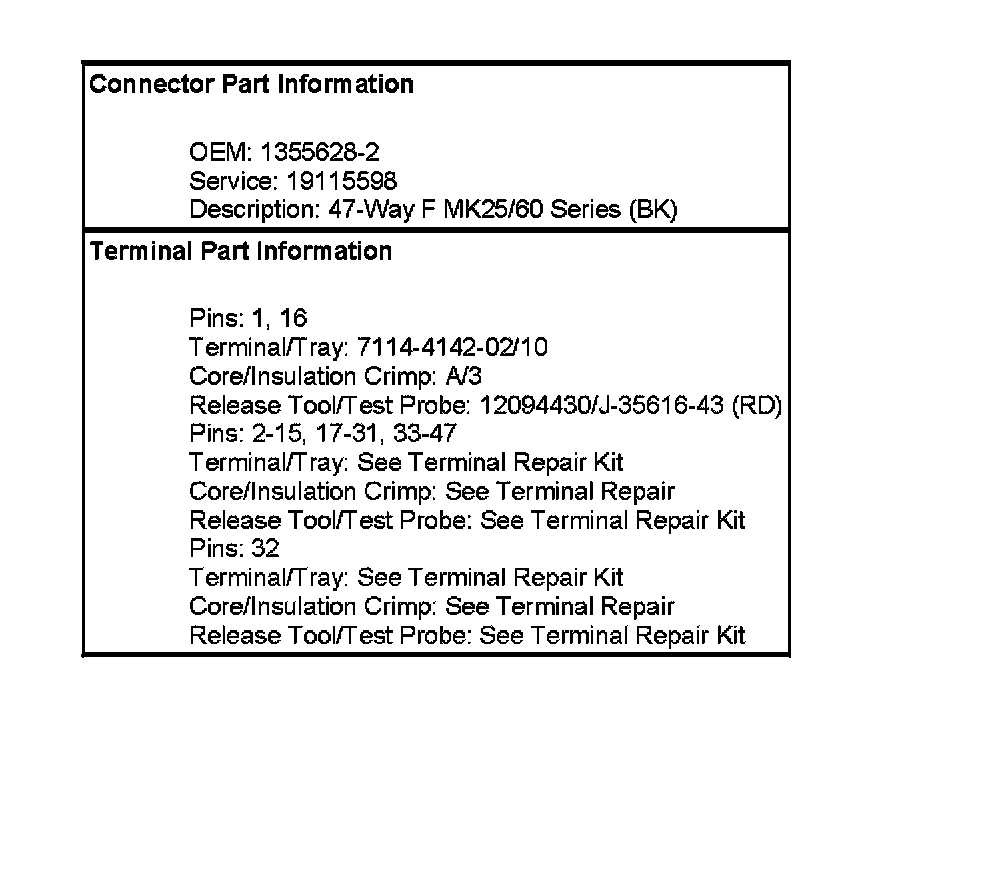

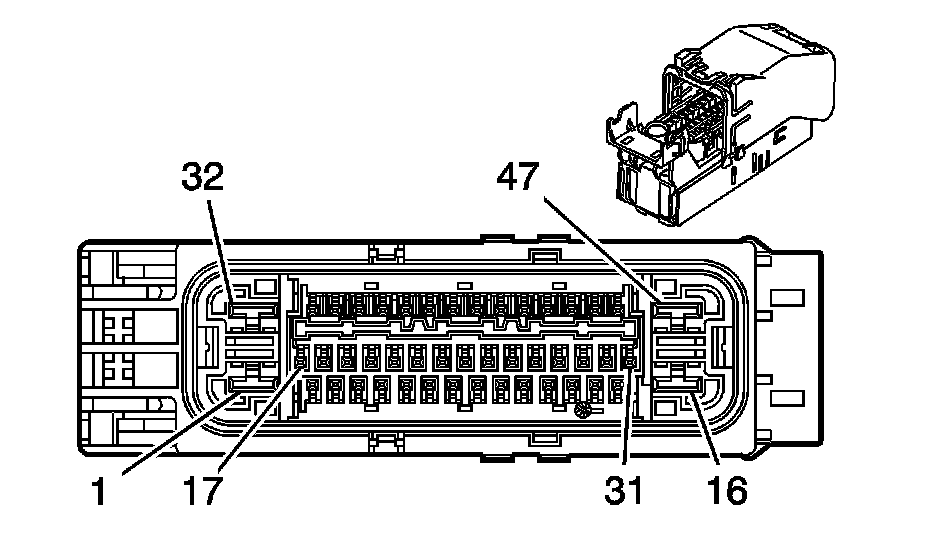

Electronic Brake Controls Module (EBCM) (LNF):
