Air Conditioning (A/C) Diagnostics - Pressure Zone A



Air Conditioning (A/C) Diagnostics - Pressure Zone A

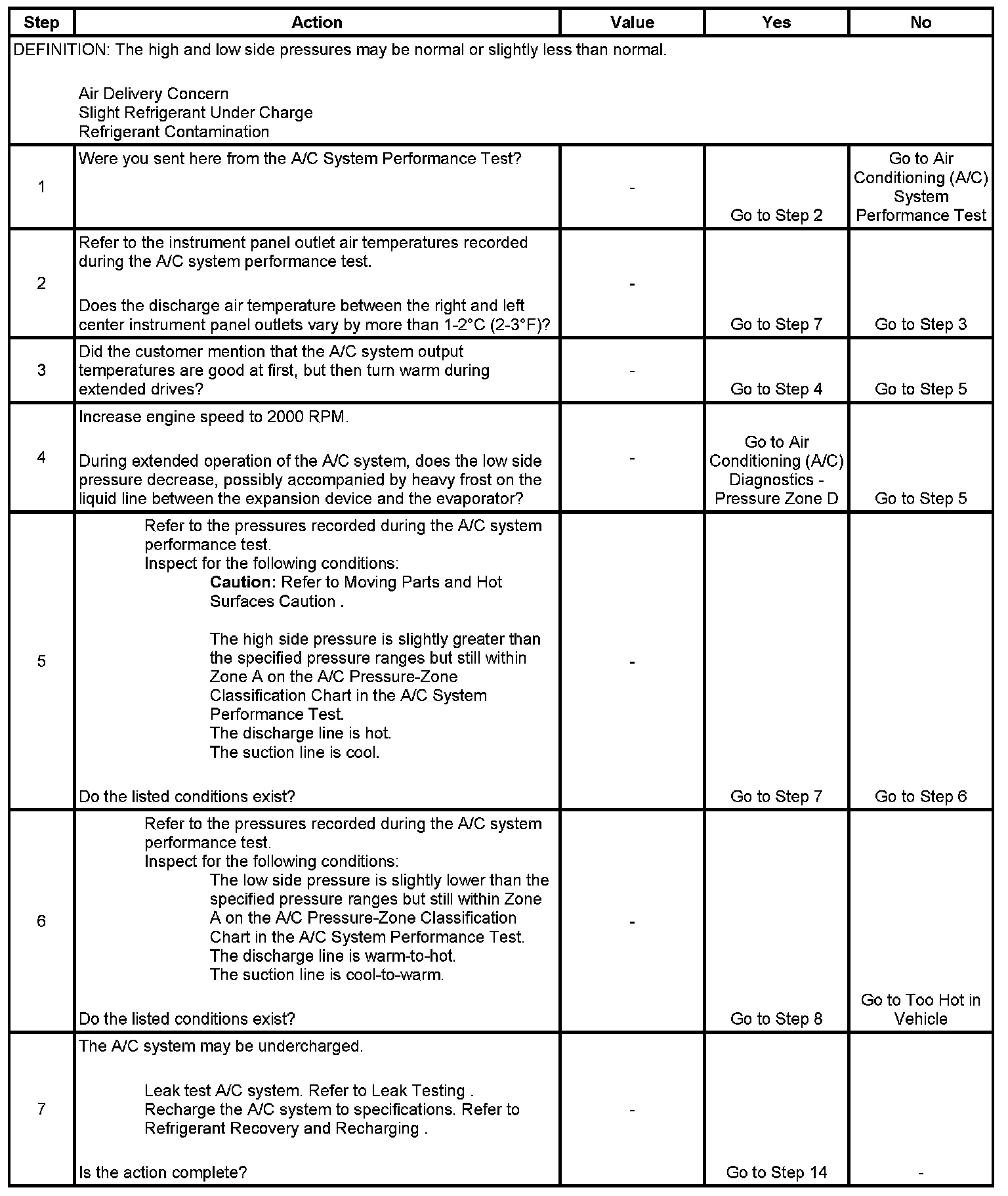

Step 1 - Step 7:

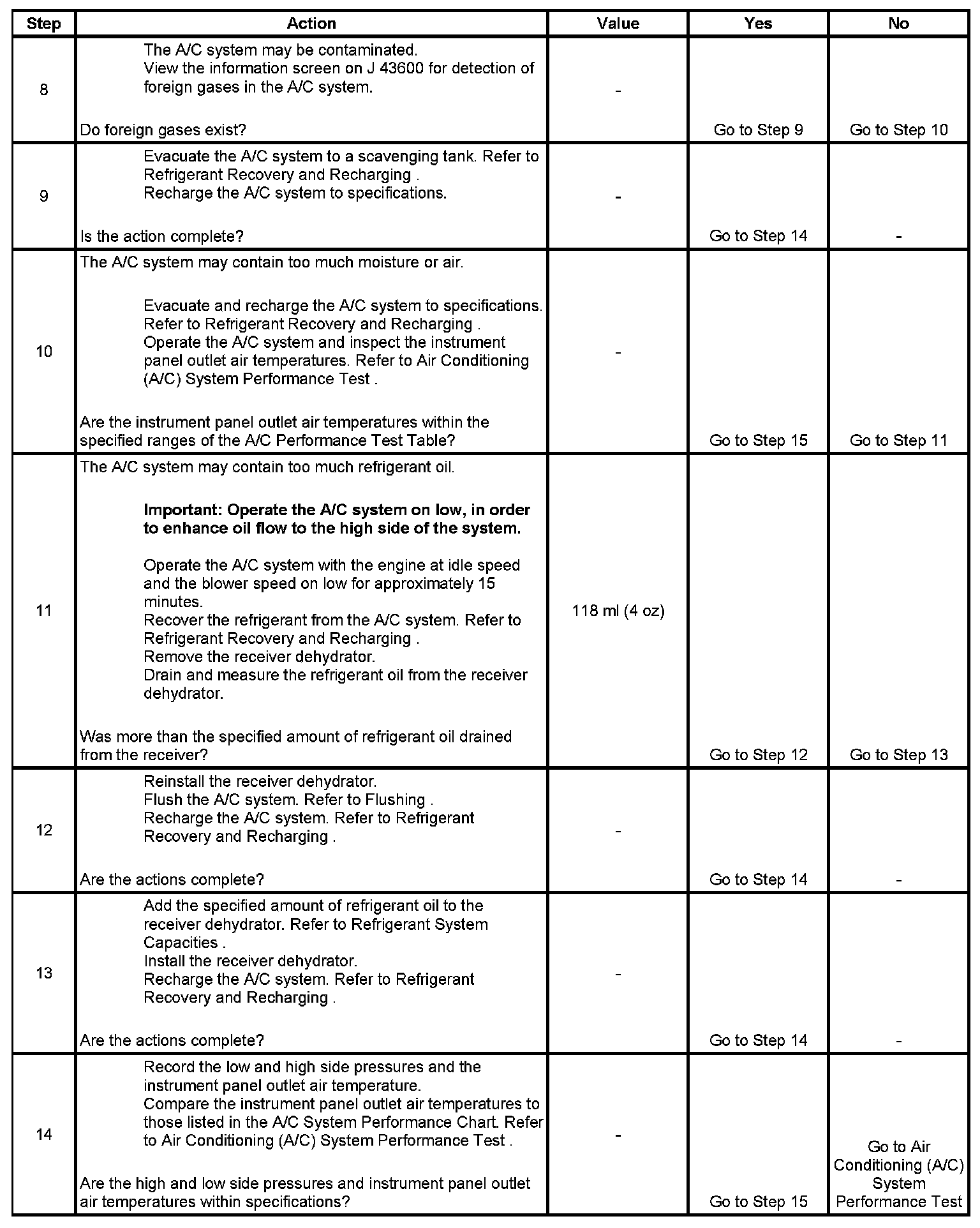

Step 8 - Step 14:




Step 15:
