Timing Cover: Service and Repair

Engine Front Cover Replacement

Removal Procedure




1. Remove the hood.
2. Remove the drive belt tensioner.
3. Remove the crankshaft balancer.

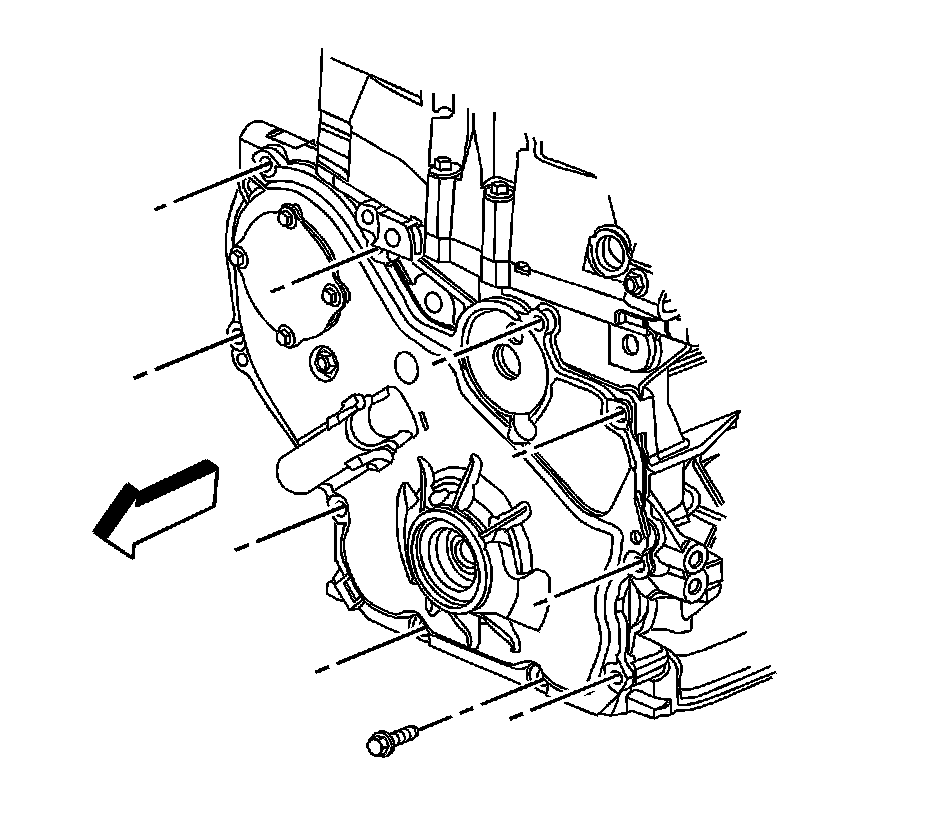

4. Remove the engine front cover bolts.

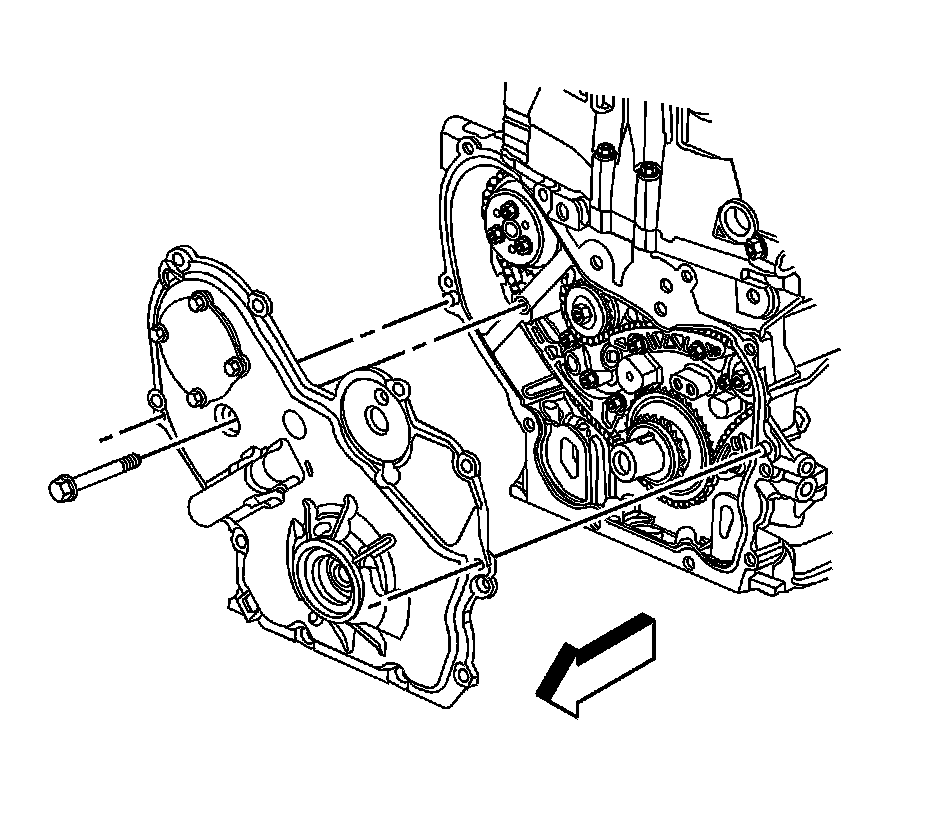

5. Remove the engine front cover to water pump bolt.

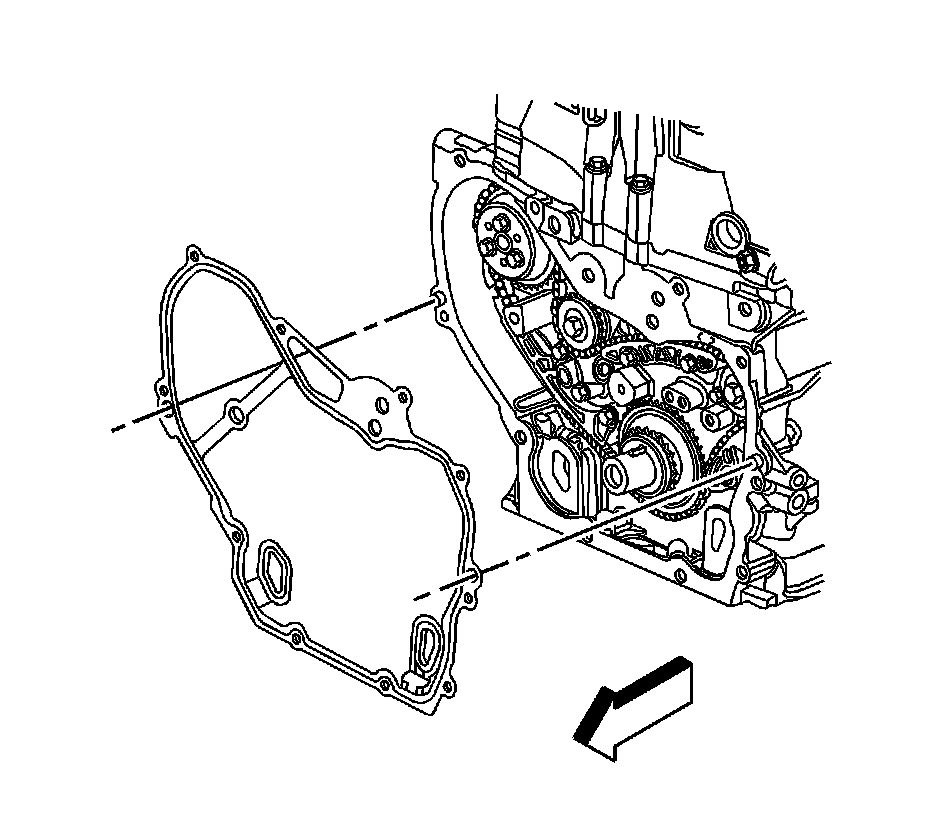

6. Remove and discard the engine front cover gasket.
7. Remove the crankshaft front cover oil seal with an appropriate tool.
8. Remove and discard the friction washer.

Installation Procedure




1. Install a NEW crankshaft front oil seal.
2. Install a NEW friction washer.
3. Position and install a NEW engine front cover gasket to the dowel pins.




4. Position and install the engine front cover.

Notice: Refer to Fastener Notice.

5. Install the engine front cover to water pump bolt.

Tighten the bolt to 25 N.m (18 lb ft).




6. Install the engine front cover bolts.

Tighten the bolts to 25 N.m (18 lb ft).

7. Install the crankshaft balancer.
8. Install the drive belt tensioner.
9. Install the hood.
