69. Engine Flywheel Installation

Engine Flywheel Installation

Tools Required

J 45059 Angle Meter

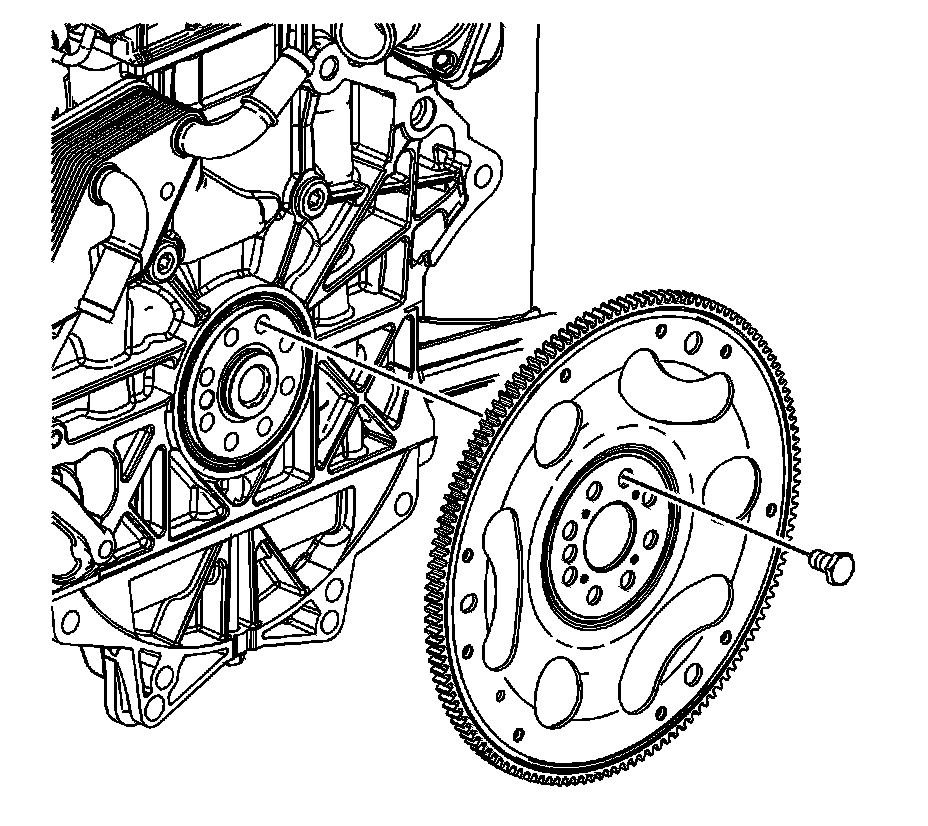

1. Install the flywheel.
2. Install the NEW bolts.

Notice: Refer to Fastener Notice.

3. Hold the crankshaft.

Tighten the flywheel bolts to 53 N.m (39 lb ft), plus 25 degrees, using the J 45059.
