67. Engine Front Cover and Oil Pump Installation

Engine Front Cover and Oil Pump Installation




1. Install a new friction washer.

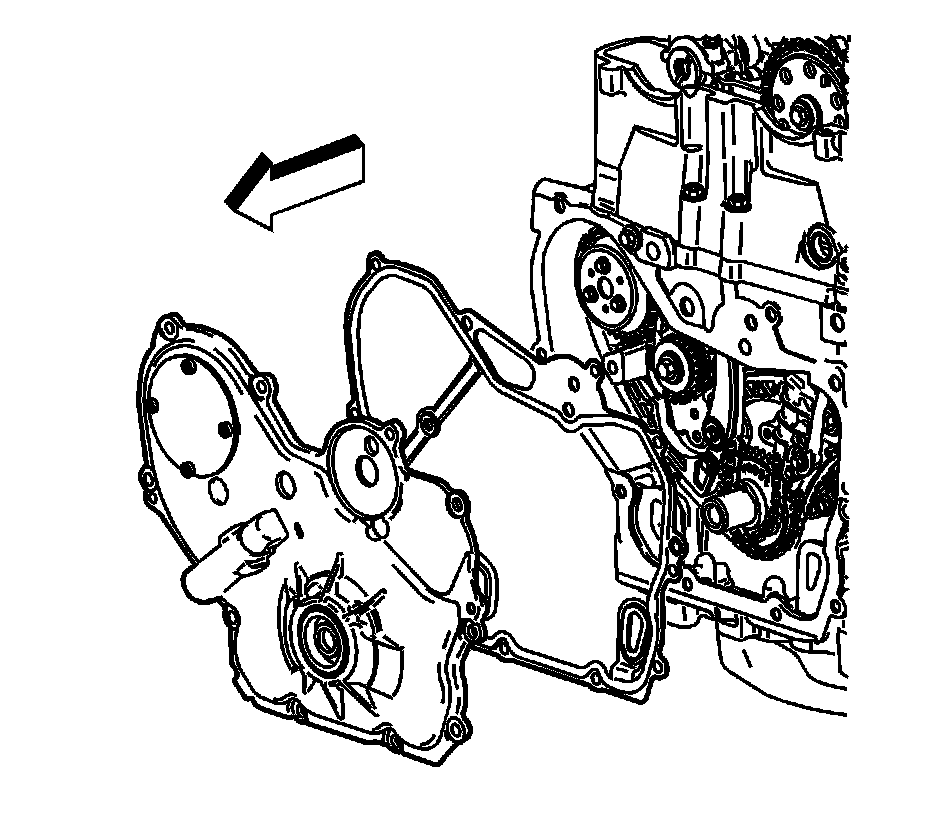

2. Install the engine front cover with a new gasket.





Notice: Refer to Fastener Notice.

Important: The center bolt (1) should be tightened last.

3. Install the engine front cover bolts.

Tighten the engine front cover bolts to 25 N.m (18 lb ft).

4. Install the long water pump bolt.

Tighten the water pump bolt to 25 N.m (18 lb ft).




5. Install the accessory drive belt tensioner.
6. Install the accessory drive belt tensioner bolt.

Tighten the bolt to 45 N.m (33 lb ft).
