58. Cylinder Head Installation

Cylinder Head Installation

Tools Required

J 45059 Angle Meter





Important: Do not use any sealing material.

1. Install the cylinder head gasket to the block.
2. Install the cylinder head. Ensure the number 1 cylinder is at top dead center (TDC). The key on the crankshaft should be on top in the 12 o'clock position.





Important: Always use NEW cylinder head bolts.

Notice: Refer to Fastener Notice.

3. Install the cylinder head bolts.
^ Tighten the bolts in sequence to 30 N.m (22 lb ft).
^ Tighten the bolts an additional 155 degrees in sequence using the J 45059.

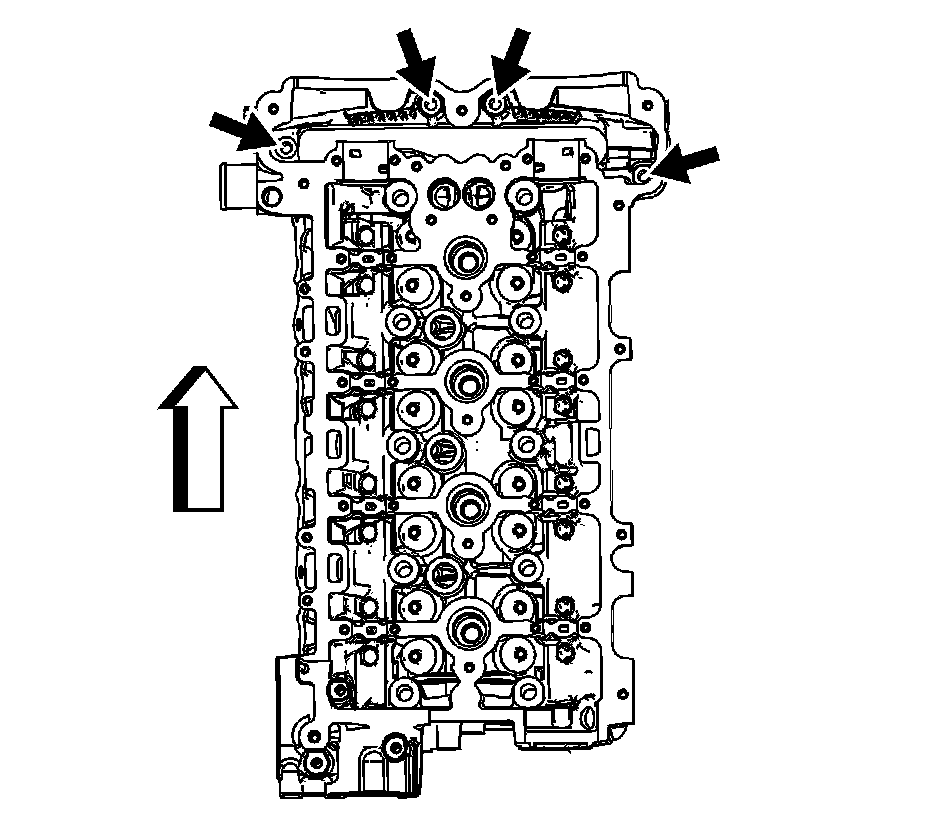

4. Install the front cylinder head bolts.

Tighten the cylinder head bolts to 30 N.m (22 lb ft).
