Engine Mount Bracket Replacement - Right

Engine Mount Bracket Replacement - Right Side

Removal Procedure




1. Remove the right engine mount.

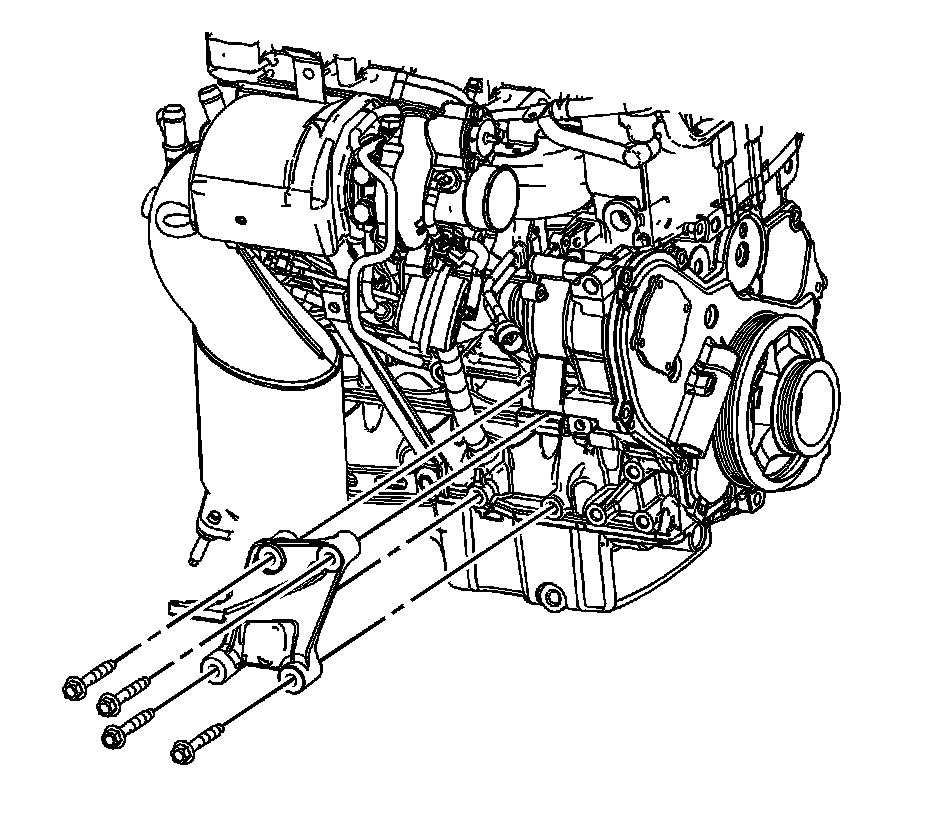

2. Remove the engine mount bracket bolts and bracket.

Installation Procedure




1. Position the right engine mount bracket to the engine block.
2. Install the engine mount bracket bolts until snug.

Notice: Refer to Fastener Notice.

3. Tighten the right engine mount bracket bolts in the following sequence.

Tighten the bolts to 55 N.m (41 lb ft).

1. Lower rear
2. Upper front
3. Lower front
4. Upper rear
4. Install the right engine mount.
