Valve Cover: Service and Repair

Camshaft Cover Replacement

Removal Procedure




1. Remove the intake manifold cover.

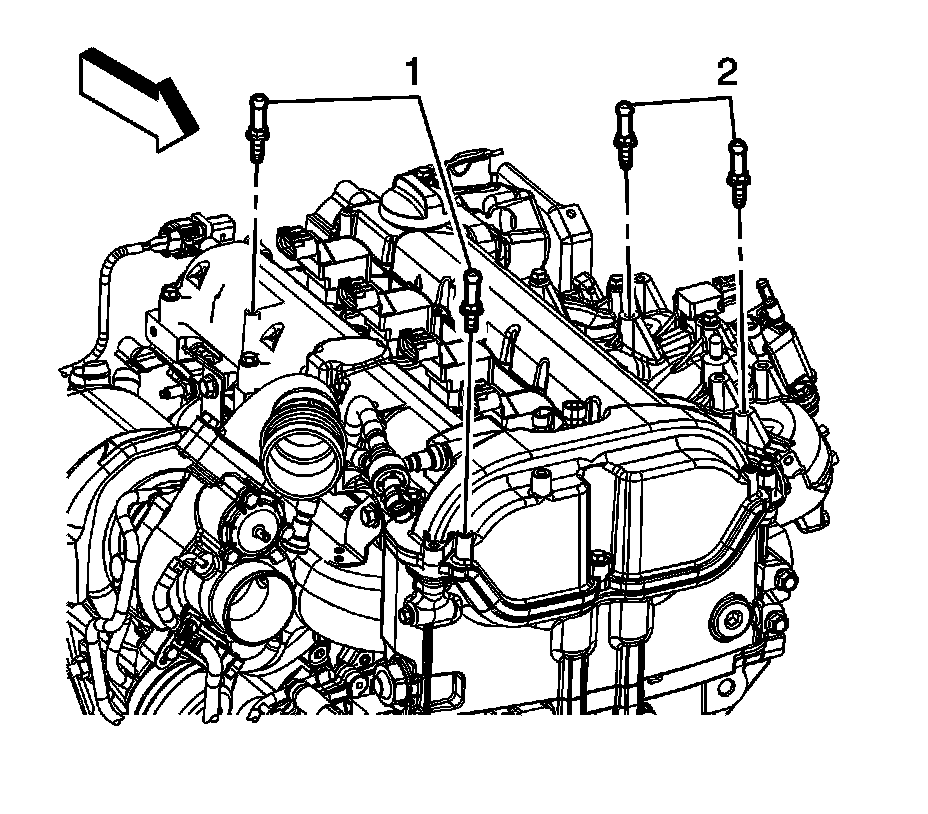

2. Remove the intake manifold cover studs (1).




3. Remove the air cleaner outlet.
4. Disconnect the engine wiring harness intake (2) and exhaust (1) electrical connectors from the camshaft position actuator solenoid valves.




5. Remove the engine wiring harness clip (1) from the camshaft cover.




6. Remove the engine wiring harness clips (1, 2) from the camshaft cover.
7. Disconnect the engine wiring harness electrical connector from the evaporative emission (EVAP) canister purge solenoid valve.
8. Remove the ignition coils.




9. Remove the heated oxygen sensor (HO2S) electrical connector clip (2) from the camshaft cover.




10. Remove the positive crankcase ventilation (PCV) fitting bolt from the turbocharger. Reposition the PCV pipe (with fitting) out of the way.





Important: The PCV hose should NOT be disconnected from the camshaft cover as damage to the hose connection will result.

11. Remove the camshaft cover bolts.

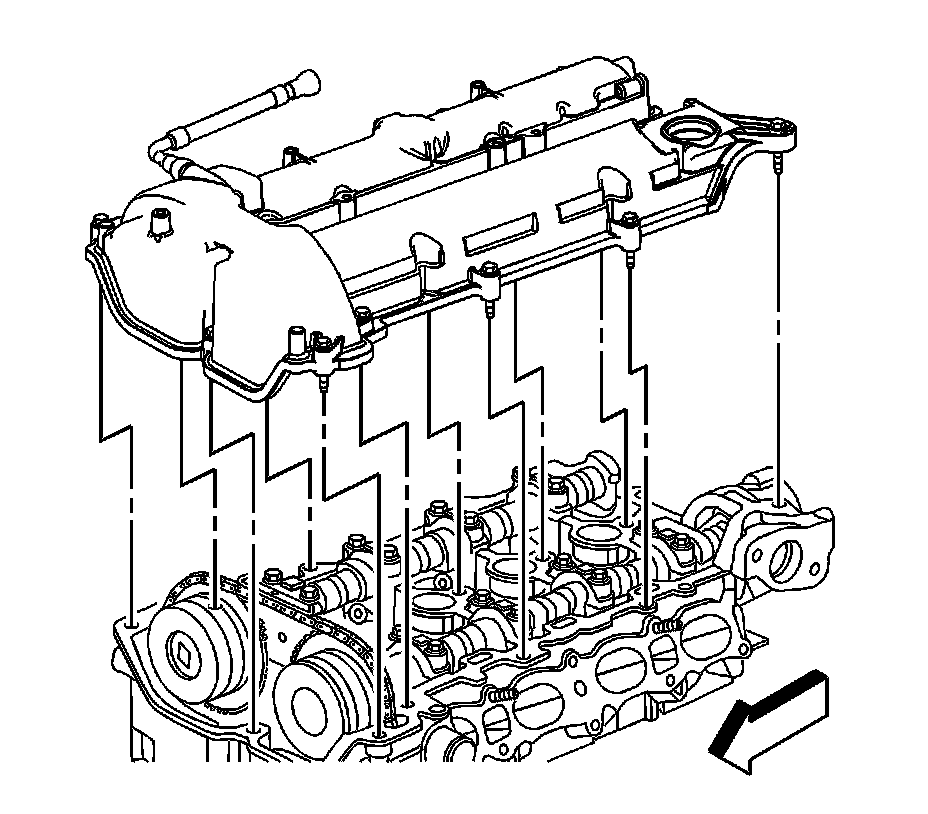

12. Remove the camshaft cover.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the camshaft cover and bolts.

Tighten the bolts to 10 N.m (89 lb in).




2. Install a NEW O-ring seal to the PCV fitting.
3. Position the PCV pipe (with fitting) and install the PCV fitting bolt to the turbocharger.

Tighten the bolt to 10 N.m (89 lb in).




4. Install the HO2S electrical connector clip (2) to the camshaft cover.




5. Install the ignition coils.
6. Disconnect the engine wiring harness electrical connector from the evaporative emission (EVAP) canister purge solenoid valve.
7. Install the engine harness clips (1, 2) to the camshaft cover.




8. Install the engine wiring harness clip (1) to the camshaft cover.




9. Connect the engine wiring harness intake (2) and exhaust (1) electrical connectors to the camshaft position actuator solenoid valves.
10. Install the air cleaner outlet.




11. Install the intake manifold cover studs (1).

Tighten the studs to 9 N.m (80 lb in).

12. Install the intake manifold cover.
