Harmonic Balancer - Crankshaft Pulley: Service and Repair

Crankshaft Balancer Replacement

Tools Required

* J 43653 Flywheel Holding Tool
* J 45059 Angle Meter

Removal Procedure




1. Remove the engine drive belt.
2. Remove the starter motor.
3. Raise and suitably support the vehicle.

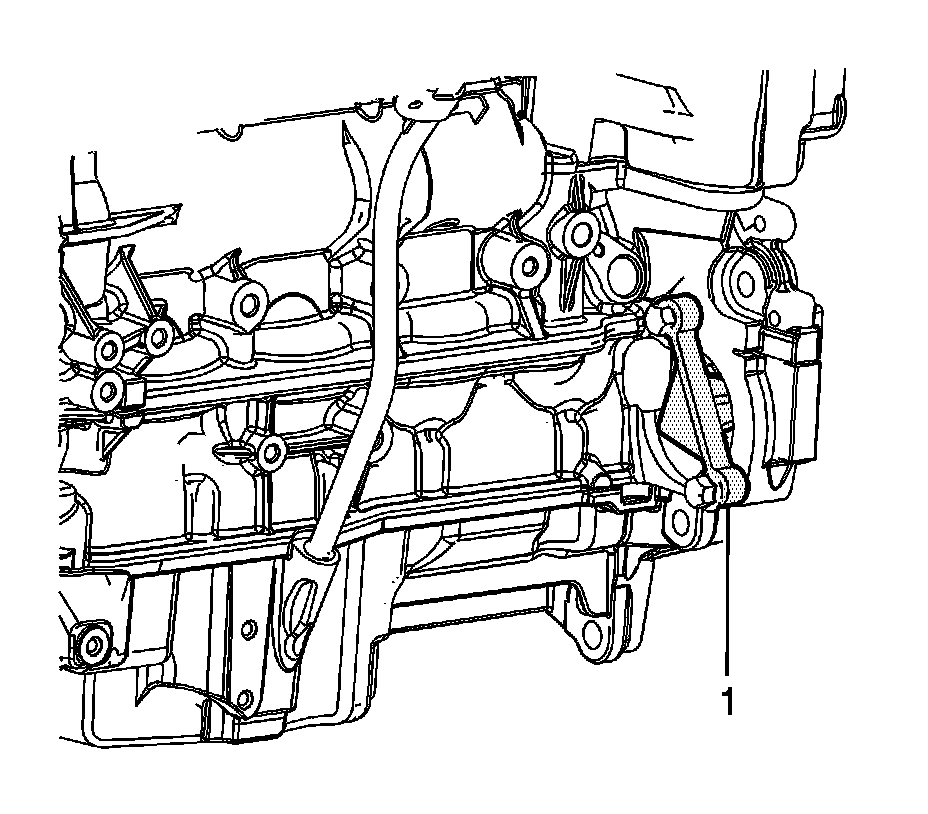

4. Install the J 43653 (1) to the engine block, in order to hold the flywheel.




5. Remove the crankshaft balancer bolt. Discard the bolt.
6. Remove the balancer using a universal removal tool.

Installation Procedure





Notice: Ensure both components are aligned correctly or serious engine damage will occur.

1. Install the crankshaft balancer onto the crankshaft indexing keyway. Use care to properly align the keyway and the flats on the balancer with the oil pump drive.
2. Install the crankshaft balancer using a universal balancer installer.
Notice: Refer to Fastener Notice.

Important: Always install a NEW crankshaft balancer bolt and washer.

3. Install a NEW crankshaft balancer bolt. Prevent the crankshaft from rotating when tightening the bolt.

Tighten the bolt to 100 N.m (74 lb ft) plus an additional 125 degrees using the J 45059.




4. Remove the J 43653 (1) from the engine block.
5. Lower the vehicle.
6. Install the starter motor.
7. Install the engine drive belt.
