Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Overheating

Engine Overheating

Engine Overheating

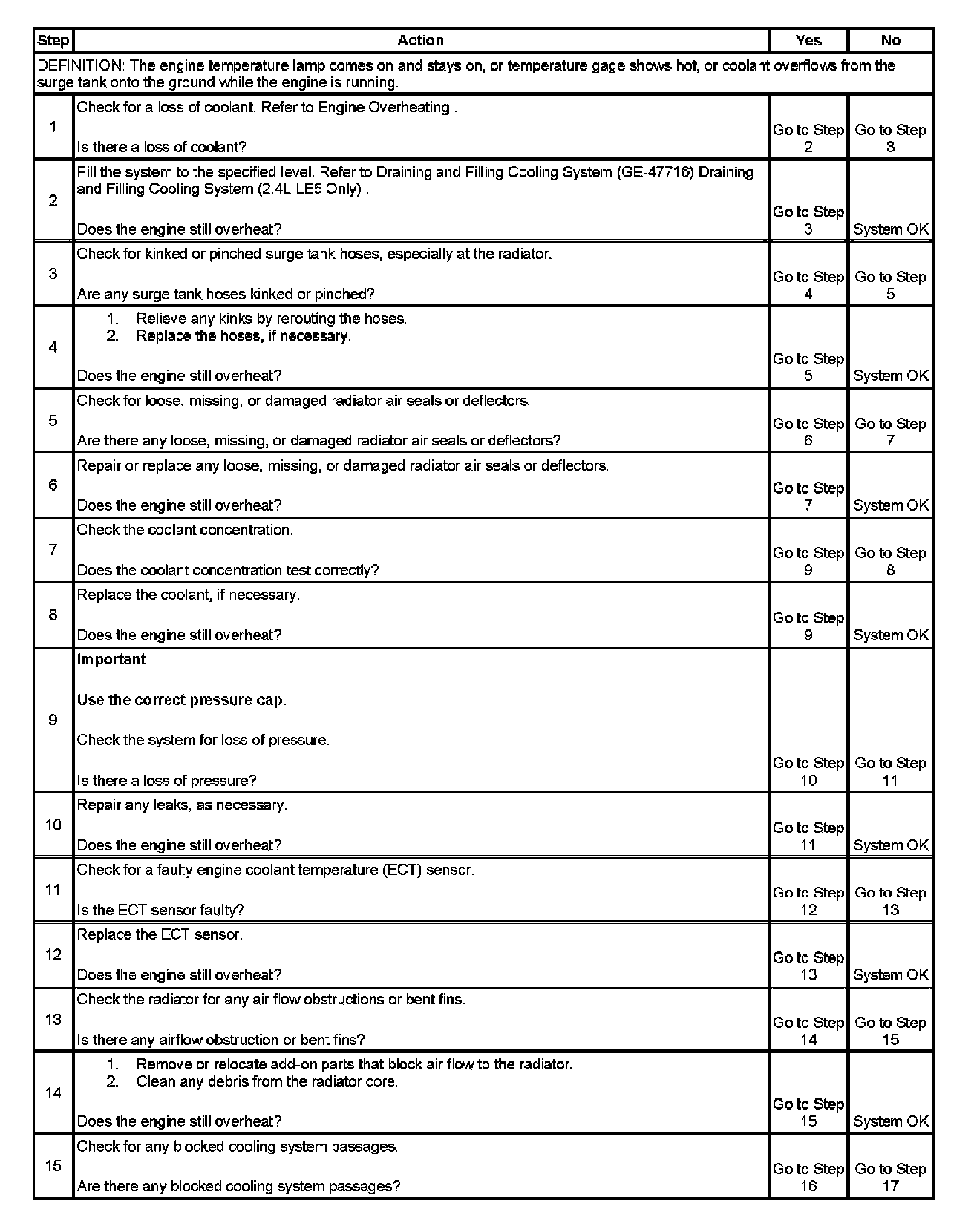

Step 1 - Step 15:

Step 16 - Step 22:
